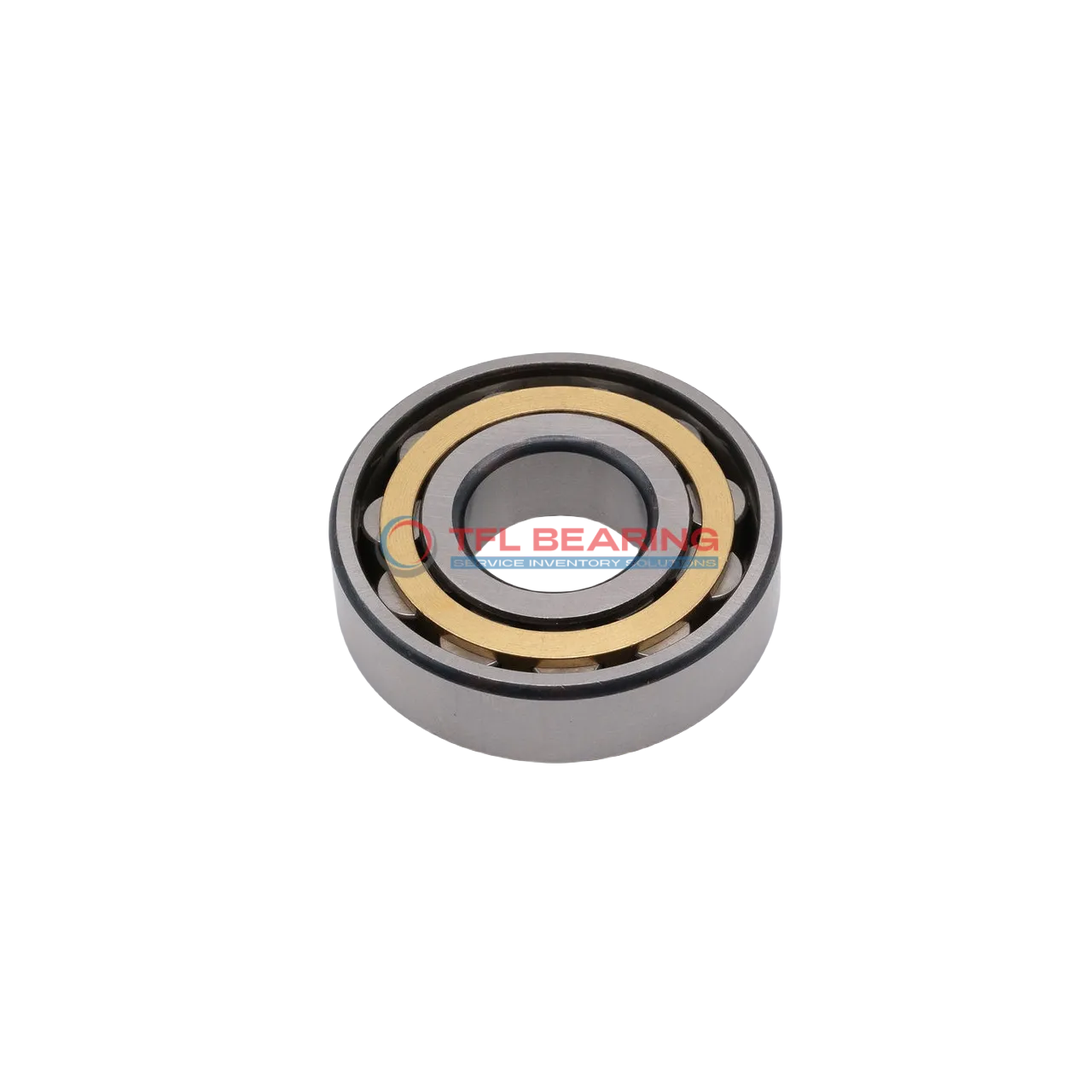

Single Row Cylindrical Roller Bearings With Inner Ring N 28/710 ECMB

Single Row Cylindrical Roller Bearings With Inner Ring N 28/710 ECMB

The N 28/710 ECMB is a single-row cylindrical roller bearing with a large 710mm bore and 870mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 436500 lbf and runs smoothly at speeds up to 1000 RPM.

Its brass cage keeps rollers centred for even load distribution, while the open design allows easy lubrication with grease or oil. The bearing operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial gearboxes or large machinery where high radial loads are common.

Weighing 127kg, it’s built for durability in demanding environments. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number N 28/710 ECMB
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 710 mm
  • Bore Dia Tolerance -0.075mm to 0
  • Outer Dia 870 mm
  • Outer Dia Tolerance -0.10mm to 0
  • Width 95 mm
  • Width Tolerance -0.75mm to 0
  • Shoulder Dia Of Inner Ring 767 mm
  • Raceway Diameter Of Outer Ring(E) 831 mm
  • Chamfer Dimension r1,2(min.) 4 mm
  • Permissible Axial Displacement(max.) 7.5 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass cage, roller centred
  • Dynamic Radial Load 436500 lbf
  • Static Radial Load 1125000 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 1000 rpm
  • Weight 127 kg
Single Row Cylindrical Roller Bearings With Inner Ring N 28/710 ECMB dimension drawing
Download DWG Download PDF

Features

Performance Features of N 28/710 ECMB Bearing

N 28/710 ECMB Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 436,500 lbf, ensuring reliable performance in heavy-duty applications.

The brass cage keeps the rollers centred, reducing friction and extending service life.
With a maximum speed of 1,000 rpm, it balances durability and efficiency in demanding conditions.

N 28/710 ECMB Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.

The precise tolerances of N 28/710 ECMB Bearing ensure consistent performance.
Its robust construction makes it suitable for applications requiring high radial load capacity.

Application

Industrial Uses of N 28/710 ECMB Bearing
N 28/710 ECMB Bearing is commonly used in heavy industrial machinery, such as large gearboxes and rolling mills, where its high load capacity handles both radial and axial forces effectively. The brass cage design ensures smooth operation even under demanding conditions.

In wind turbine applications, N 28/710 ECMB Bearing supports the main shaft, providing reliable performance with its chrome steel construction. Its large bore size and metric measurements make it suitable for European-designed equipment.

For mining equipment, N 28/710 ECMB Bearing’s robust design withstands harsh environments, ensuring durability in crushers and conveyors. The open seal type allows for easy lubrication, extending service life in dusty conditions.

Where Is N 28/710 ECMB Bearing Used?
N 28/710 ECMB Bearing finds its place in paper manufacturing machines, where precision and strength are crucial for consistent production. The combined load capability makes it versatile for various sections of the machinery.

In steel processing plants, N 28/710 ECMB Bearing handles the heavy loads of rolling and pressing equipment. Its temperature tolerance ensures stable performance even in high-heat environments.

Built for Heavy-Duty Use: N 28/710 ECMB Bearing
N 28/710 ECMB Bearing is ideal for large pumps and compressors, where its single-row cylindrical design offers efficient load distribution. The grease or oil lubrication options provide flexibility for different operational needs.

In marine applications, N 28/710 ECMB Bearing’s corrosion-resistant materials ensure reliability in saltwater environments. The high dynamic radial load capacity makes it suitable for propeller shafts and other critical components.

Automotive vs Aerospace: Applications of N 28/710 ECMB Bearing
While N 28/710 ECMB Bearing is too large for most automotive uses, it excels in aerospace ground support equipment like aircraft tow tractors. Its precision engineering meets the high standards required in these applications.

In railway systems, N 28/710 ECMB Bearing supports heavy freight car axles, where its durability reduces maintenance needs. The metric sizing ensures compatibility with international rail standards.
