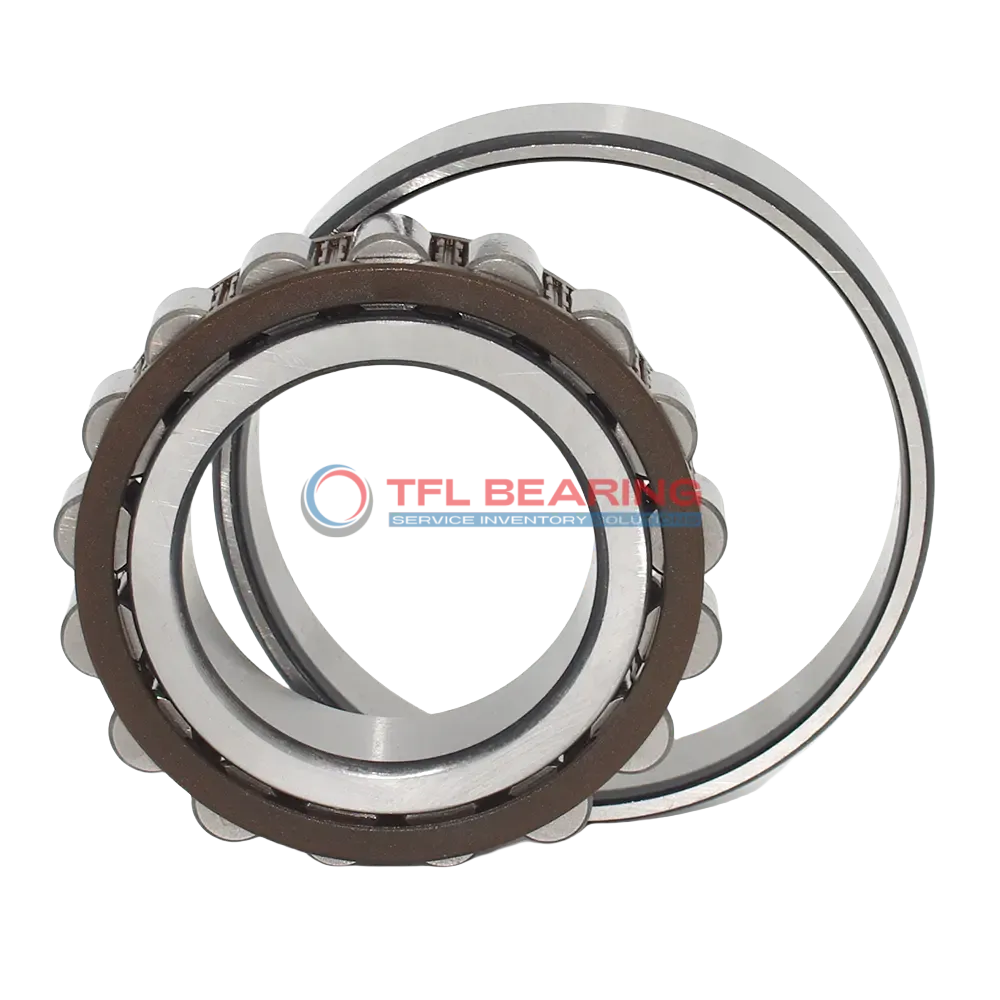

Single Row Cylindrical Roller Bearings With Inner Ring N 213 ECP

Single Row Cylindrical Roller Bearings With Inner Ring N 213 ECP

The N 213 ECP is a single row cylindrical roller bearing with a 65mm bore and 120mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 27450 lbf and reaches speeds of 7000 RPM.

Its open design allows for easy lubrication with grease or oil, while the PA66 cage ensures smooth operation. The bearing performs reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for industrial machinery or gear systems where combined loads are present.

Weighing 1.03kg, it offers a balance of strength and durability. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number N 213 ECP
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.15mm to 0
  • Outer Dia 120 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 23 mm
  • Width Tolerance -0.15mm to 0
  • Shoulder Dia Of Inner Ring 84.4 mm
  • Raceway Diameter Of Outer Ring(E) 108.5 mm
  • Chamfer Dimension r1,2(min.) 1.5 mm
  • Chamfer Dimension r3,4(min.) 1.5 mm
  • Permissible Axial Displacement(max.) 1.4 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material PA66 cage, roller centred
  • Dynamic Radial Load 27450 lbf
  • Static Radial Load 26550 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 7000 rpm
  • Weight 1.03 kg
Single Row Cylindrical Roller Bearings With Inner Ring N 213 ECP dimension drawing
Download DWG Download PDF

Features

Performance Features of N 213 ECP Bearing

N 213 ECP Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 27450 lbf, ensuring reliable performance in various applications.
The PA66 cage keeps the rollers centred, reducing friction and extending service life.
With a maximum speed of 7000 rpm, it balances durability and efficiency.

Application

Industrial Uses of N 213 ECP Bearing
N 213 ECP Bearing is commonly used in heavy machinery like industrial gearboxes and pumps, where its cylindrical roller design handles combined loads efficiently. The open seal type allows for easy lubrication, making it suitable for high-speed operations up to 7000 rpm.

Where Is N 213 ECP Bearing Used?
You’ll often find N 213 ECP Bearing in automotive transmissions, where its chrome steel construction ensures durability under radial and axial loads. Its precise dimensions (65 mm x 120 mm x 23 mm) make it a reliable fit for European and Asian vehicle models.

Built for Heavy-Duty Use: N 213 ECP Bearing
N 213 ECP Bearing excels in conveyor systems, thanks to its PA66 cage that reduces friction and wear. The grease or oil lubrication options provide flexibility for different operating conditions, from -30° to 110 °C.

Automotive vs Industrial: Applications of N 213 ECP Bearing
In automotive applications, N 213 ECP Bearing supports clutch assemblies, while in industrial settings, it’s ideal for printing presses. Its dynamic radial load capacity of 27450 lbf ensures long-lasting performance in both scenarios.

Perfect Fit for Automation: N 213 ECP Bearing
N 213 ECP Bearing is a great choice for robotic arms and automated assembly lines, where its single-row design offers precision and stability. The metric sizing ensures compatibility with a wide range of machinery components.
