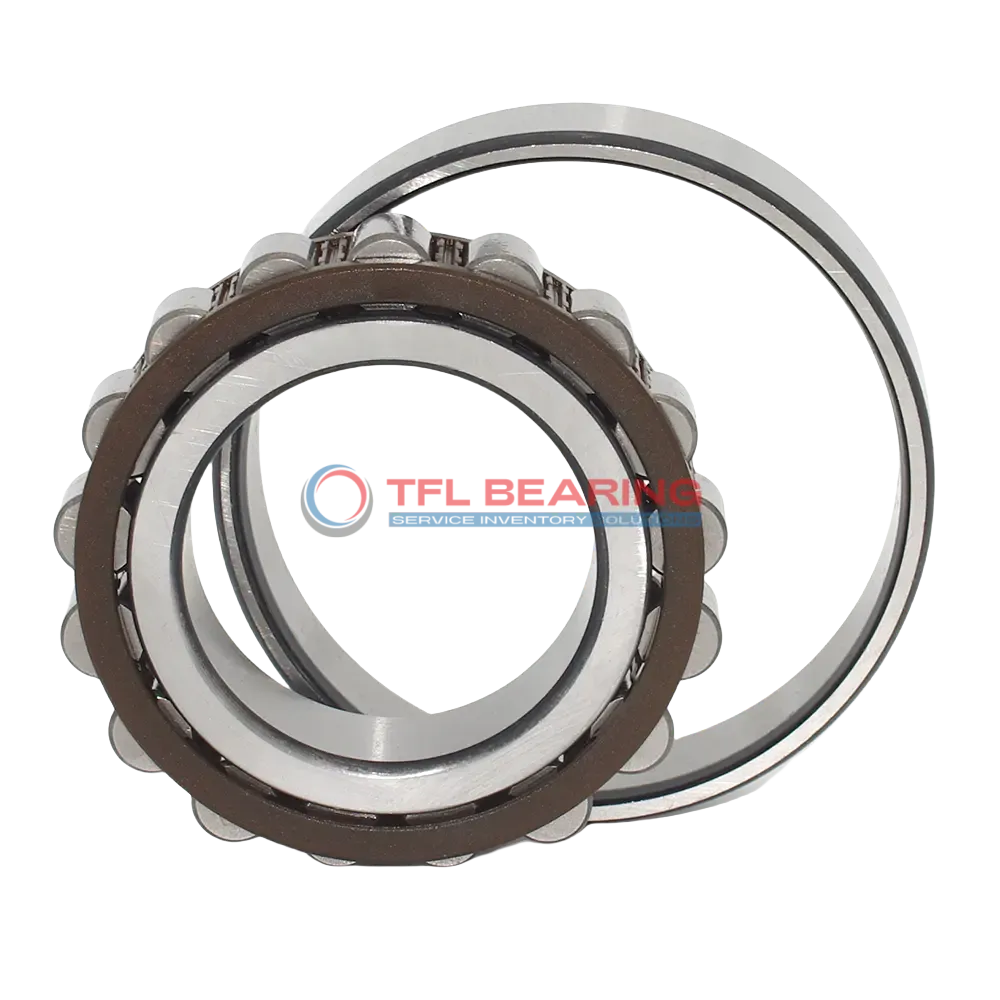

Single Row Cylindrical Roller Bearings With Inner Ring N 207 ECP

Single Row Cylindrical Roller Bearings With Inner Ring N 207 ECP

The N 207 ECP is a single row cylindrical roller bearing with a 35mm bore and 72mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 12600 lbf and spins smoothly at speeds up to 12000 RPM.

Its open design allows for easy lubrication with grease or oil, while the PA66 cage ensures smooth operation and long life. The bearing performs well in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like gearboxes or industrial machinery where both radial and axial loads are present.

Weighing just 0.3kg, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number N 207 ECP
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 17 mm
  • Width Tolerance -0.12mm to 0
  • Shoulder Dia Of Inner Ring 48.1 mm
  • Raceway Diameter Of Outer Ring(E) 64 mm
  • Chamfer Dimension r1,2(min.) 1.1 mm
  • Chamfer Dimension r3,4(min.) 0.6 mm
  • Permissible Axial Displacement(max.) 1.3 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material PA66 cage, roller centred
  • Dynamic Radial Load 12600 lbf
  • Static Radial Load 10800 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 12000 rpm
  • Weight 0.3 kg
Single Row Cylindrical Roller Bearings With Inner Ring N 207 ECP dimension drawing
Download DWG Download PDF

Features

Performance Features of N 207 ECP Bearing

N 207 ECP Bearing is designed with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 12600 lbf, ensuring robust performance in various applications.

The PA66 cage keeps the rollers centred, reducing friction and enhancing durability.
With a maximum speed of 12000 rpm, it delivers efficient operation under demanding conditions.

N 207 ECP Bearing works within a temperature range of -30° to 110°C, suitable for diverse environments.
Its open design allows for easy lubrication with grease or oil, simplifying maintenance.

The precise dimensions and tolerances ensure smooth installation and reliable performance.
N 207 ECP Bearing’s construction minimises wear, extending its service life in heavy-duty applications.

Application

Industrial Uses of N 207 ECP Bearing
N 207 ECP Bearing is commonly used in machine tools, where its cylindrical roller design handles both radial and axial loads efficiently. The chrome steel construction ensures durability in high-speed operations.

Where Is N 207 ECP Bearing Used?
In automotive gearboxes, N 207 ECP Bearing provides reliable performance under combined loads. Its metric sizing makes it a versatile choice for various vehicle models.

Perfect Fit for Automation: N 207 ECP Bearing
N 207 ECP Bearing works well in robotic arms, offering smooth movement and low maintenance. The PA66 cage reduces friction, enhancing longevity in continuous use.

Medical vs Industrial: Where N 207 ECP Bearing Excels
N 207 ECP Bearing is suitable for industrial pumps and medical centrifuges, thanks to its precise load handling. The open design allows easy lubrication, ensuring consistent performance.

Key Fields for N 207 ECP Bearing
N 207 ECP Bearing is ideal for conveyor systems, where its high dynamic load capacity keeps operations running smoothly. The temperature range also makes it adaptable to various environments.
