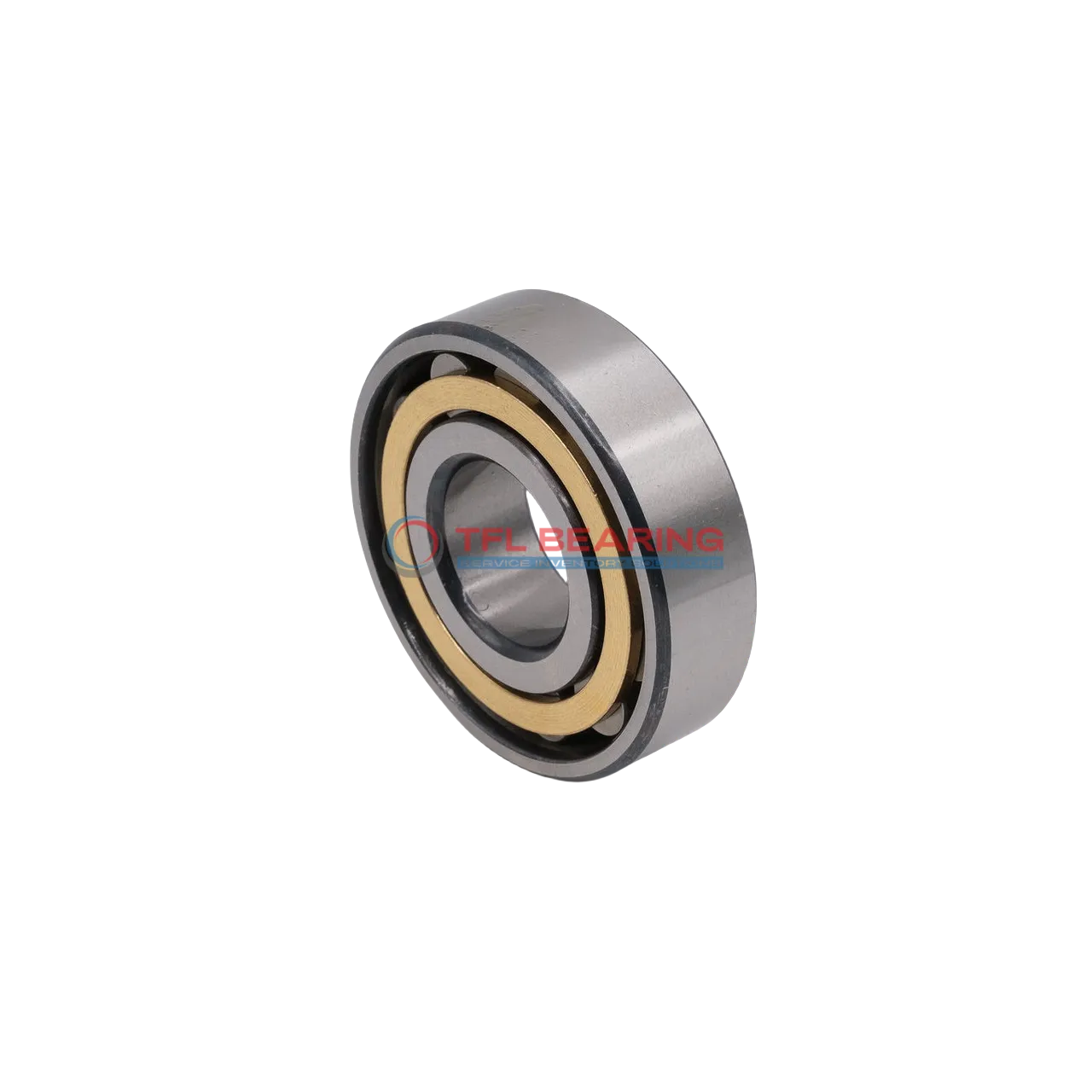

Single Row Cylindrical Roller Bearings With Inner Ring 316201

Single Row Cylindrical Roller Bearings With Inner Ring 316201

The 316201 is a single row cylindrical roller bearing with a large 1120mm bore and 1360mm outer diameter, crafted from sturdy chrome steel. It supports combined loads up to 371250 lbf and works well with grease or oil lubrication.

Its brass cage keeps rollers centred for smooth operation, while the open design allows easy maintenance. The bearing handles temperatures from -30°C to 110°C, making it versatile for various conditions.

With a permissible axial displacement of 14.4mm, it accommodates slight misalignments. This model is interchangeable with SKF bearings, ideal for heavy-duty applications like industrial machinery or large gearboxes.

Weighing 285kg, it’s built for robust performance in demanding environments. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 316201
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 1120 mm
  • Bore Dia Tolerance -0.125 mm to 0
  • Outer Dia 1360 mm
  • Outer Dia Tolerance -0.16mm to 0
  • Width 104 mm
  • Width Tolerance -0.20mm to 0
  • Shoulder Dia Of Inner Ring 1209 mm
  • Raceway Diameter Of Outer Ring(E) 1292 mm
  • Chamfer Dimension r1,2(min.) 6 mm
  • Permissible Axial Displacement(max.) 14.4 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass cage, roller centred
  • Dynamic Radial Load 371250 lbf
  • Static Radial Load 855000 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 285 kg
Single Row Cylindrical Roller Bearings With Inner Ring 316201 dimension drawing
Download DWG Download PDF

Features

How Does 316201 Bearing Handle Combined Loads?

316201 Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and axial loads.
Its dynamic radial load capacity reaches 371,250 lbf, ensuring reliable performance in heavy-duty applications.
The brass cage keeps the rollers centred, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environmental conditions.

Application

Industrial Uses of 316201 Bearing
316201 Bearing is commonly used in heavy industrial machinery, such as large gearboxes and rolling mills, where its robust design handles both radial and axial loads effectively. The brass cage ensures smooth operation even under high stress conditions.

Where Is 316201 Bearing Used?
You’ll often find 316201 Bearing in wind turbines and mining equipment, thanks to its ability to withstand extreme loads and harsh environments. Its chrome steel construction provides excellent durability and resistance to wear over time.

Built for Heavy-Duty Use: 316201 Bearing
316201 Bearing is ideal for applications like steel production lines, where its large bore diameter and high load capacity are essential. The open seal design allows for easy lubrication, extending the bearing’s service life in demanding conditions.

Automotive vs Aerospace: Applications of 316201 Bearing
In automotive settings, 316201 Bearing supports large drivetrain components, while in aerospace, it’s used in ground support equipment due to its reliability. The metric sizing ensures compatibility with a wide range of international machinery standards.

Practical Applications of 316201 Bearing
316201 Bearing is a go-to choice for paper manufacturing machines, where its combined load handling keeps production lines running smoothly. The grease or oil lubrication options make it adaptable to different operational needs.
