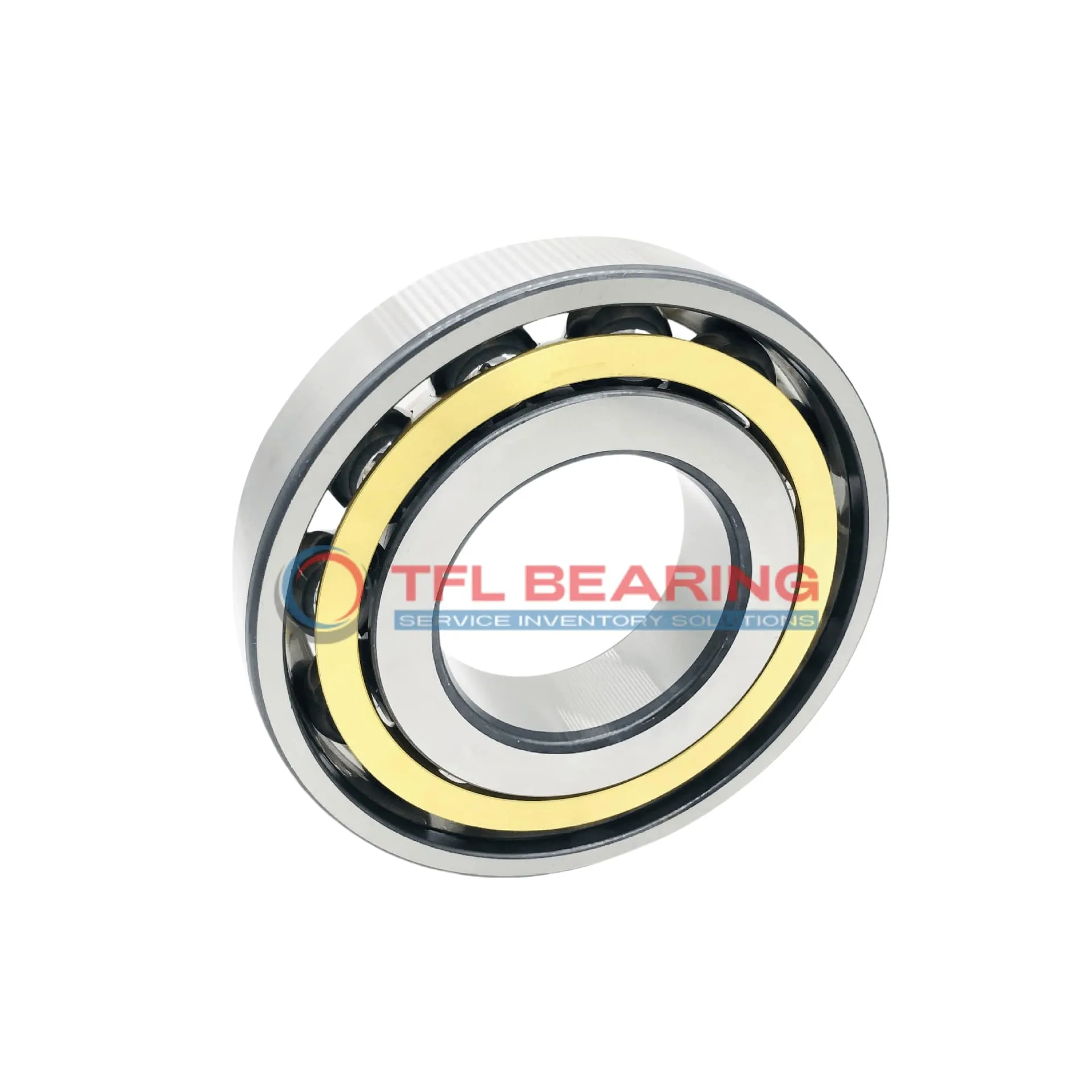

Single Row Angular Contact Ball Bearings (General) 7410 BGAM

Brand: TFL Bearing Interchangeable: SKF 7410 BGAM 50 mm × 130 mm × 31 mm Metric Open
Part number: 7410 BGAM
Single Row Angular Contact Ball Bearings (General) 7410 BGAM
In Stock
US$68.96 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia50 mm
Bore Dia Tolerance-0.01mm to 0
Outer Dia130 mm
Outer Dia Tolerance-0.015mm to 0
Width31 mm
Width Tolerance-0.05mm to 0
External Diameter On Inner Ring (Large Side Face)81.4 mm
External Diameter On Inner Ring (Small Side Face)66.8 mm
Internal Diameter On Outer Ring99.85 mm
Chamfer Dimension2.1 mm
Performance
Dynamic Radial Load21,510 lbf
Static Radial Load14,400 lbf
Temperature Range-30° to 110 °C
Max Speed9,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Contact Angle40°
For Load DirectionAngular Contact
ConstructionSingle Row
Seal TypeOpen
Distance Pressure Point (a)53 mm
LubricationLubricated
Tolerance ClassP6 (ABEC-3)
Weight2.25 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
ROHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 7410 BGAM is a single-row angular contact ball bearing with a 50mm bore and 130mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 21510 lbf and operates smoothly at speeds reaching 9000 RPM.

With a 40° contact angle, it efficiently handles combined radial and axial loads. The brass cage enhances durability, while the open design simplifies lubrication and maintenance.

This bearing suits applications like pumps or gearboxes where precise angular contact is needed. It’s interchangeable with SKF models, offering a reliable replacement option.

Weighing 2.25kg, it’s robust yet manageable for industrial use. Compliant with RoHS and REACH standards, it performs well in temperatures from -30°C to 110°C.

Features

Performance Features of 7410 BGAM Bearing

7410 BGAM Bearing is designed with a 40° contact angle, optimising its ability to handle combined radial and axial loads.
The chrome steel rings and balls enhance durability, while the brass cage ensures smooth operation at high speeds.

With a dynamic radial load capacity of 21510 lbf, 7410 BGAM Bearing performs reliably in demanding applications.
Its P6 tolerance class (ABEC-3) guarantees precision, making it suitable for high-accuracy machinery.

7410 BGAM Bearing operates efficiently at speeds up to 9,000 rpm, balancing performance and longevity.
The open design allows for easy lubrication, maintaining optimal performance over time.

Application

Industrial Uses of 7410 BGAM Bearing
7410 BGAM Bearing is commonly used in machine tools, where its 40° contact angle efficiently handles combined radial and axial loads. The brass cage ensures smooth operation even at high speeds, making it suitable for precision machining.

Where Is 7410 BGAM Bearing Used?
In automotive applications, 7410 BGAM Bearing supports gearboxes and wheel hubs, providing reliable performance under varying loads. Its metric sizing and P6 tolerance make it a versatile choice for European and Asian vehicle models.

Built for Heavy-Duty Use: 7410 BGAM Bearing
7410 BGAM Bearing excels in conveyor systems, where its chrome steel construction withstands continuous operation. The open design allows for easy lubrication, extending service life in demanding environments.

Automotive vs Aerospace: Applications of 7410 BGAM Bearing
In automotive systems, 7410 BGAM Bearing ensures smooth gear shifting and wheel rotation. For aerospace, its precision and durability make it ideal for auxiliary power units and landing gear mechanisms.

Practical Applications of 7410 BGAM Bearing
7410 BGAM Bearing is found in industrial fans, where its high-speed capability and load capacity ensure reliable airflow. The lubricated design reduces friction, enhancing efficiency in continuous operation.
