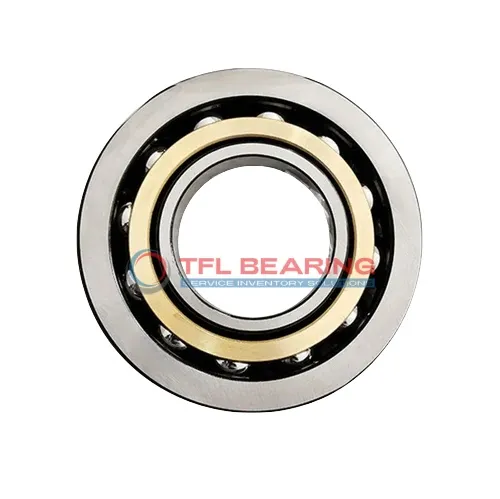

Single Row Angular Contact Ball Bearings (General) 7320 BECCM

Single Row Angular Contact Ball Bearings (General) 7320 BECCM

The 7320 BECCM is a single-row angular contact ball bearing with a 100mm bore and 215mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 48600 lbf and operates smoothly at speeds up to 5000 RPM.

Its 40° contact angle efficiently handles combined radial and axial loads, while the brass cage enhances durability. The open design simplifies lubrication and maintenance.

This bearing suits applications like pumps or gearboxes where precise alignment and load distribution are key. It works in temperatures from -30°C to 110°C and meets P6 tolerance standards.

Weighing 7.5kg, it’s robust for industrial use. Compatible with SKF models, it’s a practical choice for replacements. RoHS and REACH compliant for safe handling.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7320 BECCM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 215 mm
  • Outer Dia Tolerance -0.02mm to 0
  • Width 47 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 144.5 mm
  • External Diameter On Inner Ring (Small Side Face) 120.46 mm
  • Internal Diameter On Outer Ring 173.75 mm
  • Chamfer Dimension 3 mm
  • Distance Pressure Point (a) 90 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 48600 lbf
  • Static Radial Load 46800 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 5000 rpm
  • Weight 7.5 kg
Single Row Angular Contact Ball Bearings (General) 7320 BECCM dimension drawing
Download DWG Download PDF

Features

Performance Features of 7320 BECCM Bearing

7320 BECCM Bearing is designed with a 40° contact angle, optimising its ability to handle combined radial and axial loads.
The chrome steel rings and balls enhance durability, while the brass cage ensures smooth operation at high speeds.

With a dynamic radial load capacity of 48,600 lbf, 7320 BECCM Bearing performs reliably in demanding applications.
Its P6 tolerance class (ABEC-3) guarantees precision, making it suitable for high-accuracy machinery.

7320 BECCM Bearing operates efficiently within a temperature range of -30° to 110°C.
The open design allows for easy lubrication, ensuring long service life with minimal maintenance.

Application

Industrial Uses of 7320 BECCM Bearing
7320 BECCM Bearing is commonly used in heavy machinery like industrial pumps and compressors, where its angular contact design efficiently handles combined radial and axial loads.
The brass cage ensures smooth operation even at moderate speeds, making it suitable for continuous use in demanding environments.

Where Is 7320 BECCM Bearing Used?
In automotive applications, 7320 BECCM Bearing supports wheel hubs and transmission systems, thanks to its high dynamic radial load capacity.
The P6 tolerance class provides the precision needed for reliable performance in vehicles.

Built for Heavy-Duty Use: 7320 BECCM Bearing
7320 BECCM Bearing excels in construction equipment, such as crane slewing rings, where its chrome steel construction offers durability.
Its 40° contact angle ensures stable load distribution, even under uneven forces.

Automotive vs Aerospace: Applications of 7320 BECCM Bearing
In automotive systems, 7320 BECCM Bearing is ideal for high-load scenarios like differential assemblies.
For aerospace, its precision and temperature stability make it suitable for auxiliary gearboxes and landing gear mechanisms.

Perfect Fit for Automation: 7320 BECCM Bearing
7320 BECCM Bearing is a reliable choice for robotic arms in automated production lines, where its low friction reduces energy consumption.
The lubricated design ensures long service life with minimal maintenance.
