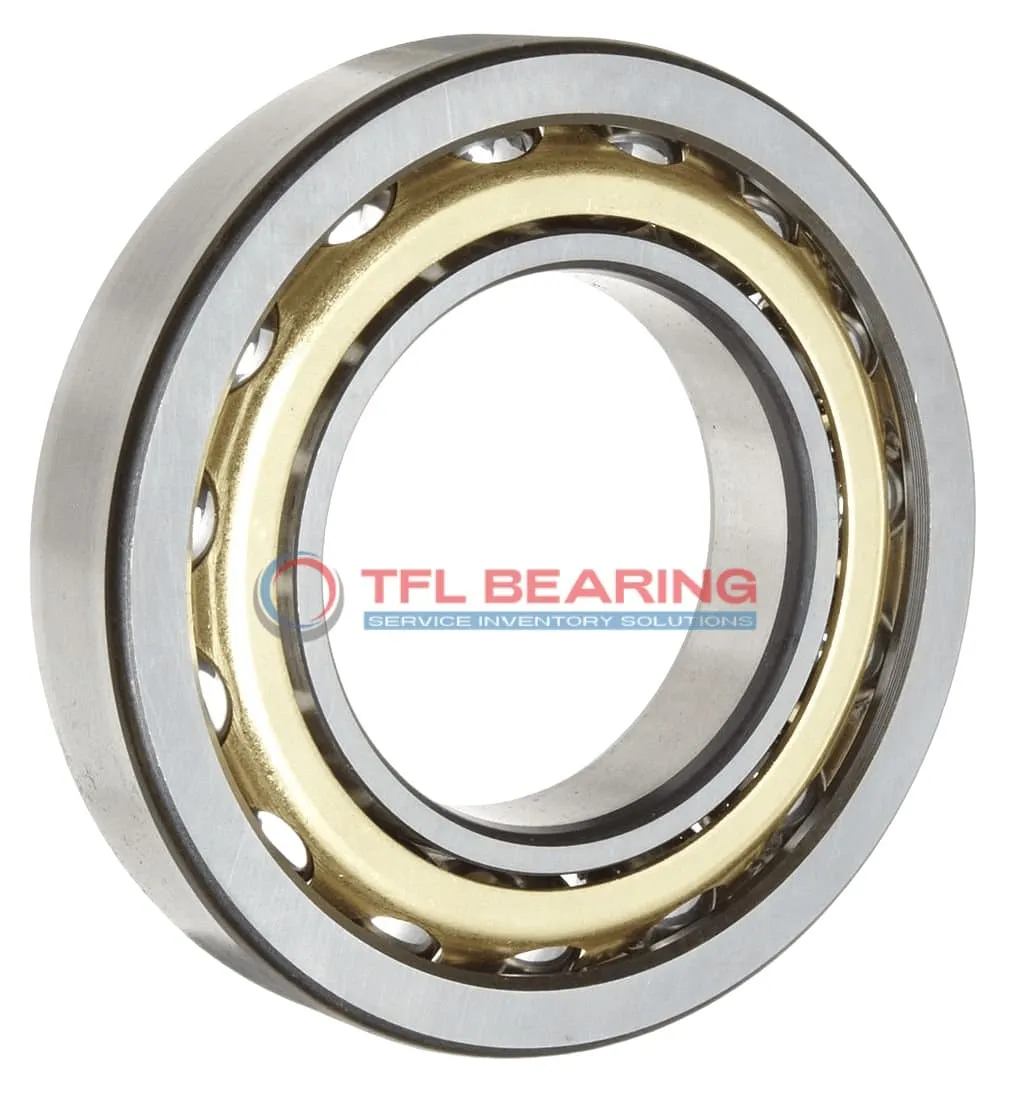

Single Row Angular Contact Ball Bearings (General) 7317 BECBY

Single Row Angular Contact Ball Bearings (General) 7317 BECBY

The 7317 BECBY is a single-row angular contact ball bearing with an 85mm bore and 180mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 35100 lbf and operates smoothly at speeds up to 4800 RPM.

With a 40° contact angle, it efficiently handles combined loads, while the brass cage ensures durability. Its open design allows for easy lubrication and maintenance.

This bearing is compatible with SKF models, making it a practical replacement option. Suitable for machinery like pumps or gearboxes where angular contact is needed.

Weighing 4.43kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it works in temperatures from -30°C to 110°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7317 BECBY
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 180 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 41 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 122.3 mm
  • External Diameter On Inner Ring (Small Side Face) 103.03 mm
  • Internal Diameter On Outer Ring 144.95 mm
  • Chamfer Dimension 3 mm
  • Distance Pressure Point (a) 76 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 35100 lbf
  • Static Radial Load 29700 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 4800 rpm
  • Weight 4.43 kg
  • Price（$） 105.7
Single Row Angular Contact Ball Bearings (General) 7317 BECBY dimension drawing
Download DWG Download PDF

Features

Performance Features of 7317 BECBY Bearing

7317 BECBY Bearing is built with a 40° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel rings and balls ensure durability, while the brass cage provides smooth operation.

The dynamic radial load capacity of 7317 BECBY Bearing reaches 35,100 lbf, making it suitable for heavy-duty applications.
With a maximum speed of 4,800 rpm, it balances performance and reliability.

7317 BECBY Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its P6 tolerance class ensures precision, meeting ABEC-3 standards for consistent performance.

Application

Industrial Uses of 7317 BECBY Bearing
The 7317 BECBY Bearing is commonly used in machine tools, where its 40° contact angle efficiently handles combined radial and axial loads. Its brass cage ensures smooth operation even at moderate speeds, making it suitable for spindle applications.

Where Is 7317 BECBY Bearing Used?
You’ll often find 7317 BECBY Bearing in automotive transmissions, supporting gear shifts with its high dynamic load capacity. The chrome steel construction provides durability, while the P6 tolerance class ensures precision in demanding conditions.

Built for Heavy-Duty Use: 7317 BECBY Bearing
This bearing excels in industrial fans and pumps, where its 180mm outer diameter provides stability under heavy loads. The lubricated design helps maintain performance across its -30° to 110°C temperature range.

Automotive vs Aerospace: Applications of 7317 BECBY Bearing
In automotive systems, 7317 BECBY Bearing handles wheel hub loads, while in aerospace, its precision suits auxiliary gearboxes. The metric sizing makes it versatile for various equipment standards.

Perfect Fit for Automation: 7317 BECBY Bearing
Robotic arms benefit from 7317 BECBY Bearing’s angular contact design, which maintains accuracy during repetitive movements. The 4.43kg weight strikes a balance between strength and manageable size for automation setups.
