Single Row Angular Contact Ball Bearings (General) 7314 BEGBY

Single Row Angular Contact Ball Bearings (General) 7314 BEGBY

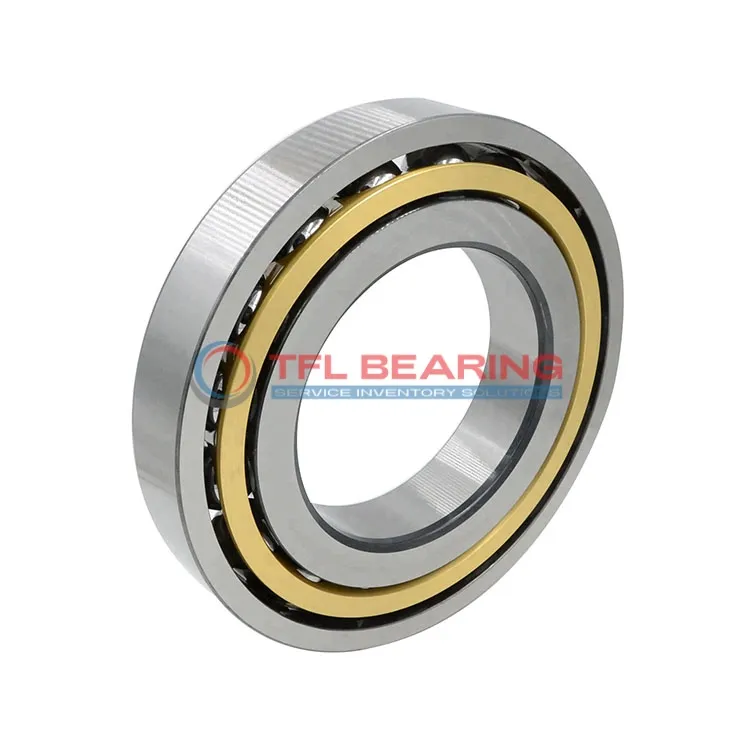

The 7314 BEGBY is a single-row angular contact ball bearing with a 70mm bore and 150mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 28575 lbf and operates smoothly at speeds up to 5600 RPM.

With a 40° contact angle, it efficiently manages combined radial and axial loads. The brass cage enhances durability, while the open design allows for easy lubrication.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. Suitable for machinery like pumps or gearboxes where angular contact is needed.

Weighing 2.65kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s safe for various industrial applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7314 BEGBY
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 35 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 101.1 mm
  • External Diameter On Inner Ring (Small Side Face) 84.4 mm
  • Internal Diameter On Outer Ring 121.5 mm
  • Chamfer Dimension 2.1 mm
  • Distance Pressure Point (a) 64 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 28575 lbf
  • Static Radial Load 22050 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 5600 rpm
  • Weight 2.65 kg
  • Price（$） 60.1
Single Row Angular Contact Ball Bearings (General) 7314 BEGBY dimension drawing
Download DWG Download PDF

Features

Performance Features of 7314 BEGBY Bearing

7314 BEGBY Bearing is built with a 40° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel rings and balls provide strong resistance to wear, ensuring long-term reliability.

The brass cage maintains proper ball alignment, reducing friction and improving efficiency.
With a dynamic radial load capacity of 28575 lbf, it performs well in demanding applications.

7314 BEGBY Bearing operates smoothly at speeds up to 5,600 rpm, balancing speed and durability.
Its P6 tolerance class ensures precision, making it suitable for high-accuracy machinery.

Application

Industrial Uses of 7314 BEGBY Bearing
The 7314 BEGBY Bearing is commonly used in machine tools, where its angular contact design handles combined radial and axial loads efficiently. Its brass cage ensures smooth operation even at moderate speeds.

Where Is 7314 BEGBY Bearing Used?
You’ll find 7314 BEGBY Bearing in automotive transmissions, supporting gears and shafts with its high dynamic load capacity. The 40° contact angle makes it ideal for precise alignment needs.

Built for Heavy-Duty Use: 7314 BEGBY Bearing
This bearing works well in conveyor systems, thanks to its chrome steel construction and P6 tolerance class. The open design allows for easy relubrication in dusty environments.

Automotive vs Aerospace: Applications of 7314 BEGBY Bearing
In cars, 7314 BEGBY Bearing handles wheel hub loads, while in aircraft, it supports auxiliary gearboxes. Its temperature range suits both ground and high-altitude operations.

Perfect Fit for Automation: 7314 BEGBY Bearing
Robotic arms benefit from 7314 BEGBY Bearing’s precise movement and brass cage durability. The metric sizing ensures compatibility with European automation equipment.
