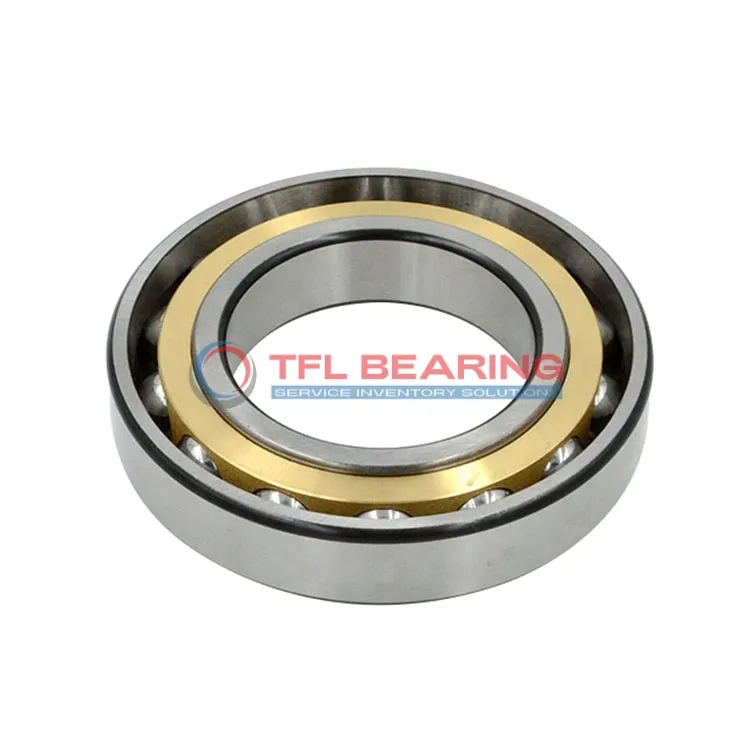

Single Row Angular Contact Ball Bearings (General) 7314 BEGAM

Single Row Angular Contact Ball Bearings (General) 7314 BEGAM

The 7314 BEGAM is a single-row angular contact ball bearing with a 70mm bore and 150mm outer diameter, crafted from sturdy chrome steel. Its 40° contact angle efficiently handles combined radial and axial loads, supporting up to 28575 lbf dynamically.

The open design allows for easy lubrication, while the brass cage ensures smooth operation at speeds up to 7000 RPM. With a P6 tolerance class, it offers reliable precision for demanding applications.

This bearing suits machinery like pumps or gearboxes where angular loads are present. It operates well in temperatures from -30°C to 110°C and is interchangeable with SKF models for convenient replacements.

Weighing 2.65kg, it balances durability with manageable size. Compliant with RoHS and REACH standards, it’s a safe choice for industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7314 BEGAM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 35 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 101.1 mm
  • External Diameter On Inner Ring (Small Side Face) 84.4 mm
  • Internal Diameter On Outer Ring 121.5 mm
  • Chamfer Dimension 2.1 mm
  • Distance Pressure Point (a) 64 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 28575 lbf
  • Static Radial Load 22050 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 7000 rpm
  • Weight 2.65 kg
  • Price（$） 66.02
Single Row Angular Contact Ball Bearings (General) 7314 BEGAM dimension drawing
Download DWG Download PDF

Features

Performance Features of 7314 BEGAM Bearing

7314 BEGAM Bearing is built with a 40° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel rings and balls provide strength, while the brass cage ensures smooth operation.

The bearing can withstand dynamic radial loads up to 28575 lbf, making it suitable for heavy-duty applications.
With a maximum speed of 7,000 rpm, it delivers reliable performance under high-speed conditions.

Designed with a P6 tolerance class, 7314 BEGAM Bearing offers precision and consistency.
Its open construction allows for easy lubrication, extending its service life.

Application

Industrial Uses of 7314 BEGAM Bearing
7314 BEGAM Bearing is commonly used in machine tools, where its angular contact design handles combined radial and axial loads efficiently. The brass cage ensures smooth operation even at higher speeds.

Where Is 7314 BEGAM Bearing Used?
You’ll find 7314 BEGAM Bearing in automotive transmissions, supporting gears and shafts with its precise load distribution. Its P6 tolerance class makes it reliable for high-performance applications.

Built for Heavy-Duty Use: 7314 BEGAM Bearing
7314 BEGAM Bearing excels in conveyor systems, thanks to its chrome steel construction and 40° contact angle. The lubricated design reduces friction, extending service life in demanding environments.

Automotive vs Aerospace: Applications of 7314 BEGAM Bearing
In cars, 7314 BEGAM Bearing aids in wheel hubs and drivetrains, while in aerospace, it supports auxiliary systems. Its metric sizing ensures compatibility across various industries.

Perfect Fit for Automation: 7314 BEGAM Bearing
7314 BEGAM Bearing works well in robotic arms, providing stability and precision. The open seal type allows for easy lubrication, keeping maintenance simple.
