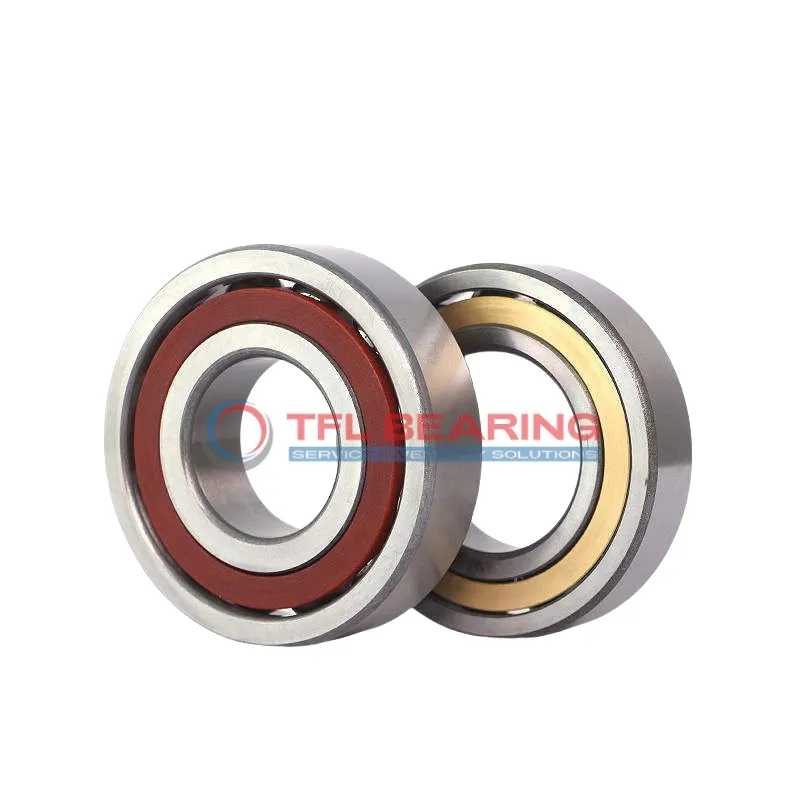

Single Row Angular Contact Ball Bearings (General) 7309 ACCBM

Brand: TFL Bearing Interchangeable: SKF 7309 ACCBM 45 mm × 100 mm × 25 mm Metric Open
Part number: 7309 ACCBM
Single Row Angular Contact Ball Bearings (General) 7309 ACCBM
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia45 mm
Bore Dia Tolerance-0.01mm to 0
Outer Dia100 mm
Outer Dia Tolerance-0.013mm to 0
Width25 mm
Width Tolerance-0.05mm to 0
External Diameter On Inner Ring (Large Side Face)66.38 mm
External Diameter On Inner Ring (Small Side Face)55.2 mm
Internal Diameter On Outer Ring79.54 mm
Chamfer Dimension1.5 mm
Performance
Dynamic Radial Load15,300 lbf
Static Radial Load10,238 lbf
Temperature Range-30° to 110 °C
Max Speed13,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Contact Angle25°
For Load DirectionAngular Contact
ConstructionSingle Row
Seal TypeOpen
Distance Pressure Point (a)29 mm
LubricationLubricated
Tolerance ClassP6 (ABEC-3)
Weight0.91 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
ROHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 7309 ACCBM is a single-row angular contact ball bearing with a 45mm bore and 100mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 15300 lbf and operates smoothly at speeds reaching 13000 RPM.

With a 25° contact angle, it efficiently handles combined radial and axial loads. The brass cage enhances durability, while the open design simplifies lubrication.

This bearing suits applications like pumps or gearboxes where precise angular contact is needed. It’s interchangeable with SKF models, offering a reliable replacement option.

Weighing 0.91kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s safe for use in temperatures from -30°C to 110°C.

Features

Why Choose 7309 ACCBM Bearing for Precision Tasks?

7309 ACCBM Bearing features a 25° contact angle, ideal for handling combined radial and axial loads with precision.
Its chrome steel rings and balls ensure durability, while the brass cage maintains smooth operation.

With a dynamic radial load capacity of 15300 lbf, it performs reliably in demanding applications.
The P6 tolerance class guarantees consistent accuracy, suitable for high-speed operations up to 13,000 rpm.

Designed for a temperature range of -30° to 110°C, it adapts well to various working conditions.
The open seal type allows easy lubrication, enhancing its maintenance efficiency.

Application

Industrial Uses of 7309 ACCBM Bearing
7309 ACCBM Bearing is commonly used in machine tools, where its angular contact design efficiently handles combined radial and axial loads. The brass cage ensures smooth operation even at higher speeds, making it suitable for precision machining.

Where Is 7309 ACCBM Bearing Used?
In automotive applications, 7309 ACCBM Bearing supports components like wheel hubs and transmissions, thanks to its durable chrome steel construction. The 25° contact angle provides excellent load distribution for smoother rides.

Built for Heavy-Duty Use: 7309 ACCBM Bearing
For conveyor systems, 7309 ACCBM Bearing offers reliable performance under continuous loads. Its open design allows for easy lubrication, extending service life in demanding industrial environments.

Automotive vs Aerospace: Applications of 7309 ACCBM Bearing
In automotive gearboxes, 7309 ACCBM Bearing ensures smooth power transmission, while in aerospace, its precision tolerances make it ideal for flight control systems. The P6 tolerance class guarantees consistent performance in both fields.

Perfect Fit for Automation: 7309 ACCBM Bearing
7309 ACCBM Bearing is a great choice for robotic arms, where its high-speed capability and angular contact design enhance movement accuracy. The lubricated construction reduces friction, ensuring long-term reliability.
