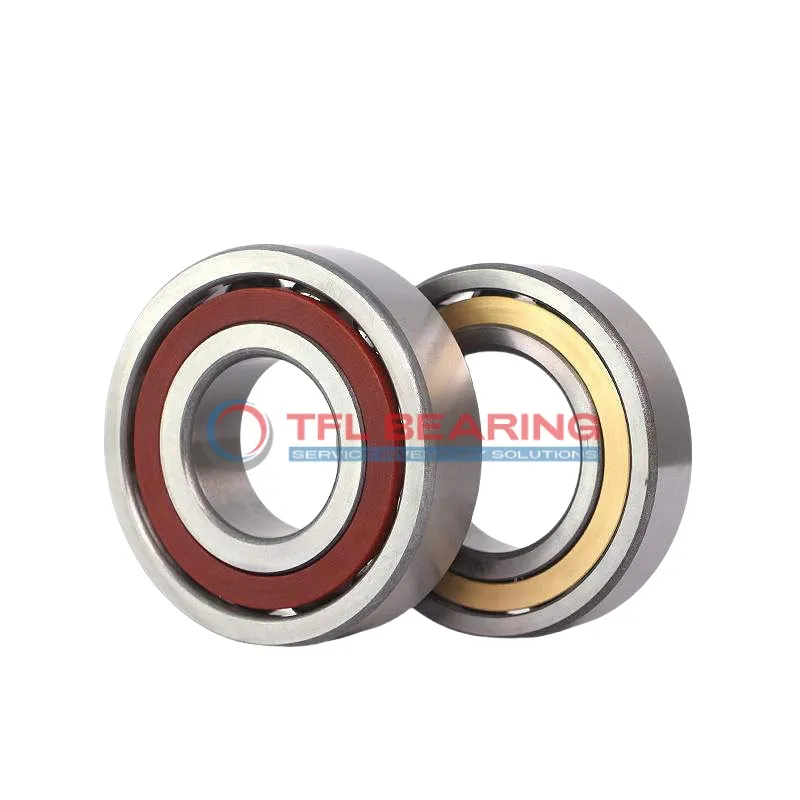

Single Row Angular Contact Ball Bearings (General) 7308 BEGBY

Brand: TFL Bearing Interchangeable: SKF 7308 BEGBY 40 mm × 90 mm × 23 mm Metric Open
Part number: 7308 BEGBY
Single Row Angular Contact Ball Bearings (General) 7308 BEGBY
In Stock
US$28.01 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia40 mm
Bore Dia Tolerance-0.01mm to 0
Outer Dia90 mm
Outer Dia Tolerance-0.013mm to 0
Width23 mm
Width Tolerance-0.05mm to 0
External Diameter On Inner Ring (Large Side Face)59.7 mm
External Diameter On Inner Ring (Small Side Face)49.55 mm
Internal Diameter On Outer Ring71.6 mm
Chamfer Dimension1.5 mm
Performance
Dynamic Radial Load11,250 lbf
Static Radial Load7,312 lbf
Temperature Range-30° to 110 °C
Max Speed10,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Contact Angle40°
For Load DirectionAngular Contact
ConstructionSingle Row
Seal TypeOpen
Distance Pressure Point (a)39 mm
LubricationLubricated
Tolerance ClassP6 (ABEC-3)
Weight0.64 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
ROHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 7308 BEGBY is a single-row angular contact ball bearing with a 40mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 11250 lbf and operates smoothly at speeds up to 10000 RPM.

Its 40° contact angle efficiently manages combined loads, while the brass cage enhances durability. The open design allows for easy lubrication and maintenance.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. Suitable for applications like pumps or gearboxes where angular contact is needed.

Weighing 0.64kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s safe for various industrial uses.

Features

Performance Features of 7308 BEGBY Bearing

7308 BEGBY Bearing is built with a 40° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel rings and balls ensure durability and resistance to wear in demanding conditions.

The brass cage maintains proper ball alignment, reducing friction and enhancing smooth operation.
With a dynamic radial load capacity of 11250 lbf, it performs reliably under heavy loads.

7308 BEGBY Bearing operates efficiently at speeds up to 10,000 rpm, balancing speed and stability.
Its P6 tolerance class ensures precision, making it suitable for high-performance applications.

The open design allows for easy lubrication, extending the bearing’s service life.
It functions well in temperatures ranging from -30° to 110°C, adapting to various environments.

Application

Industrial Uses of 7308 BEGBY Bearing
The 7308 BEGBY Bearing is commonly used in machine tools, where its 40° contact angle efficiently handles combined radial and axial loads. Its brass cage ensures smooth operation even at higher speeds, making it suitable for precision machining.

Where Is 7308 BEGBY Bearing Used?
In automotive applications, 7308 BEGBY Bearing supports components like wheel hubs and transmissions, thanks to its robust chrome steel construction. The P6 tolerance class ensures reliable performance in demanding driving conditions.

Perfect Fit for Automation: 7308 BEGBY Bearing
For robotic arms and automated systems, 7308 BEGBY Bearing offers excellent stability due to its single-row design. The lubricated build reduces friction, enhancing longevity in continuous operation scenarios.

Medical vs Industrial: Where 7308 BEGBY Bearing Excels
While 7308 BEGBY Bearing performs well in industrial pumps, its precision also benefits medical imaging devices. The open seal type allows for easy maintenance, crucial in both environments.

Essential Roles of 7308 BEGBY Bearing
In consumer appliances like high-performance fans, 7308 BEGBY Bearing ensures quiet and efficient operation. Its temperature range of -30° to 110°C makes it adaptable to various climates and usage conditions.
