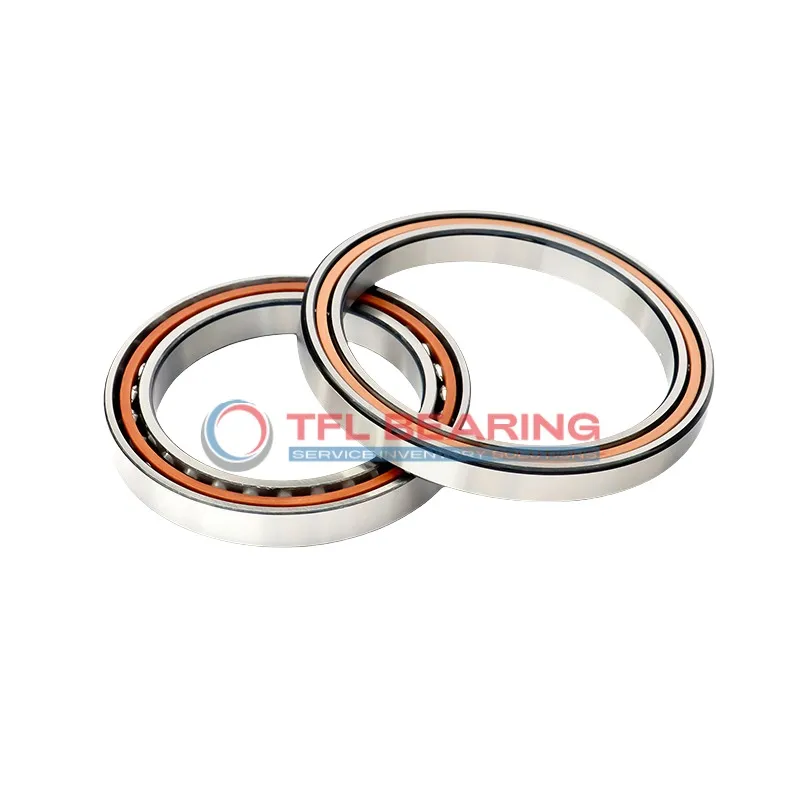

Single Row Angular Contact Ball Bearings (General) 7308 BEGAPH

Single Row Angular Contact Ball Bearings (General) 7308 BEGAPH

The 7308 BEGAPH is a single-row angular contact ball bearing with a 40mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 11250 lbf and operates smoothly at speeds up to 10000 RPM.

With a 40° contact angle, it efficiently handles combined radial and axial loads. The open design and nylon cage ensure low friction and easy maintenance, suitable for various industrial uses.

This bearing works well in temperatures from -30°C to 110°C and meets P6 tolerance standards for precision. It’s interchangeable with SKF bearings, making replacements straightforward.

Ideal for applications like pumps or gearboxes where angular contact is needed. Weighing 0.62kg, it balances durability and ease of installation. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7308 BEGAPH
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 23 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 59.7 mm
  • External Diameter On Inner Ring (Small Side Face) 49.55 mm
  • Internal Diameter On Outer Ring 71.6 mm
  • Chamfer Dimension 1.5 mm
  • Distance Pressure Point (a) 39 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 11250 lbf
  • Static Radial Load 7312 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 10000 rpm
  • Weight 0.62 kg
Single Row Angular Contact Ball Bearings (General) 7308 BEGAPH dimension drawing
Download DWG Download PDF

Features

Performance Features of 7308 BEGAPH Bearing

7308 BEGAPH Bearing is built with a 40° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel rings and balls provide strength, while the nylon cage reduces friction and noise.

The bearing can handle dynamic radial loads up to 11250 lbf, making it suitable for demanding applications.
With a maximum speed of 10,000 rpm, it offers both durability and high-speed performance.

7308 BEGAPH Bearing operates smoothly in temperatures from -30° to 110°C, ensuring reliability in various conditions.
Its P6 tolerance class (ABEC-3) guarantees precise and consistent performance.

The open design simplifies maintenance, and its lightweight construction at 0.62 kg ensures easy handling.
This makes 7308 BEGAPH Bearing a practical choice for many industrial uses.

Application

Industrial Uses of 7308 BEGAPH Bearing
The 7308 BEGAPH Bearing is commonly used in machine tools, where its 40° contact angle efficiently handles combined radial and axial loads. The open design and nylon cage make it suitable for high-speed operations up to 10,000 rpm.

Where Is 7308 BEGAPH Bearing Used?
In automotive applications, 7308 BEGAPH Bearing works well in gearboxes and wheel hubs due to its chrome steel construction and P6 precision. Its metric sizing ensures compatibility with a variety of vehicle designs.

Perfect Fit for Automation: 7308 BEGAPH Bearing
For robotic arms and automated systems, 7308 BEGAPH Bearing offers reliable performance with its balanced load capacity. The lubricated design reduces friction, ensuring smooth movement in repetitive tasks.

Medical vs Industrial: Where 7308 BEGAPH Bearing Excels
While 7308 BEGAPH Bearing is robust enough for industrial pumps, its precision also suits medical imaging devices. The temperature range of -30° to 110°C allows for versatile use in different environments.

Key Fields for 7308 BEGAPH Bearing
In consumer electronics like high-performance fans, 7308 BEGAPH Bearing provides quiet and efficient operation. The lightweight nylon cage contributes to reduced vibration and noise levels.
