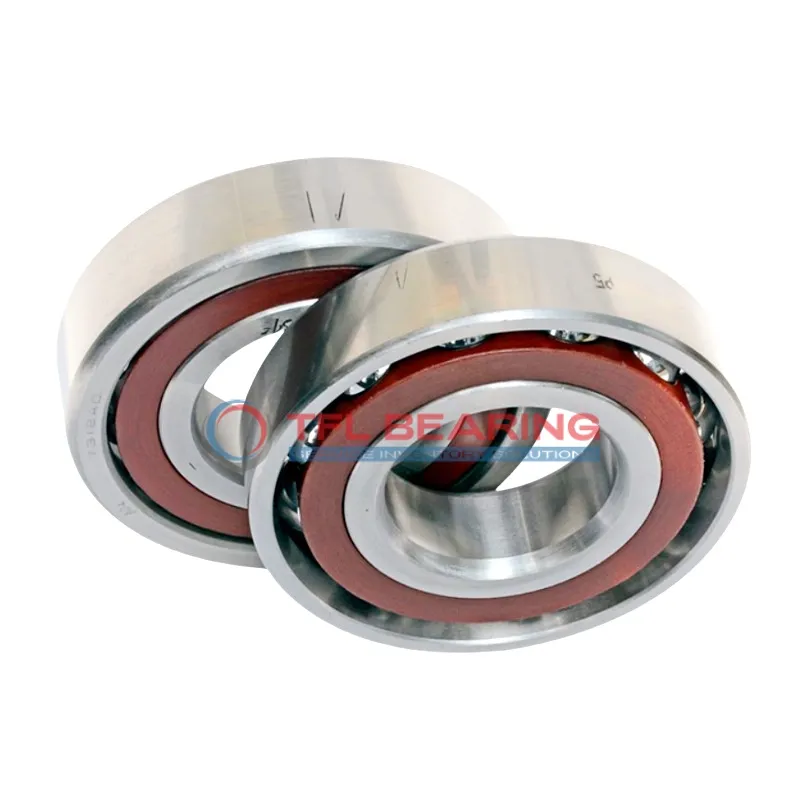

Single Row Angular Contact Ball Bearings (General) 7307 BEGBP

Brand: TFL Bearing Interchangeable: SKF 7307 BEGBP 35 mm × 80 mm × 21 mm Metric Open
Part number: 7307 BEGBP
Single Row Angular Contact Ball Bearings (General) 7307 BEGBP
In Stock
US$26.55 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia35 mm
Bore Dia Tolerance-0.01mm to 0
Outer Dia80 mm
Outer Dia Tolerance-0.011mm to 0
Width21 mm
Width Tolerance-0.05mm to 0
External Diameter On Inner Ring (Large Side Face)52.5 mm
External Diameter On Inner Ring (Small Side Face)43.62 mm
Internal Diameter On Outer Ring63.45 mm
Chamfer Dimension1.5 mm
Performance
Dynamic Radial Load9,338 lbf
Static Radial Load5,962 lbf
Temperature Range-30° to 110 °C
Max Speed11,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Contact Angle40°
For Load DirectionAngular Contact
ConstructionSingle Row
Seal TypeOpen
Distance Pressure Point (a)35 mm
LubricationLubricated
Tolerance ClassP6 (ABEC-3)
Weight0.45 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
ROHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 7307 BEGBP is a single-row angular contact ball bearing with a 35mm bore and 80mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 9338 lbf and operates smoothly at speeds up to 11000 RPM.

With a 40° contact angle, it efficiently manages combined radial and axial loads. The open design and nylon cage ensure durability and easy maintenance.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. Suitable for applications like pumps or gearboxes where angular contact is needed.

Weighing 0.45kg, it’s robust yet manageable. Compliant with RoHS and REACH standards, it works in temperatures from -30°C to 110°C.

Features

Performance Features of 7307 BEGBP Bearing

7307 BEGBP Bearing features a 40° contact angle, optimised for handling combined radial and axial loads efficiently.
Its chrome steel construction ensures durability and resistance to wear in demanding applications.

The nylon cage design reduces friction and noise, making it suitable for high-speed operations up to 11,000 rpm.
With a dynamic radial load capacity of 9338 lbf, it delivers reliable performance under stress.

7307 BEGBP Bearing operates smoothly within a temperature range of -30° to 110°C, adapting to various environments.
Its precision P6 tolerance class ensures consistent performance in angular contact applications.

The open seal design simplifies maintenance while the lubricated construction enhances longevity.
Weighing just 0.45 kg, it offers a balance of strength and lightweight efficiency.

Application

Industrial Uses of 7307 BEGBP Bearing
The 7307 BEGBP Bearing is commonly used in machine tools, where its 40° contact angle handles combined radial and axial loads efficiently. The open design and nylon cage make it suitable for high-speed operations.

In automotive applications, 7307 BEGBP Bearing works well in gearboxes and wheel hubs, providing smooth performance under angular loads. Its P6 tolerance ensures precision in demanding conditions.

For robotics, 7307 BEGBP Bearing offers reliable movement in robotic arms and automated systems. The chrome steel construction ensures durability, even in continuous operation.

Medical imaging devices benefit from 7307 BEGBP Bearing’s low friction and stable performance. The lubricated design helps maintain quiet operation in sensitive environments.

Household appliances like washing machines often use 7307 BEGBP Bearing for its balance of strength and smooth rotation. The metric sizing fits seamlessly into various European and Asian models.
