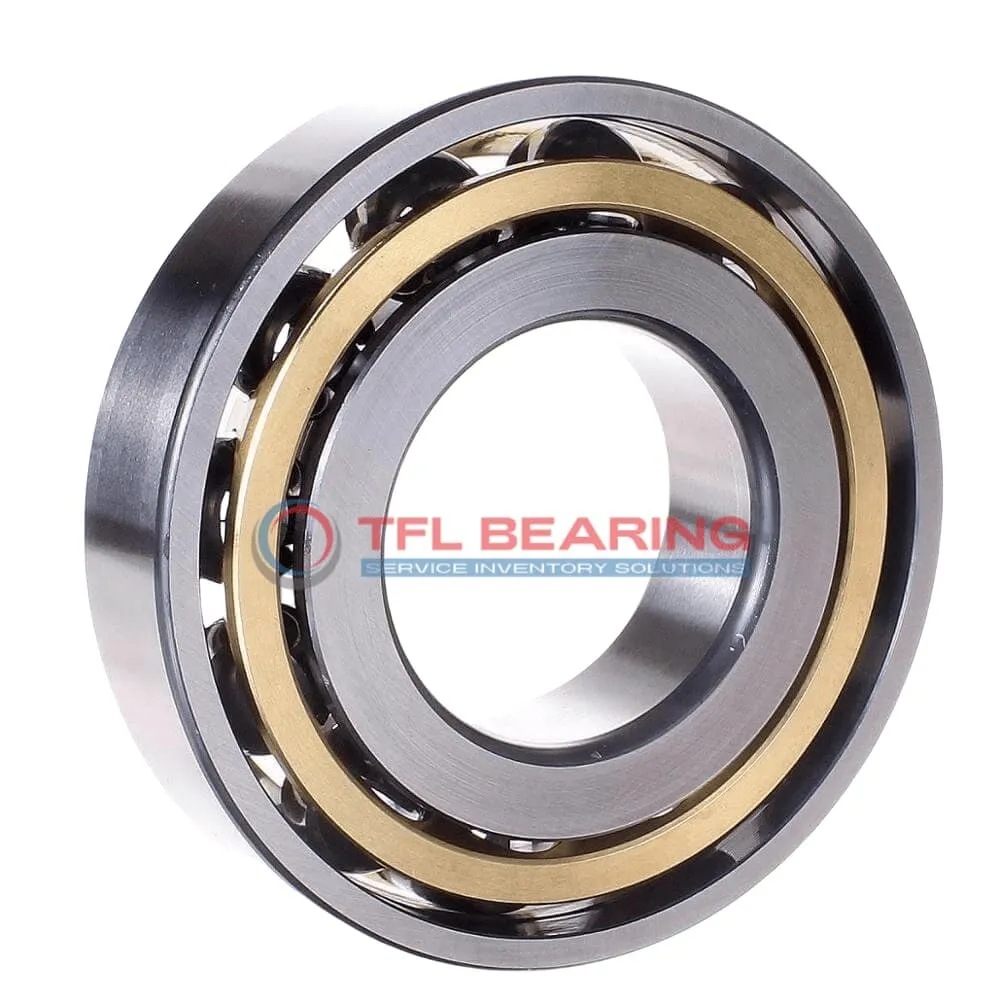

Single Row Angular Contact Ball Bearings (General) 7218 BECCM

Single Row Angular Contact Ball Bearings (General) 7218 BECCM

The 7218 BECCM is a single-row angular contact ball bearing with a 90mm bore and 160mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 26100 lbf and operates smoothly at speeds up to 5000 RPM.

Its 40° contact angle efficiently handles combined loads, while the brass cage enhances durability and reduces friction. The open design allows for easy lubrication and maintenance.

This bearing suits applications like pumps or gearboxes where angular contact is needed. It’s interchangeable with SKF models, making replacements straightforward.

Weighing 2.3kg, it’s robust yet manageable for industrial use. Compliant with RoHS and REACH standards, it works in temperatures from -30°C to 110°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7218 BECCM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 90 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 160 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 30 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 117.1 mm
  • External Diameter On Inner Ring (Small Side Face) 103.06 mm
  • Internal Diameter On Outer Ring 134.8 mm
  • Chamfer Dimension 2 mm
  • Distance Pressure Point (a) 67 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 26100 lbf
  • Static Radial Load 23400 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 5000 rpm
  • Weight 2.3 kg
  • Price（$） 72.33
Single Row Angular Contact Ball Bearings (General) 7218 BECCM dimension drawing
Download DWG Download PDF

Features

Why Choose 7218 BECCM Bearing for Precision Tasks?

7218 BECCM Bearing features a 40° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel rings and balls ensure durability and consistent performance under high stress.

The brass cage maintains ball alignment, reducing friction and extending operational life.
With a dynamic radial load capacity of 26,100 lbf, it excels in demanding applications.

Designed for speeds up to 5,000 rpm, 7218 BECCM Bearing balances efficiency and reliability.
Its P6 tolerance class ensures precise operation, making it suitable for high-accuracy tasks.

The open design allows easy lubrication, enhancing performance in various conditions.
Operating between -30°C to 110°C, it adapts well to diverse environmental challenges.

Application

Industrial Uses of 7218 BECCM Bearing
7218 BECCM Bearing is commonly used in machine tools, where its angular contact design handles both radial and axial loads efficiently. The brass cage ensures smooth operation even at moderate speeds, making it suitable for precision equipment.

Where Is 7218 BECCM Bearing Used?
You’ll find 7218 BECCM Bearing in automotive transmissions, supporting gear shifts with its reliable load capacity. Its chrome steel construction also makes it durable for high-stress environments like heavy machinery.

Built for Heavy-Duty Use: 7218 BECCM Bearing
7218 BECCM Bearing works well in conveyor systems, thanks to its robust design and P6 tolerance class. The open seal allows for easy lubrication, extending its lifespan in industrial settings.

Automotive vs Aerospace: Applications of 7218 BECCM Bearing
In automotive applications, 7218 BECCM Bearing excels in wheel hubs and drivetrains, while its precision suits aerospace actuators. The 40° contact angle ensures stability in both high and low-speed scenarios.

Perfect Fit for Automation: 7218 BECCM Bearing
7218 BECCM Bearing is ideal for robotic arms, where its single-row design offers flexibility and accuracy. The metric sizing ensures compatibility with a wide range of automated systems.
