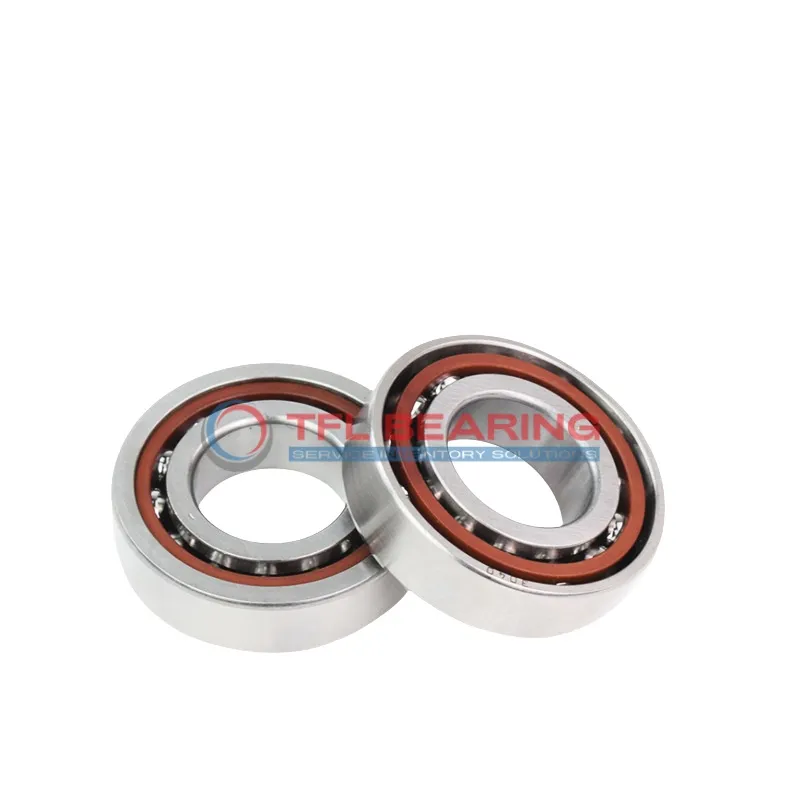

Single Row Angular Contact Ball Bearings (General) 7210 BEGAP

Single Row Angular Contact Ball Bearings (General) 7210 BEGAP

The 7210 BEGAP is a single-row angular contact ball bearing with a 50mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It features a 40° contact angle, handling radial loads up to 9000 lbf and speeds up to 9000 RPM.

Its open design and nylon cage reduce friction, ensuring smooth operation. The bearing is pre-lubricated for easy use and performs well in temperatures from -30°C to 110°C.

With a P6 tolerance class, it offers reliable precision for demanding applications. Ideal for machinery like pumps or gearboxes where angular loads are present.

Weighing 0.47kg, it’s a robust yet manageable choice. Compliant with RoHS and REACH standards, it’s also interchangeable with SKF bearings for convenient replacements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7210 BEGAP
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 20 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 65.75 mm
  • External Diameter On Inner Ring (Small Side Face) 57.68 mm
  • Internal Diameter On Outer Ring 75.15 mm
  • Chamfer Dimension 1.1 mm
  • Distance Pressure Point (a) 39 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 9000 lbf
  • Static Radial Load 6975 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 9000 rpm
  • Weight 0.47 kg
  • Price（$） 34.6
Single Row Angular Contact Ball Bearings (General) 7210 BEGAP dimension drawing
Download DWG Download PDF

Features

Why Choose 7210 BEGAP Bearing for Precision Tasks?

7210 BEGAP Bearing features a 40° contact angle, ideal for handling combined radial and axial loads with precision.
Its chrome steel construction ensures durability and reliable performance in various applications.

The nylon cage minimises friction and noise, making it suitable for high-speed operations up to 9,000 rpm.
With a dynamic radial load capacity of 9000 lbf, it delivers consistent performance under stress.

Designed for easy lubrication, 7210 BEGAP Bearing maintains smooth operation within a temperature range of -30° to 110°C.
Its P6 tolerance class guarantees high precision, meeting ABEC-3 standards for accuracy.

Application

Industrial Uses of 7210 BEGAP Bearing
The 7210 BEGAP Bearing is commonly used in machine tools, where its 40° contact angle efficiently handles combined radial and axial loads. Its open design and nylon cage make it suitable for high-speed operations in industrial settings.

In automotive applications, 7210 BEGAP Bearing is often found in gearboxes and wheel hubs, providing reliable performance under angular loads. The metric sizing ensures compatibility with a variety of vehicle models.

For automation systems, 7210 BEGAP Bearing supports robotic arms and conveyor belts, where precision and durability are key. The chrome steel construction ensures long-lasting performance in demanding environments.

Medical imaging devices also benefit from 7210 BEGAP Bearing’s smooth operation and high-speed capabilities. The P6 tolerance class ensures consistent accuracy in critical applications.

In household appliances like washing machines, 7210 BEGAP Bearing offers quiet and efficient operation. Its lubricated design reduces maintenance needs, making it a practical choice for everyday use.
