Single Row Angular Contact Ball Bearings (General) 7209 BEGAP

Single Row Angular Contact Ball Bearings (General) 7209 BEGAP

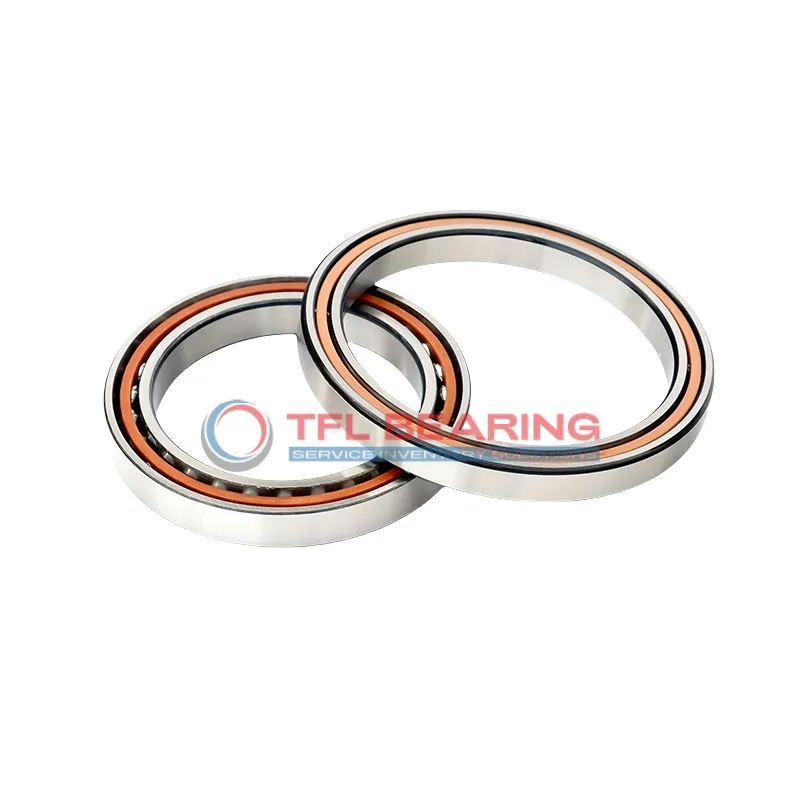

The 7209 BEGAP is a single-row angular contact ball bearing with a 45mm bore and 85mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 8550 lbf and operates smoothly at speeds up to 10,000 RPM.

With a 40° contact angle, it efficiently handles combined radial and axial loads. The open design and nylon cage ensure durability while allowing easy lubrication.

This bearing suits applications like pumps or gearboxes where precision and reliability are key. Its P6 tolerance class (ABEC-3) ensures consistent performance.

Weighing 0.42kg, it’s a robust yet manageable choice for industrial use. Compliant with RoHS and REACH standards, it’s safe for various environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7209 BEGAP
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 85 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 19 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 60.85 mm
  • External Diameter On Inner Ring (Small Side Face) 52.68 mm
  • Internal Diameter On Outer Ring 70.15 mm
  • Chamfer Dimension 1.1 mm
  • Distance Pressure Point (a) 37 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 8550 lbf
  • Static Radial Load 6412 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 10000 rpm
  • Weight 0.42 kg
  • Price（$） 19.32
Single Row Angular Contact Ball Bearings (General) 7209 BEGAP dimension drawing
Download DWG Download PDF

Features

Performance Features of 7209 BEGAP Bearing

7209 BEGAP Bearing features a 40° contact angle, optimised for handling combined radial and axial loads.
The chrome steel construction ensures durability, while the nylon cage reduces friction and noise.

With a dynamic radial load capacity of 8550 lbf, it performs reliably in demanding applications.
Its P6 tolerance class (ABEC-3) guarantees precision, making it suitable for high-speed operations up to 10,000 rpm.

The open design allows for easy lubrication, extending service life.
7209 BEGAP Bearing operates efficiently within a temperature range of -30° to 110°C.

Application

Industrial Uses of 7209 BEGAP Bearing
7209 BEGAP Bearing is commonly used in machine tools, where its 40° contact angle efficiently handles combined radial and axial loads. The open design and nylon cage make it suitable for high-speed operations up to 10,000 rpm.

Where Is 7209 BEGAP Bearing Used?
In automotive applications, 7209 BEGAP Bearing supports wheel hubs and transmissions, thanks to its chrome steel construction and precise P6 tolerance. Its durability ensures long service life even under demanding conditions.

Built for Heavy-Duty Use: 7209 BEGAP Bearing
7209 BEGAP Bearing excels in conveyor systems, where its dynamic radial load capacity of 8550 lbf ensures reliable performance. The lubricated design reduces friction, making it ideal for continuous operation.

Automotive vs Aerospace: Applications of 7209 BEGAP Bearing
In automotive systems, 7209 BEGAP Bearing handles angular loads in gearboxes, while in aerospace, its lightweight nylon cage and high-speed capability suit auxiliary equipment. The metric sizing ensures compatibility across industries.

Perfect Fit for Automation: 7209 BEGAP Bearing
7209 BEGAP Bearing is a go-to choice for robotic arms, where its precision and 40° contact angle provide smooth movement. The temperature range of -30° to 110°C ensures reliability in various environments.
