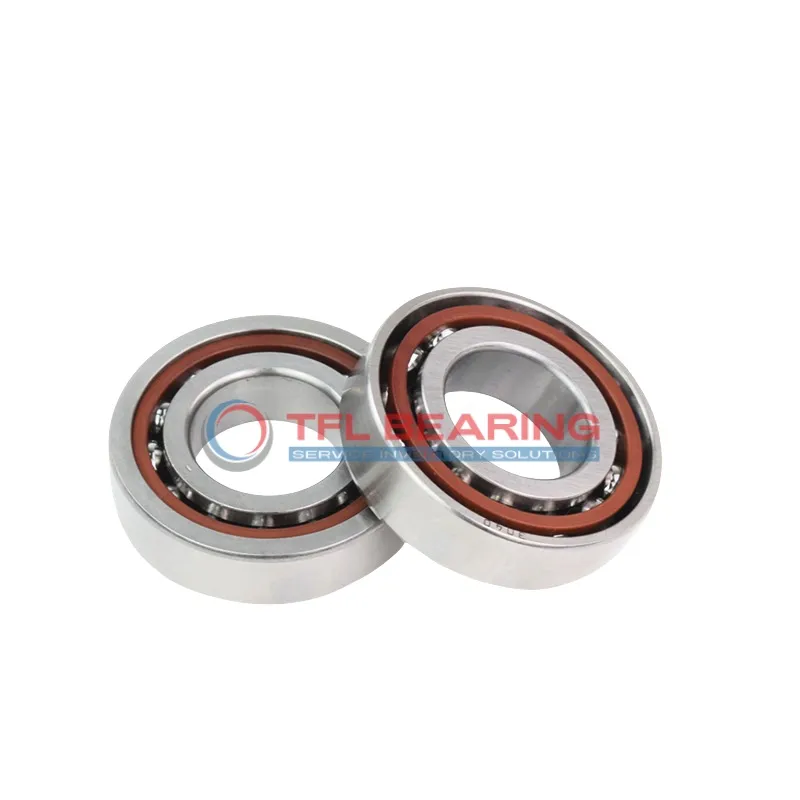

Single Row Angular Contact Ball Bearings (General) 7205 BEGAP

Single Row Angular Contact Ball Bearings (General) 7205 BEGAP

The 7205 BEGAP is a single-row angular contact ball bearing with a 25mm bore and 52mm outer diameter, crafted from sturdy chrome steel. It features a 40° contact angle, designed to handle both radial and axial loads efficiently.

With a dynamic radial load capacity of 3510 lbf, it spins smoothly at speeds up to 17000 RPM. The open design and nylon cage ensure low friction and easy maintenance.

This bearing operates well in temperatures from -30°C to 110°C, making it versatile for various environments. Its P6 tolerance class (ABEC-3) ensures reliable precision.

Ideal for applications like pumps or electric motors where angular contact is needed. Weighing just 0.13kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7205 BEGAP
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 52 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 15 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 35.85 mm
  • External Diameter On Inner Ring (Small Side Face) 30.87 mm
  • Internal Diameter On Outer Ring 41.5 mm
  • Chamfer Dimension 1 mm
  • Distance Pressure Point (a) 24 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 3510 lbf
  • Static Radial Load 2250 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 17000 rpm
  • Weight 0.13 kg
  • Price（$） 14.65
Single Row Angular Contact Ball Bearings (General) 7205 BEGAP dimension drawing
Download DWG Download PDF

Features

Performance Features of 7205 BEGAP Bearing

7205 BEGAP Bearing features a 40° contact angle, optimised for handling combined radial and axial loads.

Its chrome steel construction ensures durability and resistance to wear in demanding applications.

The nylon cage reduces friction and noise, making it suitable for high-speed operations up to 17,000 rpm.

With a dynamic radial load capacity of 3510 lbf, it delivers reliable performance under stress.

Application

Key Fields for 7205 BEGAP Bearing
7205 BEGAP Bearing is commonly used in machine tools, where its 40° contact angle efficiently handles combined radial and axial loads. The open design and nylon cage make it suitable for high-speed operations.

In automotive applications, 7205 BEGAP Bearing works well in wheel hubs and transmissions, thanks to its precise P6 tolerance. The chrome steel construction ensures durability under varying road conditions.

For automation systems, 7205 BEGAP Bearing supports robotic arms and conveyor belts with smooth, reliable performance. Its lightweight design helps reduce energy consumption in continuous operations.

In household appliances like washing machines, 7205 BEGAP Bearing provides quiet and efficient rotation. The lubricated design ensures long service life with minimal maintenance.

Medical imaging devices benefit from 7205 BEGAP Bearing’s stable operation and low friction. The temperature range allows it to perform reliably in clinical environments.
