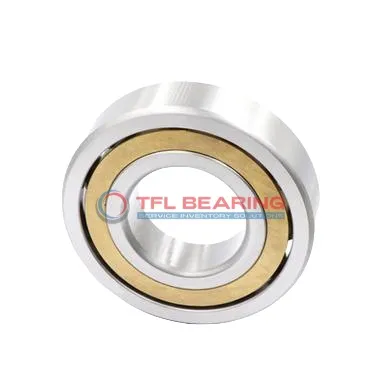

Single Row Angular Contact Ball Bearings (General) 718/500 AMB

Single Row Angular Contact Ball Bearings (General) 718/500 AMB

The 718/500 AMB is a single-row angular contact ball bearing with a 500mm bore and 620mm outer diameter, designed for angular loads. It handles radial loads up to 87750 lbf and operates at speeds up to 1000 RPM.

Made from chrome steel with a brass cage, it offers durability and smooth performance. Its open design allows for easy lubrication, and it works in temperatures from -30°C to 110°C.

With a 30° contact angle, it’s ideal for applications requiring precise load handling, such as heavy machinery or industrial equipment. The bearing is interchangeable with SKF models, making replacements straightforward.

Weighing 38kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a reliable choice for demanding environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 718/500 AMB
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 30°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 500 mm
  • Bore Dia Tolerance -0.035mm to 0
  • Outer Dia 620 mm
  • Outer Dia Tolerance -0.038mm to 0
  • Width 56 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 539.9 mm
  • Internal Diameter On Outer Ring 583 mm
  • Chamfer Dimension 3 mm
  • Distance Pressure Point (a) 190 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 87750 lbf
  • Static Radial Load 191250 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 1000 rpm
  • Weight 38 kg
Single Row Angular Contact Ball Bearings (General) 718/500 AMB dimension drawing
Download DWG Download PDF

Features

Performance Features of 718/500 AMB Bearing

718/500 AMB Bearing is designed with a 30° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls provide strong resistance to both dynamic and static radial loads.

The brass cage ensures smooth operation, even at high speeds up to 1,000 rpm.
With a P6 tolerance class, 718/500 AMB Bearing offers reliable precision in demanding conditions.

Its open design simplifies lubrication, enhancing performance across a temperature range of -30° to 110°C.
The bearing’s robust construction makes it suitable for heavy-duty applications requiring long service life.

Application

Industrial Uses of 718/500 AMB Bearing
The 718/500 AMB Bearing is commonly used in large industrial machinery, such as heavy-duty pumps and compressors, where its angular contact design handles combined loads effectively. Its brass cage ensures smooth operation even under high radial loads.

Where Is 718/500 AMB Bearing Used?
You’ll often find 718/500 AMB Bearing in wind turbine gearboxes, where its 30° contact angle provides stability under varying wind forces. The chrome steel construction also offers excellent durability in harsh outdoor conditions.

Built for Heavy-Duty Use: 718/500 AMB Bearing
718/500 AMB Bearing is a reliable choice for mining equipment, thanks to its robust design and high static radial load capacity. The P6 tolerance class ensures precision in demanding applications.

Automotive vs Aerospace: Applications of 718/500 AMB Bearing
In automotive testing rigs, 718/500 AMB Bearing supports high-precision measurements, while in aerospace, it’s used in landing gear systems for its load-handling capabilities. The lubricated design reduces maintenance needs.

Key Fields for 718/500 AMB Bearing
718/500 AMB Bearing is ideal for paper mill rollers, where its wide inner ring distributes loads evenly. The metric sizing makes it interchangeable with many European-manufactured machines.
