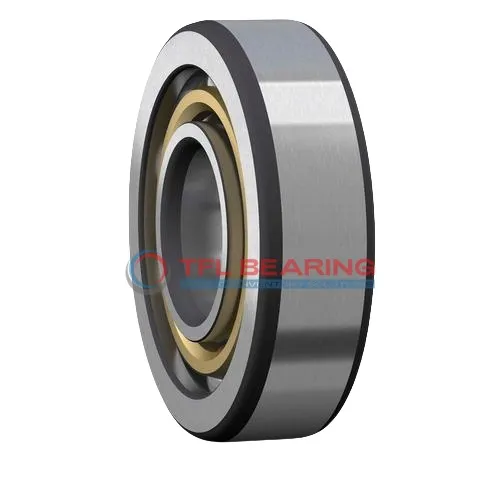

Single Row Angular Contact Ball Bearings (General) 7096 AM

Single Row Angular Contact Ball Bearings (General) 7096 AM

The 7096 AM is a single-row angular contact ball bearing with a 480mm bore and 700mm outer diameter, built from sturdy chrome steel. It manages radial loads up to 157950 lbf and operates smoothly at speeds up to 1000 RPM.

With a 30° contact angle, it efficiently handles combined radial and axial loads. The brass cage enhances durability, while the open design simplifies maintenance and lubrication.

This bearing suits heavy-duty applications like industrial gearboxes or large machinery, where precise angular contact is needed. It performs reliably in temperatures from -30°C to 110°C.

Weighing 125kg, it’s a robust choice for demanding environments. Compliant with RoHS and REACH standards, it’s also interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7096 AM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 30°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 480 mm
  • Bore Dia Tolerance -0.035mm to 0
  • Outer Dia 700 mm
  • Outer Dia Tolerance -0.045mm to 0
  • Width 100 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 567 mm
  • External Diameter On Inner Ring (Small Side Face) 524 mm
  • Internal Diameter On Outer Ring 617 mm
  • Chamfer Dimension 6 mm
  • Distance Pressure Point (a) 220 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 157950 lbf
  • Static Radial Load 344250 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 1000 rpm
  • Weight 125 kg
Single Row Angular Contact Ball Bearings (General) 7096 AM dimension drawing
Download DWG Download PDF

Features

Performance Features of 7096 AM Bearing

7096 AM Bearing is designed with a 30° contact angle, optimising its ability to handle combined radial and axial loads.
The chrome steel rings and balls enhance its durability, while the brass cage ensures smooth operation.

With a dynamic radial load capacity of 157950 lbf, 7096 AM Bearing performs reliably under heavy loads.
Its P6 tolerance class (ABEC-3) ensures precision, making it suitable for high-accuracy applications.

7096 AM Bearing operates efficiently within a temperature range of -30° to 110°C.
The open design allows for easy lubrication, maintaining performance over extended periods.

The large bore diameter of 480 mm makes 7096 AM Bearing ideal for heavy machinery.
Its robust construction and high load capacity ensure long service life with minimal maintenance.

Application

Industrial Uses of 7096 AM Bearing
7096 AM Bearing is commonly used in large industrial machinery, such as heavy-duty presses and rolling mills, where its angular contact design handles combined radial and axial loads efficiently. The brass cage ensures smooth operation even under high stress.

Where Is 7096 AM Bearing Used?
In wind turbine systems, 7096 AM Bearing supports the main shaft, thanks to its robust chrome steel construction and high load capacity. Its P6 tolerance class guarantees precision in demanding environments.

Built for Heavy-Duty Use: 7096 AM Bearing
For mining equipment, 7096 AM Bearing’s large size and durability make it ideal for conveyor systems and crushers. The lubricated design reduces friction, extending service life in harsh conditions.

Automotive vs Aerospace: Applications of 7096 AM Bearing
In automotive applications, 7096 AM Bearing is found in large truck transmissions, while in aerospace, it supports auxiliary systems in aircraft engines. Its 30° contact angle ensures reliable performance in both sectors.
