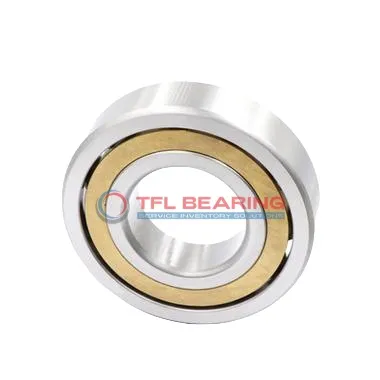

Single Row Angular Contact Ball Bearings (General) 70/630 AMB

Brand: TFL Bearing Interchangeable: SKF 70/630 AMB 630 mm × 920 mm × 128 mm Metric Open
Part number: 70/630 AMB
Single Row Angular Contact Ball Bearings (General) 70/630 AMB
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia630 mm
Bore Dia Tolerance-0.04mm to 0
Outer Dia920 mm
Outer Dia Tolerance-0.06mm to 0
Width128 mm
Width Tolerance-0.05mm to 0
External Diameter On Inner Ring (Large Side Face)724 mm
Internal Diameter On Outer Ring817 mm
Chamfer Dimension7.5 mm
Performance
Dynamic Radial Load215,100 lbf
Static Radial Load551,250 lbf
Temperature Range-30° to 110 °C
Max Speed700 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Contact Angle40°
For Load DirectionAngular Contact
ConstructionSingle Row
Seal TypeOpen
Distance Pressure Point (a)240 mm
LubricationLubricated
Tolerance ClassP6 (ABEC-3)
Weight270 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
ROHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 70/630 AMB is a single-row angular contact ball bearing with a 630mm bore and 920mm outer diameter, built from sturdy chrome steel. It handles heavy radial loads up to 215100 lbf and operates at speeds up to 700 RPM.

With a 40° contact angle, it efficiently manages combined radial and thrust loads. The brass cage enhances durability, while the open design simplifies lubrication and maintenance.

This bearing suits large industrial equipment like pumps or compressors, where precise alignment is crucial. Its P6 tolerance class ensures reliable performance in demanding conditions.

Weighing 270kg, it’s a robust choice for heavy-duty applications. Compliant with RoHS and REACH standards, it’s interchangeable with SKF models for easy replacement.

Features

Performance Features of 70/630 AMB Bearing

70/630 AMB Bearing is built with a 40° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel rings and balls provide strong resistance to wear, ensuring reliable performance.
The brass cage maintains ball alignment, reducing friction and extending service life.
With a dynamic radial load capacity of 215,100 lbf, it excels in heavy-duty applications.

How Is 70/630 AMB Bearing Engineered for Reliability?

70/630 AMB Bearing’s single-row design and open construction simplify installation and maintenance.
Its precision P6 tolerance class ensures consistent performance in demanding conditions.
The bearing operates smoothly within a temperature range of -30° to 110°C, suitable for various environments.
Weighing 270 kg, it is robust yet efficiently designed for angular contact applications.

Built for Durability: 70/630 AMB Bearing

70/630 AMB Bearing’s chrome steel construction resists wear, even under high static radial loads of 551,250 lbf.
Its brass cage enhances durability while maintaining smooth operation at speeds up to 700 rpm.
The bearing’s large chamfer dimension of 7.5 mm facilitates easier mounting and alignment.
Lubricated for optimal performance, it reduces maintenance needs in long-term use.

Application

Industrial Uses of 70/630 AMB Bearing
The 70/630 AMB Bearing is commonly used in heavy industrial machinery, such as large gearboxes and rolling mills, where its angular contact design handles combined radial and axial loads effectively.
Its brass cage and chrome steel construction ensure durability in high-load environments, making it suitable for continuous operation in demanding settings.

Where Is 70/630 AMB Bearing Used?
You’ll often find the 70/630 AMB Bearing in wind turbine systems, where its ability to manage substantial radial and axial forces is crucial for stable performance.
The P6 tolerance class also makes it a reliable choice for precision applications, such as large-scale manufacturing equipment.

Built for Heavy-Duty Use: 70/630 AMB Bearing
The 70/630 AMB Bearing excels in applications like mining equipment, where its robust design withstands extreme loads and harsh conditions.
With a dynamic radial load capacity of 215100 lbf, it’s well-suited for machinery that operates under constant stress.

Automotive vs Aerospace: Applications of 70/630 AMB Bearing
In automotive testing rigs, the 70/630 AMB Bearing supports high-load scenarios, such as simulating vehicle stress conditions.
For aerospace ground equipment, its precision and load-handling capabilities ensure reliable performance in critical support systems.

Practical Applications of 70/630 AMB Bearing
The 70/630 AMB Bearing is a go-to choice for large pumps and compressors, where its angular contact design maintains alignment under heavy loads.
Its lubricated construction and temperature range of -30° to 110°C make it adaptable to various industrial environments.
