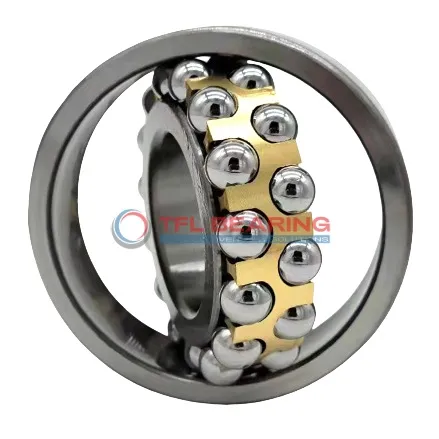

Self Aligning Ball Bearings 2317L1

Self Aligning Ball Bearings 2317L1

The 2317L1 is a self-aligning ball bearing with an 85mm bore and 180mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 31500 lbf and operates smoothly at speeds up to 4800 RPM.

Its double-row design and brass cage provide durability and reduce friction, while the open seal allows for easy lubrication. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like conveyor systems or industrial fans where misalignment might occur.

Weighing 6.8kg, it’s built to handle demanding conditions while maintaining stability. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2317L1
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 180 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 60 mm
  • Width Tolerance -0.2mm to 0
  • External Diameter On Inner Ring 115 mm
  • Internal Diameter On Outer Ring 153.5 mm
  • Chamfer Dimension 3 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 31500 lbf
  • Static Radial Load 11475 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4800 rpm
  • Weight 6.8 kg
Self Aligning Ball Bearings 2317L1 dimension drawing
Download DWG Download PDF

Features

Performance Features of 2317L1 Bearing

2317L1 Bearing is built with chrome steel rings and balls, offering excellent resistance to radial loads.
Its dynamic radial load capacity reaches 31500 lbf, ensuring reliable operation in heavy-duty applications.

The brass cage maintains ball alignment, reducing friction and extending the bearing’s lifespan.
With a maximum speed of 4,800 rpm, it delivers consistent performance under varying conditions.

2317L1 Bearing operates smoothly within a temperature range of -30° to 110°C.
Its open design allows for easy lubrication, enhancing long-term reliability.

The double-row construction provides stability, making it suitable for misalignment-prone setups.
Precision tolerances ensure a snug fit, minimising vibration and noise during operation.

Application

Industrial Uses of 2317L1 Bearing
2317L1 Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its double-row design helps manage radial loads efficiently. The brass cage adds durability, making it suitable for continuous operation in demanding environments.

What Makes 2317L1 Bearing a Preferred Choice?
In automotive applications, 2317L1 Bearing fits well in gearboxes and drivetrains, thanks to its high dynamic radial load capacity. The metric dimensions ensure compatibility with a variety of vehicle designs, from trucks to agricultural equipment.

Built for Heavy-Duty Use: 2317L1 Bearing
For automation systems, 2317L1 Bearing provides reliable performance in robotic arms and assembly lines. Its chrome steel construction ensures long-lasting operation, even under frequent use and varying loads.

Medical vs Industrial: Where 2317L1 Bearing Excels
While 2317L1 Bearing isn’t typically used in medical devices, it shines in industrial settings like pumps and compressors. The lubricated design reduces friction, making it ideal for equipment requiring smooth, consistent motion.

Perfect Fit for Automation: 2317L1 Bearing
In consumer electronics, 2317L1 Bearing can be found in large-scale printers and industrial-grade fans. Its self-aligning feature helps compensate for minor misalignments, ensuring quieter and more efficient operation.
