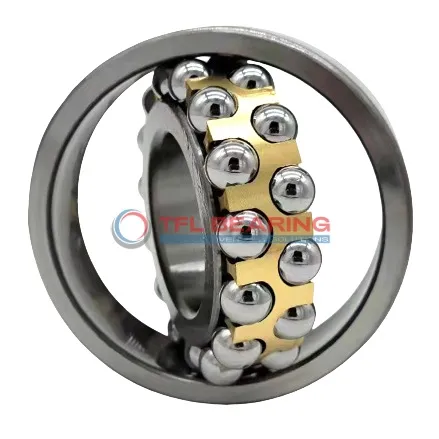

Self Aligning Ball Bearings 2317-M-C3

Self Aligning Ball Bearings 2317-M-C3

The 2317-M-C3 is a self-aligning ball bearing with an 85mm bore and 180mm outer diameter, built to handle heavy radial loads up to 31500 lbf. Its double-row design and chrome steel construction ensure durability and smooth operation.

The open seal type allows for easy lubrication, while the brass cage reduces friction for quieter performance. It can handle speeds up to 4800 RPM and operates in temperatures from -30°C to 110°C.

With a C3 radial clearance, it accommodates minor misalignments, making it ideal for applications like industrial fans or conveyor systems. Weighing 6.8kg, it’s a sturdy choice for heavy-duty machinery.

This model is interchangeable with SKF bearings and complies with RoHS and REACH standards, offering a reliable and safe solution for various industrial needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2317-M-C3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 180 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 60 mm
  • Width Tolerance -0.2mm to 0
  • External Diameter On Inner Ring 115 mm
  • Internal Diameter On Outer Ring 153.5 mm
  • Chamfer Dimension 3 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 31500 lbf
  • Static Radial Load 11475 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4800 rpm
  • Weight 6.8 kg
  • Price（$） 627.18
Self Aligning Ball Bearings 2317-M-C3 dimension drawing
Download DWG Download PDF

Features

How Is 2317-M-C3 Bearing Engineered for Reliability?

2317-M-C3 Bearing features a double-row design with chrome steel rings and balls, enhancing its radial load capacity.
Its dynamic radial load rating of 31,500 lbf ensures dependable performance in heavy-duty applications.

The brass cage maintains ball alignment, reducing friction and extending operational life.
With a maximum speed of 4,800 rpm, it offers a balance of durability and efficiency.

2317-M-C3 Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its C3 radial clearance allows for thermal expansion, making it suitable for varied working conditions.

The open seal design simplifies maintenance, while the cylindrical bore ensures easy installation.
This bearing is lubricated for long-term reliability, reducing the need for frequent servicing.

Application

Industrial Uses of 2317-M-C3 Bearing
2317-M-C3 Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its double-row design handles radial loads efficiently. The open seal allows for easy lubrication, extending its lifespan in demanding environments.

Where Is 2317-M-C3 Bearing Used?
In automotive applications, 2317-M-C3 Bearing fits well in gearboxes and drivetrains, providing smooth rotation under high radial loads. Its brass cage reduces friction, making it a reliable choice for long-term use.

Built for Heavy-Duty Use: 2317-M-C3 Bearing
For automation equipment, 2317-M-C3 Bearing ensures precise alignment in robotic arms and assembly lines. The chrome steel construction offers durability, even in high-speed operations.

Medical vs Industrial: Where 2317-M-C3 Bearing Excels
While 2317-M-C3 Bearing performs well in industrial settings, its precision also suits medical imaging devices. The C3 clearance ensures smooth movement, crucial for sensitive equipment.
