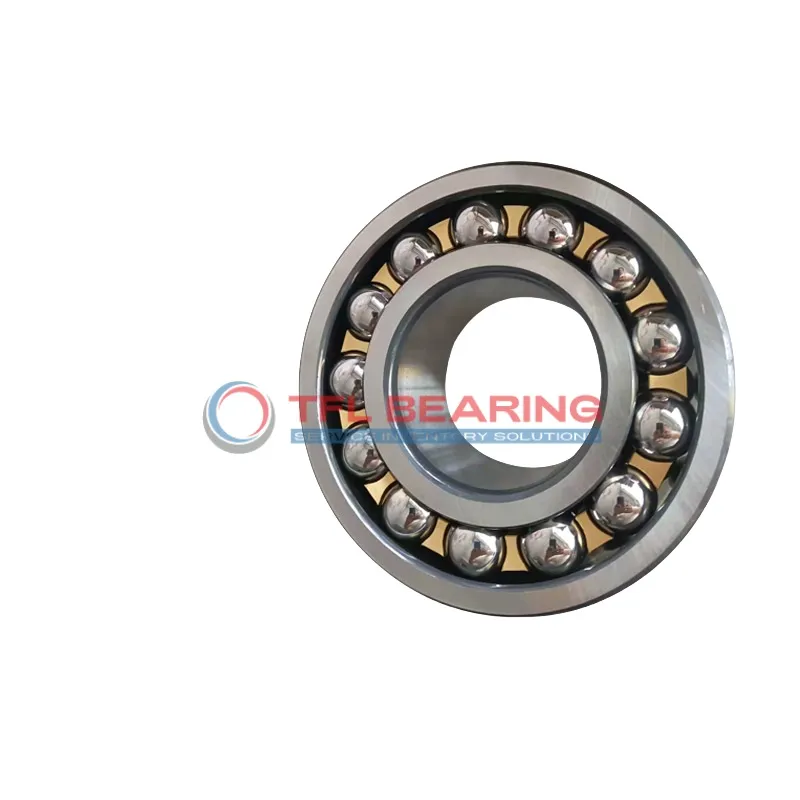

Self Aligning Ball Bearings 2317 KM

Self Aligning Ball Bearings 2317 KM

The 2317 KM is a self-aligning ball bearing with an 85mm bore and 180mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 31500 lbf and operates smoothly at speeds up to 4800 RPM.

Its double-row design allows for slight misalignment, reducing wear and tear. The nylon cage ensures quiet operation and durability, even under continuous use.

This bearing is pre-lubricated for easy installation and works well in temperatures from -30°C to 110°C. It’s interchangeable with SKF models, making replacements straightforward.

Ideal for heavy-duty applications like conveyor systems or industrial fans, where alignment flexibility is key. Weighing 6.8kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2317 KM
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 180 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 60 mm
  • Width Tolerance -0.2mm to 0
  • External Diameter On Inner Ring 115 mm
  • Internal Diameter On Outer Ring 153.5 mm
  • Chamfer Dimension 3 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 31500 lbf
  • Static Radial Load 11475 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4800 rpm
  • Weight 6.8 kg
  • Price（$） 378.58
Self Aligning Ball Bearings 2317 KM dimension drawing
Download DWG Download PDF

Features

Why Choose 2317 KM Bearing for Precision Tasks?

2317 KM Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load reaches 31500 lbf, making it suitable for heavy-duty applications.

The nylon cage in 2317 KM Bearing helps reduce friction and noise during operation.
With a maximum speed of 4,800 rpm, it maintains smooth performance under demanding conditions.

2317 KM Bearing operates efficiently within a temperature range of -30° to 110 °C.
Its open design allows for easy lubrication, enhancing longevity and reliability.

Application

Common Applications of 2317 KM Bearing
In industrial settings, 2317 KM Bearing is widely used in heavy machinery like conveyors and mixers, where its double-row design handles misalignment effortlessly. The open seal allows for easy lubrication, extending service life in dusty environments.

Where Is 2317 KM Bearing Used?
You’ll often find 2317 KM Bearing in automotive applications such as truck wheel hubs, where its radial load capacity ensures smooth rotation. The nylon cage reduces friction, making it quieter for passenger vehicles.

Built for Heavy-Duty Use: 2317 KM Bearing
This bearing excels in construction equipment like cranes, thanks to its chrome steel rings that withstand high loads. Its metric sizing makes it a straightforward replacement for worn-out bearings in European machinery.

Light-Duty vs Heavy-Duty: Best Uses for 2317 KM Bearing
For light-duty tasks like agricultural machinery, 2317 KM Bearing offers reliable performance without overengineering. In heavy-duty scenarios like mining equipment, its dynamic load rating ensures durability under constant stress.
