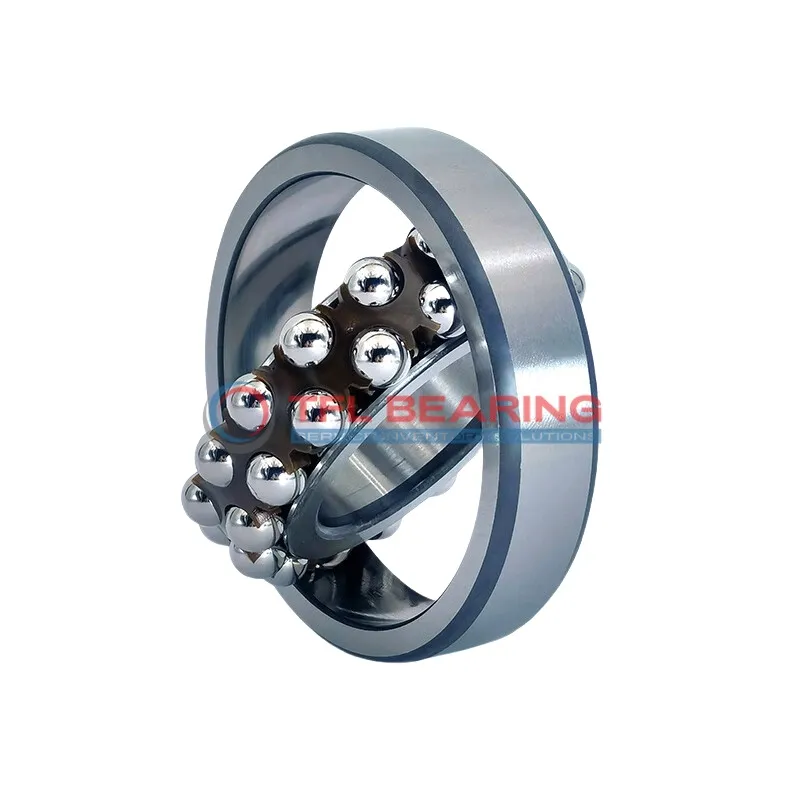

Self Aligning Ball Bearings 2315 K

Brand: TFL Bearing Interchangeable: SKF 2315 K 75 mm × 160 mm × 55 mm Metric Open
Part number: 2315 K
Self Aligning Ball Bearings 2315 K
In Stock
US$149.95 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia75 mm
Bore Dia Tolerance-0.015mm to 0
Outer Dia160 mm
Outer Dia Tolerance-0.025mm to 0
Width55 mm
Width Tolerance-0.15mm to 0
External Diameter On Inner Ring97.8 mm
Internal Diameter On Outer Ring136.4 mm
Chamfer Dimension2.1 mm
Performance
Dynamic Radial Load27,900 lbf
Static Radial Load9,675 lbf
Temperature Range-30° to 110 °C
Max Speed5,600 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Weight4.45 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2315 K is a self-aligning ball bearing with a 75mm bore and 160mm outer diameter, built to handle radial loads up to 27900 lbf. Its double-row design and chrome steel construction ensure durability and smooth operation at speeds up to 5600 RPM.

The open seal type allows for easy lubrication, while the nylon cage reduces friction and noise. It operates efficiently in temperatures ranging from -30°C to 110°C, making it versatile for various conditions.

This bearing is interchangeable with SKF models, offering a reliable alternative for replacements. Ideal for heavy-duty machinery or industrial equipment where misalignment compensation is needed.

Weighing 4.45kg, it’s a sturdy choice for demanding applications. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Features

Why Choose 2315 K Bearing for Precision Tasks?

2315 K Bearing features a double-row design with chrome steel rings and balls, ensuring precise radial load handling.
Its dynamic radial load capacity of 27900 lbf makes it suitable for demanding industrial applications.

The nylon cage in 2315 K Bearing helps maintain ball alignment, reducing friction and noise.
With a maximum speed of 5,600 rpm, it offers a balance of performance and durability.

2315 K Bearing operates smoothly in temperatures ranging from -30° to 110°C, adapting to various environments.
Its open design simplifies maintenance, while the chrome steel construction resists wear over time.

Application

Industrial Uses of 2315 K Bearing
2315 K Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its double-row design helps manage misalignment issues. The open seal allows for easy lubrication, extending its service life in demanding conditions.

In automotive applications, 2315 K Bearing supports radial loads in components such as gearboxes and wheel hubs. Its chrome steel construction ensures durability, even under constant vibration and stress.

For automation equipment, 2315 K Bearing’s self-aligning feature makes it ideal for robotic arms and assembly lines. The nylon cage reduces friction, promoting smoother movement in high-precision tasks.

Where Is 2315 K Bearing Used?
You’ll often find 2315 K Bearing in agricultural machinery, where its ability to handle misalignment is crucial for uneven terrain. The metric sizing ensures compatibility with a wide range of European-made equipment.

In construction tools like cement mixers, 2315 K Bearing’s robust design withstands heavy radial loads. The lubricated setup minimises wear, making it a reliable choice for long-term use.
