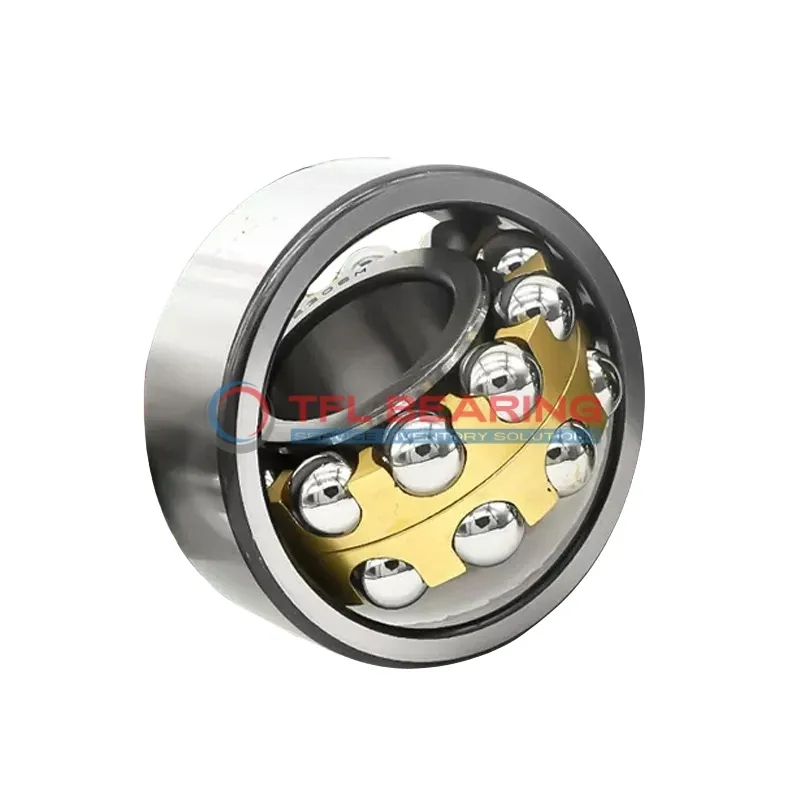

Self Aligning Ball Bearings 2314 M C/4

Self Aligning Ball Bearings 2314 M C/4

The 2314 M C/4 is a self-aligning ball bearing with a 70mm bore and 150mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 24975 lbf and operates smoothly at speeds up to 6000 RPM.

Its double-row design and brass cage provide excellent alignment and durability, even under heavy loads. The open seal allows for easy lubrication, making maintenance straightforward.

This bearing works well in temperatures ranging from -30°C to 110°C, suitable for various industrial environments. It’s interchangeable with SKF bearings, offering a reliable replacement option.

Weighing 4.35kg, it’s robust yet manageable for its size. Ideal for machinery where misalignment or heavy radial loads are common, such as conveyor systems or agricultural equipment. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2314 M C/4
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 51 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 92 mm
  • Internal Diameter On Outer Ring 128.1 mm
  • Chamfer Dimension 2.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 24975 lbf
  • Static Radial Load 8438 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 6000 rpm
  • Weight 4.35 kg
  • Price（$） 513.61
Self Aligning Ball Bearings 2314 M C/4 dimension drawing
Download DWG Download PDF

Features

How Does 2314 M C/4 Bearing Handle Radial Loads?

2314 M C/4 Bearing is built with double-row chrome steel balls, offering strong radial load capacity up to 24975 lbf.
Its brass cage ensures smooth operation by keeping the balls aligned, reducing friction and wear.
The open seal design allows for easy lubrication, maintaining performance in various conditions.
With a maximum speed of 6,000 rpm, it balances durability and efficiency for industrial applications.

Application

Industrial Uses of 2314 M C/4 Bearing
2314 M C/4 Bearing is commonly used in heavy machinery like conveyors and mixers, where its self-aligning feature compensates for shaft misalignment. The double-row design helps distribute radial loads evenly, extending equipment life.

What Makes 2314 M C/4 Bearing a Preferred Choice?
In automotive applications, 2314 M C/4 Bearing fits well in wheel hubs and transmissions due to its high dynamic radial load capacity. The brass cage reduces friction, ensuring smoother rotation under stress.

Perfect Fit for Automation: 2314 M C/4 Bearing
For robotic arms and assembly lines, 2314 M C/4 Bearing offers reliable performance with its chrome steel construction. Its open seal type allows for easy relubrication, reducing downtime in continuous operations.

Light-Duty vs Heavy-Duty: Best Uses for 2314 M C/4 Bearing
In light-duty fans, 2314 M C/4 Bearing provides quiet operation, while in industrial pumps, it handles higher loads effortlessly. The metric sizing ensures compatibility across various equipment types.
