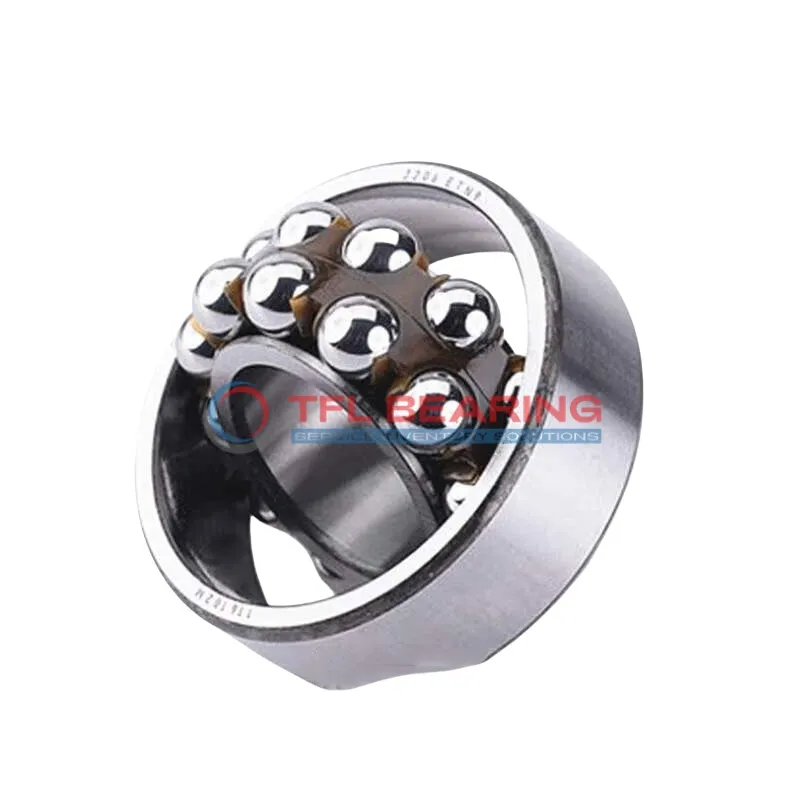

Self Aligning Ball Bearings 2313-TVH-C3

Self Aligning Ball Bearings 2313-TVH-C3

The 2313-TVH-C3 is a self-aligning ball bearing with a 65mm bore and 140mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 21510 lbf and operates smoothly at speeds up to 6300 RPM.

Its double-row design and open seal allow for easy lubrication, while the nylon cage reduces friction for quieter performance. The bearing works reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like conveyor systems or agricultural machinery where misalignment might occur.

Weighing 3.25kg, it’s a robust yet manageable option for industrial use. Compliant with RoHS and REACH standards for safety and environmental care.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2313-TVH-C3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 140 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 48 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 86 mm
  • Internal Diameter On Outer Ring 119.1 mm
  • Chamfer Dimension 2.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 21510 lbf
  • Static Radial Load 7312 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 6300 rpm
  • Weight 3.25 kg
  • Price（$） 190.42
Self Aligning Ball Bearings 2313-TVH-C3 dimension drawing
Download DWG Download PDF

Features

How Is 2313-TVH-C3 Bearing Engineered for Reliability?

2313-TVH-C3 Bearing features a double-row design with chrome steel rings and balls, ensuring strong radial load capacity.
Its dynamic radial load rating of 21510 lbf makes it suitable for heavy-duty applications.

The nylon cage in 2313-TVH-C3 Bearing helps reduce friction and noise, enhancing smooth operation.
With a maximum speed of 6,300 rpm, it delivers consistent performance in various conditions.

2313-TVH-C3 Bearing operates efficiently within a temperature range of -30° to 110 °C.
Its C3 radial clearance allows for thermal expansion, ensuring reliability in demanding environments.

Application

Industrial Uses of 2313-TVH-C3 Bearing
2313-TVH-C3 Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its self-aligning feature compensates for minor misalignments. The double-row design ensures reliable radial load support in demanding environments.

In automotive applications, 2313-TVH-C3 Bearing fits well in gearboxes and drivetrains, providing smooth operation under varying loads. Its nylon cage reduces friction, making it suitable for high-speed rotations.

For automation equipment, 2313-TVH-C3 Bearing’s open design allows easy lubrication, extending service life in robotic arms and assembly lines. The C3 clearance also accommodates thermal expansion during continuous use.

Where Is 2313-TVH-C3 Bearing Used?
You’ll often find 2313-TVH-C3 Bearing in construction equipment like cranes, where its robust construction handles heavy radial loads. The chrome steel rings offer excellent wear resistance in dusty conditions.

In printing machinery, 2313-TVH-C3 Bearing ensures precise paper handling due to its consistent performance. The metric sizing makes it a straightforward replacement for many European-made presses.

Built for Heavy-Duty Use: 2313-TVH-C3 Bearing
2313-TVH-C3 Bearing excels in mining equipment, where its dynamic load capacity withstands constant vibrations. The lubricated design minimises maintenance needs in hard-to-access areas.

For agricultural machinery, 2313-TVH-C3 Bearing’s temperature range suits outdoor use in harvesters and tractors. The self-aligning capability is handy when operating on uneven terrain.

Light-Duty vs Heavy-Duty: Best Uses for 2313-TVH-C3 Bearing
In light-duty scenarios like packaging machines, 2313-TVH-C3 Bearing offers quiet operation and efficiency. The nylon cage dampens vibrations for smoother performance.

For heavy-duty applications such as steel mills, 2313-TVH-C3 Bearing’s chrome steel construction resists deformation under extreme loads. The C3 clearance ensures reliability despite thermal fluctuations.
