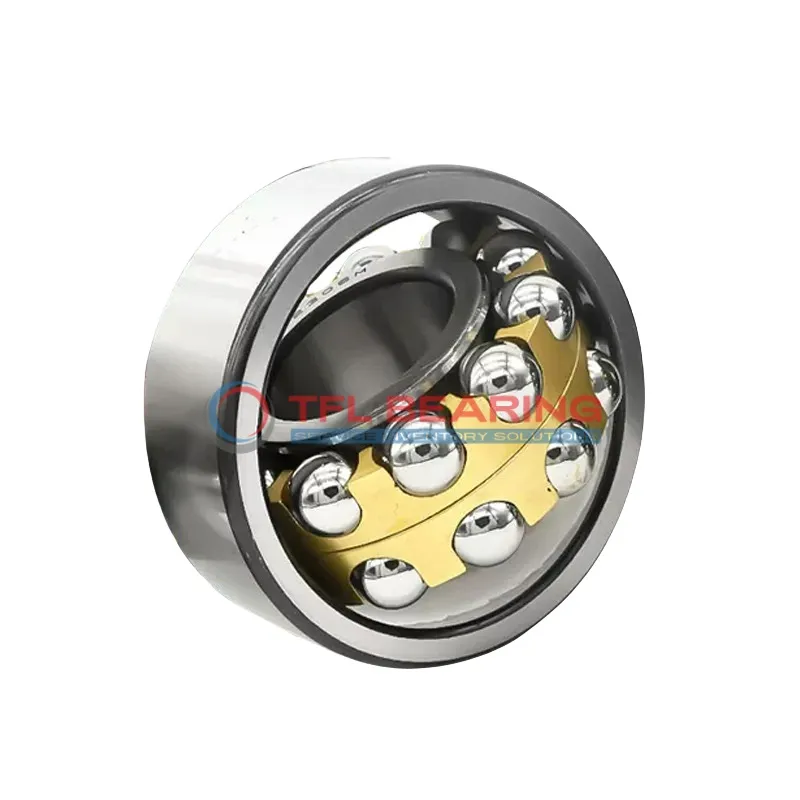

Self Aligning Ball Bearings 2313 M C/3

Brand: TFL Bearing Interchangeable: SKF 2313 M C/3 65 mm × 140 mm × 48 mm Metric Open
Part number: 2313 M C/3
Self Aligning Ball Bearings 2313 M C/3
In Stock
US$271.82 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia65 mm
Bore Dia Tolerance-0.015mm to 0
Outer Dia140 mm
Outer Dia Tolerance-0.018mm to 0
Width48 mm
Width Tolerance-0.15mm to 0
External Diameter On Inner Ring86 mm
Internal Diameter On Outer Ring119.1 mm
Chamfer Dimension2.1 mm
Performance
Dynamic Radial Load21,510 lbf
Static Radial Load7,312 lbf
Temperature Range-30° to 110 °C
Max Speed6,300 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeCylindrical
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceCN
Weight3.61 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2313 M C/3 is a self-aligning ball bearing with a 65mm bore and 140mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 21510 lbf and operates smoothly at speeds reaching 6300 RPM.

Its double-row design and open construction allow for easy lubrication and alignment adjustments. The brass cage enhances durability, making it suitable for heavy-duty use.

This bearing works well in temperatures from -30°C to 110°C, ideal for industrial machinery or conveyor systems. It’s interchangeable with SKF bearings, offering a reliable replacement option.

Weighing 3.61kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly operation.

Features

Performance Features of 2313 M C/3 Bearing

2313 M C/3 Bearing is built with chrome steel rings and balls, offering excellent resistance to radial loads.
Its dynamic radial load capacity reaches 21510 lbf, making it suitable for heavy-duty applications.

The brass cage ensures smooth ball movement, reducing friction and enhancing durability.
With a maximum speed of 6,300 rpm, it delivers reliable performance in various conditions.

2313 M C/3 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its double-row design provides stability and alignment, even under uneven loads.

The open seal type allows for easy lubrication, ensuring long service life.
Its metric dimensions (65 mm×140 mm×48 mm) make it compatible with standard systems.

Application

Industrial Uses of 2313 M C/3 Bearing
2313 M C/3 Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its double-row design helps manage radial loads efficiently. The open seal type allows for easy lubrication, extending its service life in demanding conditions.

Where Is 2313 M C/3 Bearing Used?
In automotive applications, 2313 M C/3 Bearing fits well in gearboxes and wheel hubs, providing reliable performance under varying loads. Its brass cage ensures smooth operation even at higher speeds.

Built for Heavy-Duty Use: 2313 M C/3 Bearing
For automation equipment, 2313 M C/3 Bearing supports robotic arms and assembly lines, where precision and durability are key. The chrome steel construction offers excellent resistance to wear and tear.

Light-Duty vs Heavy-Duty: Best Uses for 2313 M C/3 Bearing
In consumer electronics like printers, 2313 M C/3 Bearing ensures quiet and smooth operation. Its metric sizing makes it versatile for both light and heavy-duty applications.
