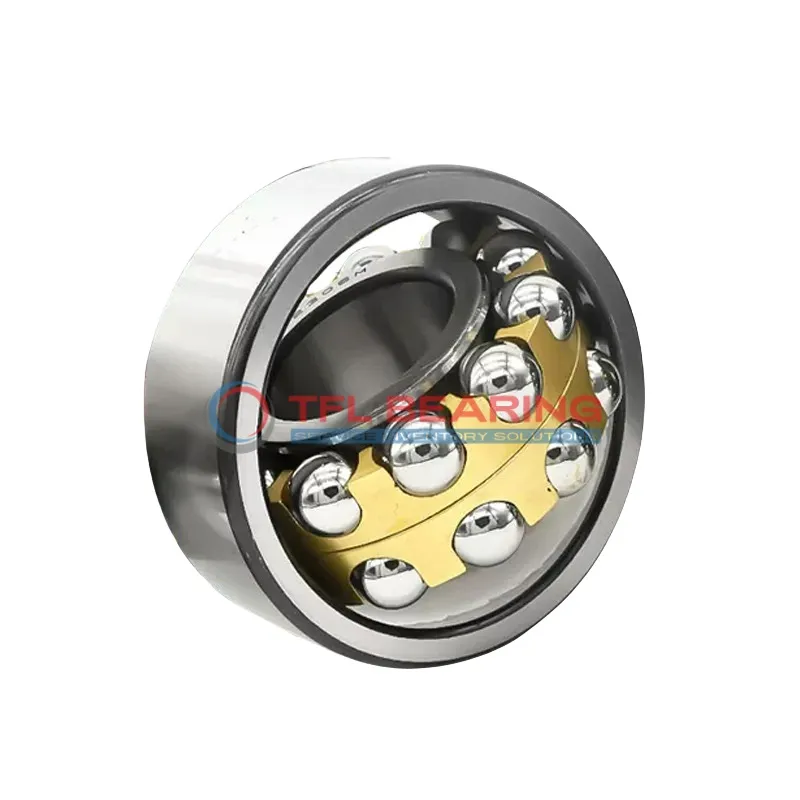

Self Aligning Ball Bearings 2313 M C/2

Brand: TFL Bearing Interchangeable: SKF 2313 M C/2 65 mm × 140 mm × 48 mm Metric Open
Part number: 2313 M C/2
Self Aligning Ball Bearings 2313 M C/2
In Stock
US$326.13 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia65 mm
Bore Dia Tolerance-0.015mm to 0
Outer Dia140 mm
Outer Dia Tolerance-0.018mm to 0
Width48 mm
Width Tolerance-0.15mm to 0
External Diameter On Inner Ring86 mm
Internal Diameter On Outer Ring119.1 mm
Chamfer Dimension2.1 mm
Performance
Dynamic Radial Load21,510 lbf
Static Radial Load7,312 lbf
Temperature Range-30° to 110 °C
Max Speed6,300 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeCylindrical
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceCN
Weight3.61 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2313 M C/2 is a self-aligning ball bearing with a 65mm bore and 140mm outer diameter, crafted from sturdy chrome steel. Its double-row design helps manage radial loads up to 21510 lbf, while maintaining smooth operation at speeds of 6300 RPM.

The open seal type allows for easy lubrication, and the brass cage enhances durability. It operates efficiently in temperatures ranging from -30°C to 110°C.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. It’s well-suited for machinery where slight misalignments or heavy radial loads are expected, such as conveyor systems or industrial fans.

Weighing 3.61kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s safe for various industrial applications.

Features

How Does 2313 M C/2 Bearing Handle Radial Loads?

2313 M C/2 Bearing features a double-row design, optimised for handling heavy radial loads up to 21510 lbf.

Its chrome steel rings and balls ensure durability, while the brass cage maintains smooth operation.

With a maximum speed of 6,300 rpm, it balances performance and reliability in various applications.

The bearing’s cylindrical bore design simplifies installation, reducing setup time and effort.

Application

Industrial Uses of 2313 M C/2 Bearing
2313 M C/2 Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its double-row design helps manage radial loads efficiently. The brass cage adds durability, making it suitable for continuous operation in demanding environments.

What Makes 2313 M C/2 Bearing a Preferred Choice?
In automotive applications, 2313 M C/2 Bearing fits well in gearboxes and wheel hubs, thanks to its cylindrical bore and chrome steel construction. Its self-aligning feature ensures smooth performance even under slight misalignments.

Perfect Fit for Automation: 2313 M C/2 Bearing
For robotic arms and automated production lines, 2313 M C/2 Bearing offers reliable performance with its open design and lubricated setup. The metric dimensions make it easy to integrate into various European and Asian machinery.

Medical vs Industrial: Where 2313 M C/2 Bearing Excels
While 2313 M C/2 Bearing is robust enough for industrial equipment, its precision also suits medical devices like imaging systems. The chrome steel rings and balls ensure long-lasting performance in both high-load and high-precision scenarios.
