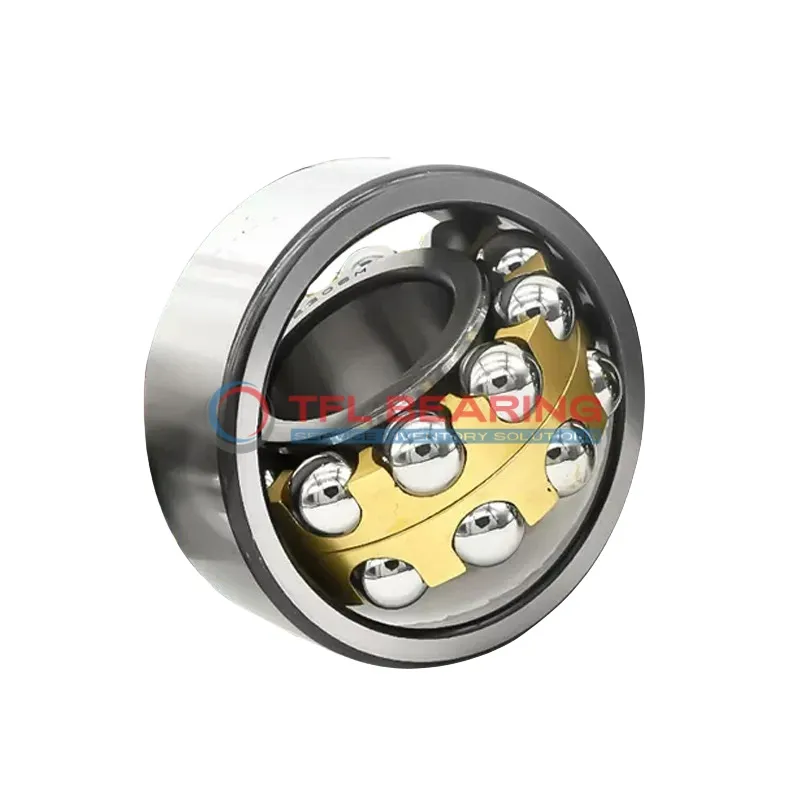

Self Aligning Ball Bearings 2313-K-M-C3

Brand: TFL Bearing Interchangeable: SKF 2313-K-M-C3 65 mm × 140 mm × 48 mm Metric Open
Part number: 2313-K-M-C3
Self Aligning Ball Bearings 2313-K-M-C3
In Stock
US$395.61 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia65 mm
Bore Dia Tolerance-0.015mm to 0
Outer Dia140 mm
Outer Dia Tolerance-0.018mm to 0
Width48 mm
Width Tolerance-0.15mm to 0
External Diameter On Inner Ring86 mm
Internal Diameter On Outer Ring119.1 mm
Chamfer Dimension2.1 mm
Performance
Dynamic Radial Load21,510 lbf
Static Radial Load7,312 lbf
Temperature Range-30° to 110 °C
Max Speed6,300 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceC3
Weight3.25 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2313-K-M-C3 is a self-aligning ball bearing with a 65mm tapered bore and 140mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 21510 lbf and operates smoothly at speeds reaching 6300 RPM.

Its double-row design and brass cage provide durability, while the open seal allows for easy lubrication. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for machinery with misalignment issues, such as conveyor systems or agricultural equipment.

Weighing 3.25kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Features

Performance Features of 2313-K-M-C3 Bearing

2313-K-M-C3 Bearing features a double-row design with chrome steel rings and balls, offering strong radial load capacity up to 21510 lbf.
Its brass cage ensures smooth operation and reduces friction, enhancing durability.
With a maximum speed of 6,300 rpm, it maintains reliable performance in various applications.
The C3 radial clearance allows for thermal expansion, making it suitable for high-temperature environments.

Application

Industrial Uses of 2313-K-M-C3 Bearing
2313-K-M-C3 Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its self-aligning feature compensates for minor misalignments. The double-row design ensures reliable performance under radial loads, making it suitable for continuous operation.

In automotive applications, 2313-K-M-C3 Bearing fits well in gearboxes and drivetrains, handling high radial forces with ease. Its brass cage provides durability, even in demanding conditions like off-road vehicles or heavy trucks.

For automation equipment, 2313-K-M-C3 Bearing’s tapered bore allows for secure mounting on shafts, essential for precision in robotic arms. The C3 clearance ensures smooth movement, reducing friction in high-speed operations.

In wind turbines, 2313-K-M-C3 Bearing’s robust construction withstands variable loads and environmental stress. The chrome steel rings and balls offer long-lasting performance, even in harsh weather conditions.

For printing machinery, 2313-K-M-C3 Bearing’s self-aligning capability maintains accuracy during high-speed paper handling. Its open design simplifies lubrication, ensuring consistent performance over time.
