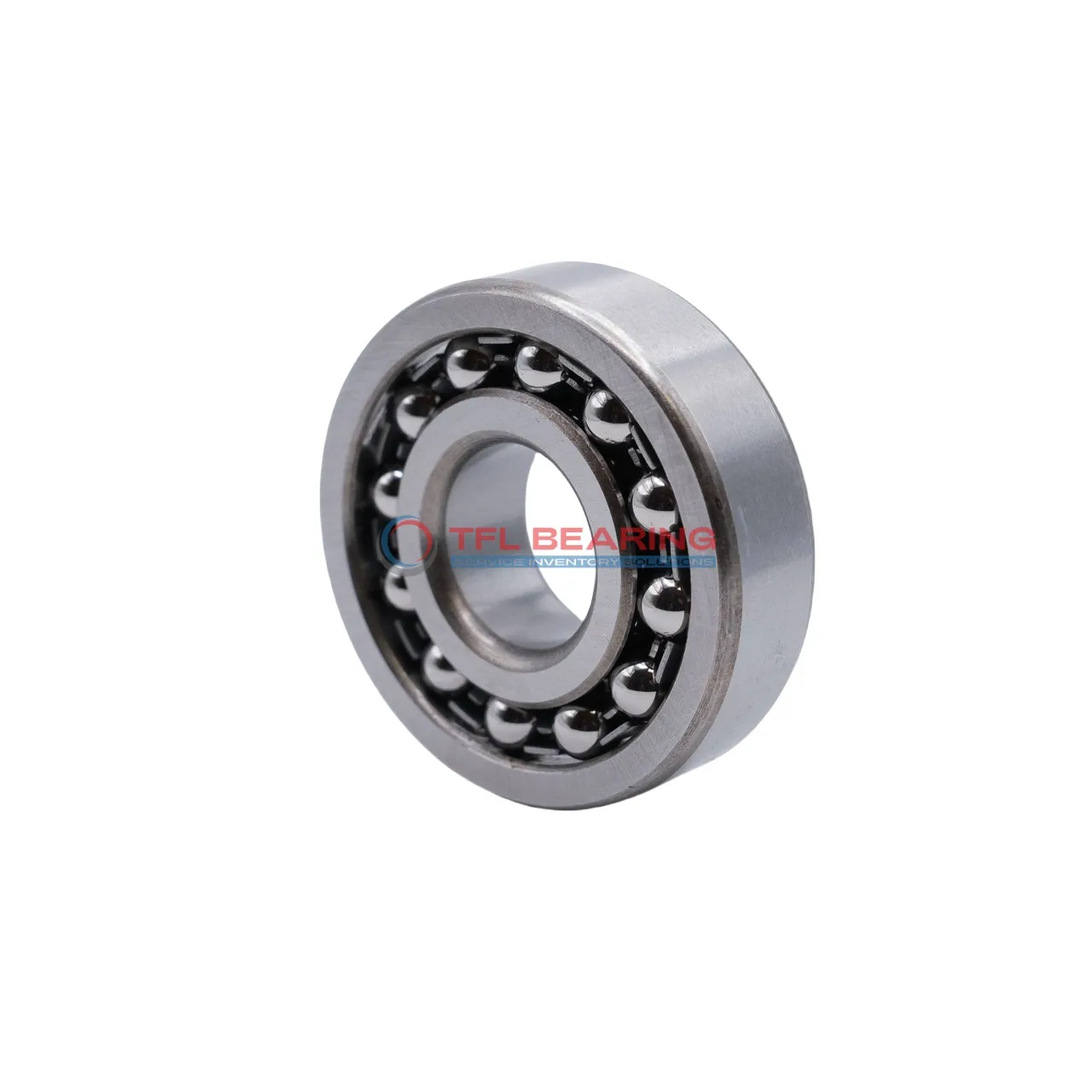

Self Aligning Ball Bearings 2313 C/2

Self Aligning Ball Bearings 2313 C/2

The 2313 C/2 is a self-aligning ball bearing with a 65mm bore and 140mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 21510 lbf and operates smoothly at speeds reaching 6300 RPM.

Its double-row design offers excellent alignment flexibility, while the open seal allows for straightforward lubrication. The stainless steel cage enhances durability and reduces wear.

Suitable for temperatures between -30°C and 110°C, this bearing is ideal for heavy machinery or conveyor systems where misalignment might occur.

Weighing 3.25kg, it’s a robust choice for industrial applications. Compliant with RoHS and REACH standards, it’s interchangeable with SKF models for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2313 C/2
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 140 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 48 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 86 mm
  • Internal Diameter On Outer Ring 119.1 mm
  • Chamfer Dimension 2.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 21510 lbf
  • Static Radial Load 7312 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 6300 rpm
  • Weight 3.25 kg
  • Price（$） 244.22
Self Aligning Ball Bearings 2313 C/2 dimension drawing
Download DWG Download PDF

Features

Performance Features of 2313 C/2 Bearing

2313 C/2 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 21510 lbf, ensuring reliable performance in various applications.

The double-row design of 2313 C/2 Bearing enhances load distribution, reducing wear and extending service life.
With a maximum speed of 6,300 rpm, it balances durability and efficiency.

2313 C/2 Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its stainless steel cage keeps the balls aligned, ensuring consistent performance.

The open seal design of 2313 C/2 Bearing allows for easy lubrication and maintenance.
Its precise dimensions and tolerances ensure a perfect fit in various machinery.

Application

Industrial Uses of 2313 C/2 Bearing
2313 C/2 Bearing is commonly used in heavy machinery like paper mills and mining equipment, where its self-aligning feature compensates for shaft misalignment. The double-row design ensures stable performance under significant radial loads.

Where Is 2313 C/2 Bearing Used?
You’ll often find 2313 C/2 Bearing in conveyor systems and industrial fans, where its chrome steel construction handles high-speed rotations smoothly. The open seal type allows for easy lubrication, extending its service life.

Built for Heavy-Duty Use: 2313 C/2 Bearing
2313 C/2 Bearing excels in construction equipment, supporting radial loads in mixers and crushers. Its stainless steel cage adds durability, making it suitable for harsh environments.

Automotive vs Aerospace: Applications of 2313 C/2 Bearing
In automotive applications, 2313 C/2 Bearing is used in gearboxes and drivetrains, while in aerospace, it supports auxiliary systems. The metric sizing ensures compatibility across various industries.

Perfect Fit for Automation: 2313 C/2 Bearing
2313 C/2 Bearing is ideal for robotic arms and automated assembly lines, where precision and reliability are key. Its self-aligning capability reduces wear, even with slight misalignments.
