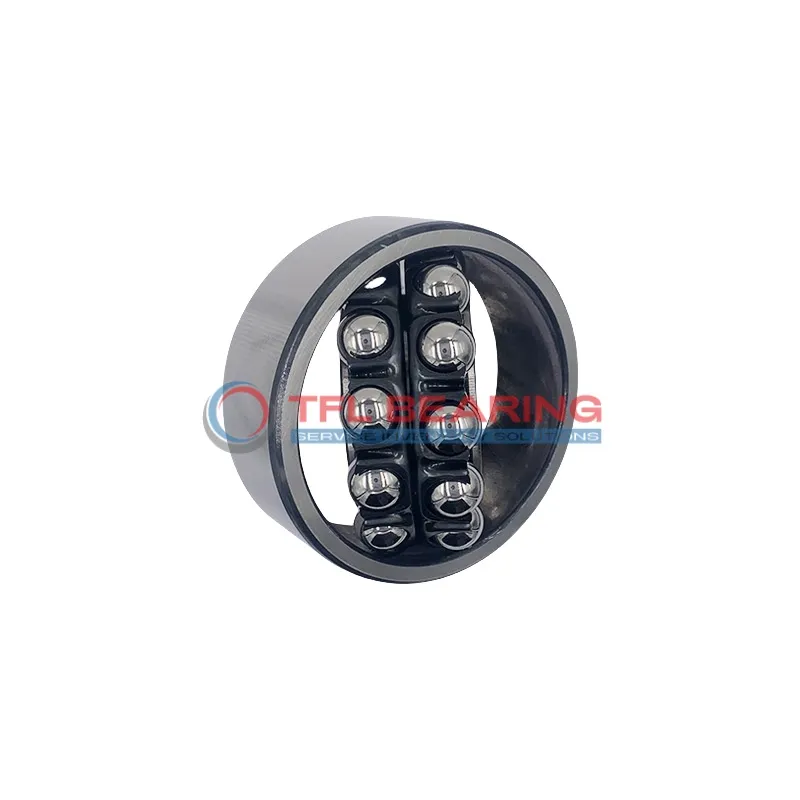

Self Aligning Ball Bearings 2311KJC3

Brand: TFL Bearing Interchangeable: SKF 2311KJC3 55 mm × 120 mm × 43 mm Metric Open
Part number: 2311KJC3
Self Aligning Ball Bearings 2311KJC3
In Stock
US$135.42 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia55 mm
Bore Dia Tolerance-0.015mm to 0
Outer Dia120 mm
Outer Dia Tolerance-0.015mm to 0
Width43 mm
Width Tolerance-0.15mm to 0
External Diameter On Inner Ring72 mm
Internal Diameter On Outer Ring101 mm
Chamfer Dimension2 mm
Performance
Dynamic Radial Load17,122 lbf
Static Radial Load5,400 lbf
Temperature Range-30° to 110 °C
Max Speed7,500 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceC3
Weight2.1 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialSteel
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2311KJC3 is a self-aligning ball bearing with a 55mm tapered bore and 120mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 17122 lbf and operates smoothly at speeds reaching 7500 RPM.

Its double-row design and open construction allow for easy lubrication and alignment adjustments, while the steel cage ensures durability. The bearing performs reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like conveyor systems or agricultural machinery where misalignment might occur.

Weighing 2.1kg, it offers a robust solution for heavy-duty use. Compliant with RoHS and REACH standards for safe and eco-friendly operation.

Features

Performance Features of 2311KJC3 Bearing

2311KJC3 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 17122 lbf, making it suitable for heavy-duty applications.

The double-row design of 2311KJC3 Bearing ensures smooth operation and better load distribution.
With a maximum speed of 7,500 rpm, it provides reliable performance in various conditions.

2311KJC3 Bearing’s C3 radial clearance allows for thermal expansion, enhancing its durability.
The steel cage maintains ball alignment, reducing friction and extending service life.

Designed for radial loads, 2311KJC3 Bearing works well in temperatures from -30° to 110°C.
Its open seal type simplifies maintenance while ensuring efficient lubrication.

Application

Industrial Uses of 2311KJC3 Bearing
2311KJC3 Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its self-aligning feature compensates for minor misalignments. The double-row design ensures reliable radial load support in demanding environments.

What Makes 2311KJC3 Bearing a Preferred Choice?
In automotive applications, 2311KJC3 Bearing fits well in gearboxes and drivetrains, thanks to its tapered bore for secure mounting. The chrome steel construction offers durability under high-speed conditions.

Built for Heavy-Duty Use: 2311KJC3 Bearing
For automation equipment, 2311KJC3 Bearing provides smooth operation in robotic arms and assembly lines. Its C3 radial clearance allows for thermal expansion, making it suitable for varied temperatures.

Medical vs Industrial: Where 2311KJC3 Bearing Excels
While 2311KJC3 Bearing handles radial loads in industrial pumps, its precision also benefits medical imaging devices. The steel cage ensures long-term performance with minimal maintenance.

Where to Use 2311KJC3 Bearing
In household appliances like washing machines, 2311KJC3 Bearing reduces vibration and noise. The lubricated design ensures quiet operation, enhancing user comfort.
