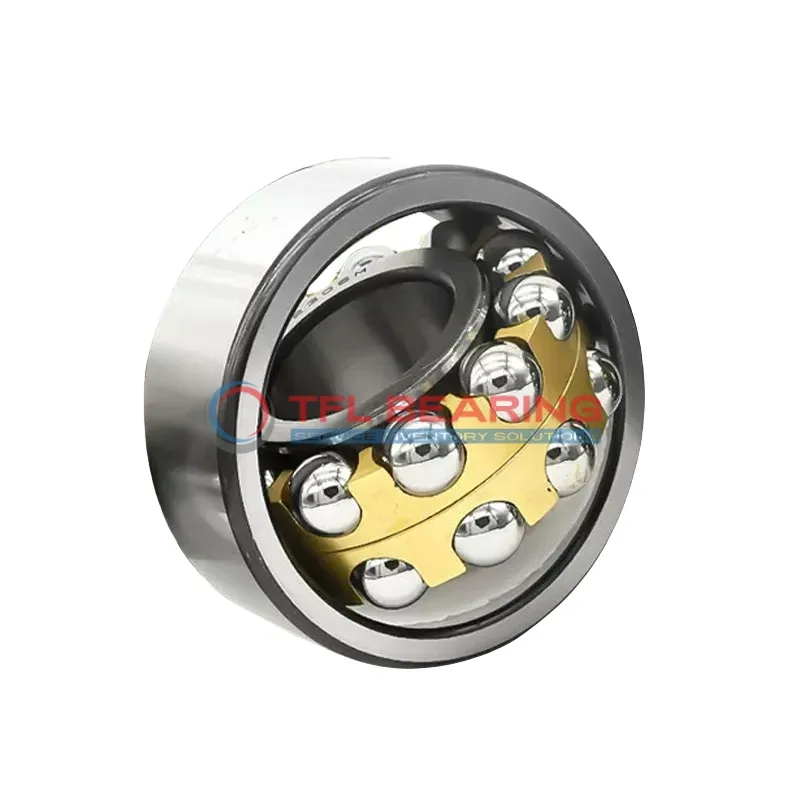

Self Aligning Ball Bearings 2311 M C/3

Brand: TFL Bearing Interchangeable: SKF 2311 M C/3 55 mm × 120 mm × 43 mm Metric Open
Part number: 2311 M C/3
Self Aligning Ball Bearings 2311 M C/3
In Stock
US$197.18 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia55 mm
Bore Dia Tolerance-0.015mm to 0
Outer Dia120 mm
Outer Dia Tolerance-0.015mm to 0
Width43 mm
Width Tolerance-0.15mm to 0
External Diameter On Inner Ring72 mm
Internal Diameter On Outer Ring101 mm
Chamfer Dimension2 mm
Performance
Dynamic Radial Load17,122 lbf
Static Radial Load5,400 lbf
Temperature Range-30° to 110 °C
Max Speed7,500 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeCylindrical
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceCN
Weight2.34 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2311 M C/3 is a self-aligning ball bearing with a 55mm bore and 120mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 17122 lbf and operates smoothly at speeds up to 7500 RPM.

Its double-row design and brass cage provide durability and reduce friction, while the open seal allows for easy lubrication. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for machinery with misalignment issues, such as conveyor systems or agricultural equipment.

Weighing 2.34kg, it’s a robust choice for heavy-duty applications. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Features

How Does 2311 M C/3 Bearing Handle Radial Loads?

2311 M C/3 Bearing features a double-row design, providing excellent radial load capacity up to 17122 lbf.
Its chrome steel rings and balls ensure durability and resistance to wear in demanding applications.
The brass cage maintains ball alignment, reducing friction and extending service life.
With a maximum speed of 7,500 rpm, it offers reliable performance across various conditions.

Application

Industrial Uses of 2311 M C/3 Bearing
2311 M C/3 Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its self-aligning feature compensates for minor misalignments. The double-row design ensures reliable radial load handling, making it suitable for continuous operation.

Where Is 2311 M C/3 Bearing Used?
In automotive applications, 2311 M C/3 Bearing fits well in gearboxes and drivetrains, providing smooth performance under varying loads. Its brass cage enhances durability, especially in high-temperature environments.

Built for Heavy-Duty Use: 2311 M C/3 Bearing
For automation equipment, 2311 M C/3 Bearing offers precise movement in robotic arms and assembly lines. The open seal design allows for easy lubrication, extending its service life.

Medical vs Industrial: Where 2311 M C/3 Bearing Excels
In medical devices like imaging equipment, 2311 M C/3 Bearing’s chrome steel construction ensures consistent performance. Its radial clearance (CN) makes it adaptable to both industrial and precision medical applications.
