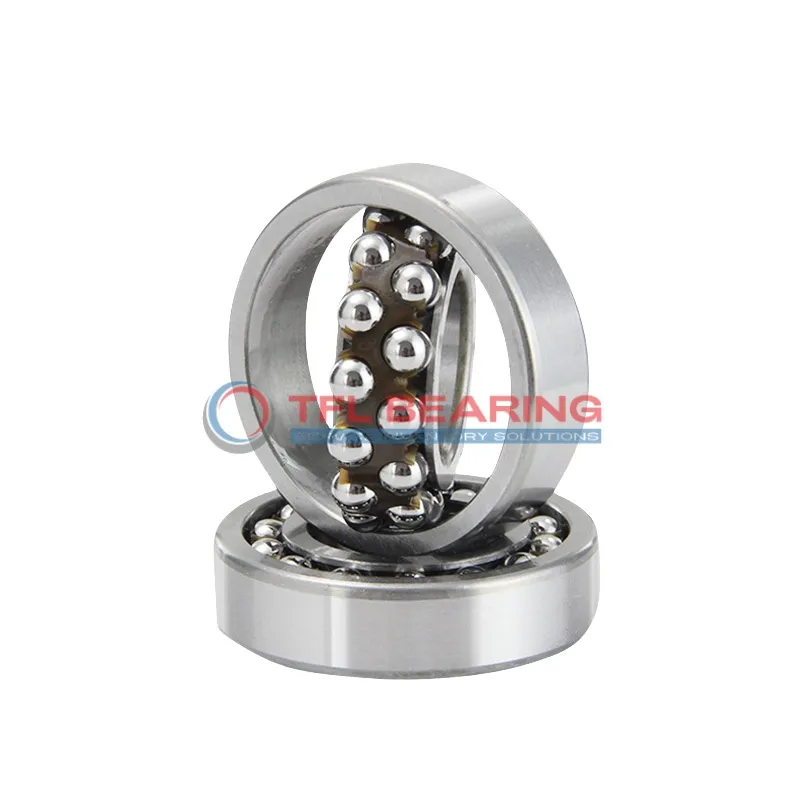

Self Aligning Ball Bearings 2308 P/6

Self Aligning Ball Bearings 2308 P/6

The 2308 P/6 is a self-aligning ball bearing with a 40mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 7605 lbf and operates smoothly at speeds up to 4800 RPM.

Its sealed design keeps lubrication intact, while the nylon cage reduces friction for quieter performance. The double-row construction helps it handle misalignment in demanding setups.

This bearing suits applications like conveyor systems or agricultural machinery where alignment flexibility is key. It works reliably in temperatures from -30°C to 110°C.

Weighing 0.96kg, it offers a balanced mix of strength and adaptability. Compliant with RoHS and REACH standards, it’s a dependable choice for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2308 P/6
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 33 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 55.4 mm
  • Internal Diameter On Outer Ring 81.8 mm
  • Chamfer Dimension 1.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 7605 lbf
  • Static Radial Load 2520 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4800 rpm
  • Weight 0.96 kg
  • Price（$） 85.4
Self Aligning Ball Bearings 2308 P/6 dimension drawing
Download DWG Download PDF

Features

How Does 2308 P/6 Bearing Reduce Friction?

2308 P/6 Bearing features a double-row ball design with chrome steel components, ensuring smooth operation under radial loads.
The nylon cage helps maintain ball alignment, reducing friction and wear during use.
Its dynamic radial load capacity of 7605 lbf makes it suitable for demanding applications.
With a maximum speed of 4,800 rpm, it offers reliable performance in various conditions.

Application

Industrial Uses of 2308 P/6 Bearing
2308 P/6 Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its double-row design handles radial loads efficiently. The sealed construction keeps contaminants out, extending service life in dusty environments.

What Makes 2308 P/6 Bearing a Preferred Choice?
In automotive applications, 2308 P/6 Bearing fits well in wheel hubs and transmissions, thanks to its self-aligning feature that compensates for minor misalignments. The nylon cage reduces noise, making it ideal for smoother rides.

Built for Versatility: 2308 P/6 Bearing
For automation equipment, 2308 P/6 Bearing’s lubricated design ensures low friction in robotic arms and assembly lines. Its chrome steel rings provide durability even with continuous operation.

Medical vs Industrial: Where 2308 P/6 Bearing Excels
While 2308 P/6 Bearing performs reliably in industrial settings, its precision also suits medical devices like diagnostic equipment. The consistent radial clearance ensures accurate readings in sensitive instruments.
