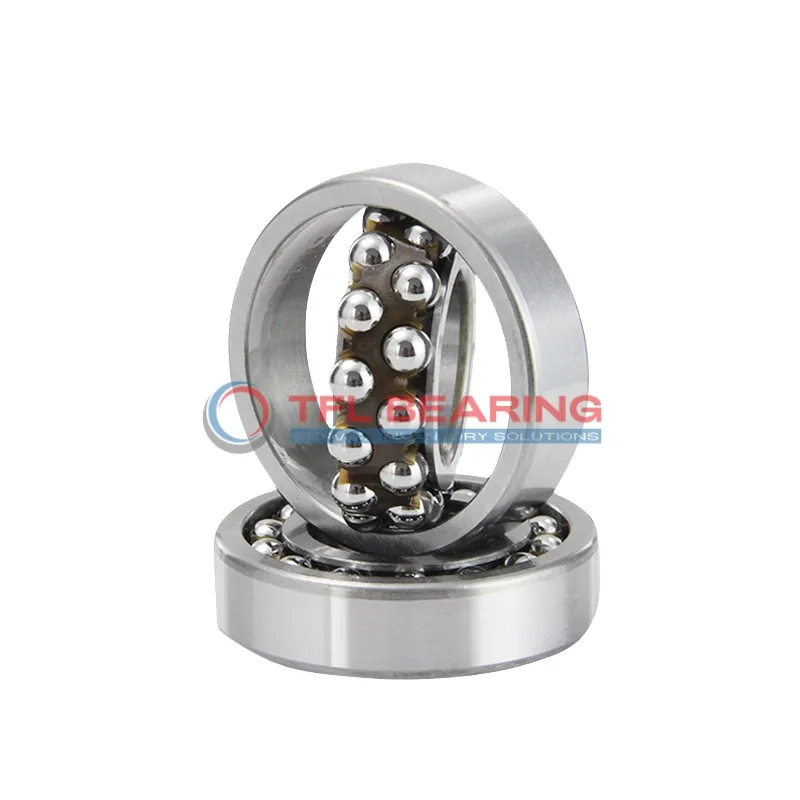

Self Aligning Ball Bearings 2308-K-TVH

Self Aligning Ball Bearings 2308-K-TVH

The 2308-K-TVH is a self-aligning ball bearing with a 40mm tapered bore and 90mm outer diameter, built to handle radial loads up to 7605 lbf. Its double-row design and sealed construction offer smooth operation at speeds up to 4800 RPM.

Made from chrome steel with a nylon cage, it’s durable and lightweight at 0.96kg. The bearing works in temperatures from -30°C to 110°C and comes pre-lubricated for easy installation.

The self-aligning feature helps compensate for misalignment, reducing wear in uneven setups. Ideal for machinery like conveyors or agricultural equipment where alignment isn’t always perfect.

Compliant with RoHS and REACH standards, it’s interchangeable with SKF bearings for hassle-free replacements. A reliable choice for heavy-duty radial load applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2308-K-TVH
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 33 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 55.4 mm
  • Internal Diameter On Outer Ring 81.8 mm
  • Chamfer Dimension 1.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 7605 lbf
  • Static Radial Load 2520 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4800 rpm
  • Weight 0.96 kg
Self Aligning Ball Bearings 2308-K-TVH dimension drawing
Download DWG Download PDF

Features

Why Choose 2308-K-TVH Bearing for Precision Tasks?

2308-K-TVH Bearing features a double-row design with chrome steel rings and balls, ensuring precise radial load handling.
Its dynamic radial load capacity of 7605 lbf makes it suitable for demanding industrial applications.

The sealed construction and nylon cage reduce friction and protect against contaminants.
With a maximum speed of 4,800 rpm, it offers reliable performance in various conditions.

2308-K-TVH Bearing operates smoothly within a temperature range of -30° to 110°C.
Its tapered bore design ensures easy installation and secure fit.

Application

Industrial Uses of 2308-K-TVH Bearing
2308-K-TVH Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its self-aligning feature compensates for minor misalignments. The sealed design keeps contaminants out, ensuring longer service life in dusty environments.

What Makes 2308-K-TVH Bearing a Preferred Choice?
In automotive applications, 2308-K-TVH Bearing is ideal for wheel hubs and transmissions, thanks to its double-row construction handling radial loads efficiently. The taper bore design ensures a secure fit, reducing slippage during high-speed operations.

Perfect Fit for Automation: 2308-K-TVH Bearing
For robotic arms and automated production lines, 2308-K-TVH Bearing offers smooth movement with its nylon cage reducing friction. Its consistent performance under varying loads makes it reliable for precision tasks.

Medical vs Industrial: Where 2308-K-TVH Bearing Excels
While 2308-K-TVH Bearing is robust enough for industrial pumps, its precision also suits medical imaging devices. The chrome steel construction provides durability, while the sealed design maintains hygiene in sensitive environments.

Light-Duty vs Heavy-Duty: Best Uses for 2308-K-TVH Bearing
In light-duty applications like household appliances, 2308-K-TVH Bearing ensures quiet operation. For heavy-duty uses such as construction equipment, its high load capacity and durability stand out.
