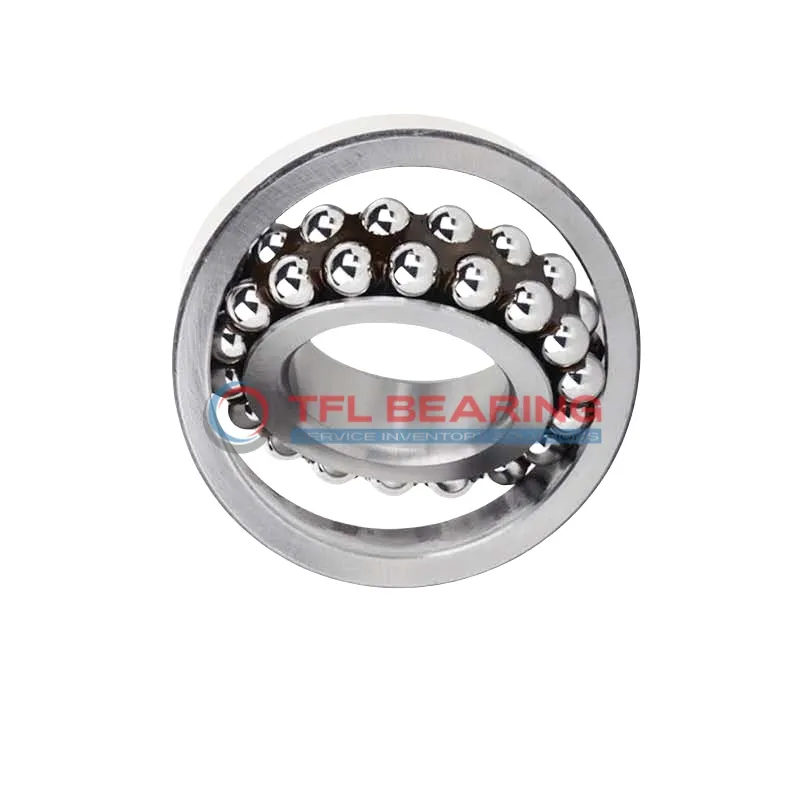

Self Aligning Ball Bearings 2307TNC3

Self Aligning Ball Bearings 2307TNC3

The 2307TNC3 is a self-aligning ball bearing with a 35mm bore and 80mm outer diameter, designed for radial loads. Its compact size (35mm x 80mm x 31mm) makes it suitable for tight spaces while handling loads up to 5962 lbf.

The double-row construction and sealed design help maintain smooth operation at speeds up to 5600 RPM. The nylon cage reduces noise and vibration, ideal for quieter applications.

This bearing can handle temperatures from -30°C to 110°C and comes pre-lubricated for easy installation. It’s interchangeable with SKF bearings, offering a reliable replacement option.

Perfect for machinery where misalignment might occur, such as conveyor systems or agricultural equipment. Compliant with RoHS and REACH standards, it’s both durable and safe to use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2307TNC3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 31 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 43.7 mm
  • Internal Diameter On Outer Ring 69.2 mm
  • Chamfer Dimension 1.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 5962 lbf
  • Static Radial Load 1912 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5600 rpm
  • Weight 0.7 kg
  • Price（$） 72.5
Self Aligning Ball Bearings 2307TNC3 dimension drawing
Download DWG Download PDF

Features

How Does 2307TNC3 Bearing Reduce Friction?

2307TNC3 Bearing features a double-row ball design with chrome steel rings and balls, ensuring smooth radial load distribution.
The sealed construction and nylon cage minimise friction, enhancing operational efficiency.
With a dynamic radial load capacity of 5962 lbf, it performs reliably under significant stress.
Its C3 radial clearance allows for thermal expansion, maintaining performance in varying temperatures.

Application

Common Applications of 2307TNC3 Bearing
2307TNC3 Bearing is widely used in industrial machinery, especially in conveyor systems and fans, where its self-aligning feature compensates for minor misalignments. The sealed design helps keep contaminants out, extending service life in dusty environments.

In automotive applications, 2307TNC3 Bearing fits well in wheel hubs and transmission systems, offering reliable radial load support. Its nylon cage reduces noise, making it suitable for vehicles where quiet operation is valued.

For automation equipment, 2307TNC3 Bearing ensures smooth movement in robotic arms and assembly lines. The C3 radial clearance allows for thermal expansion, maintaining performance in varying temperatures.

Medical devices like centrifuges benefit from 2307TNC3 Bearing’s precision and low maintenance. The lubricated design ensures consistent operation without frequent servicing.

In household appliances such as washing machines, 2307TNC3 Bearing provides durability and quiet performance. Its metric dimensions make it easy to replace in European and Asian models.
