Self Aligning Ball Bearings 2307-K-TVH-C3

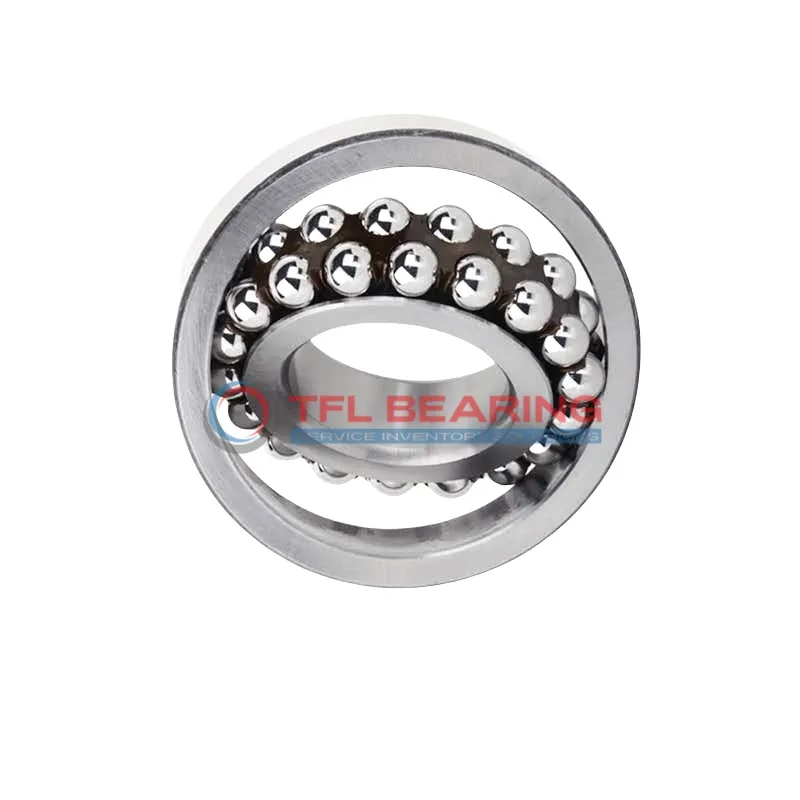

Self Aligning Ball Bearings 2307-K-TVH-C3

The 2307-K-TVH-C3 is a self-aligning ball bearing with a 35mm tapered bore and 80mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 5962 lbf and operates smoothly at speeds up to 5600 RPM.

Its double-row design and sealed construction help it stay aligned and protected from dust, while the nylon cage reduces noise. The bearing comes pre-lubricated and works in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like conveyor systems or agricultural machinery where misalignment might occur.

Weighing 0.7kg, it’s a robust yet manageable size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2307-K-TVH-C3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 31 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 43.7 mm
  • Internal Diameter On Outer Ring 69.2 mm
  • Chamfer Dimension 1.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 5962 lbf
  • Static Radial Load 1912 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5600 rpm
  • Weight 0.7 kg
  • Price（$） 67.38
Self Aligning Ball Bearings 2307-K-TVH-C3 dimension drawing
Download DWG Download PDF

Features

How Is 2307-K-TVH-C3 Bearing Engineered for Reliability?

2307-K-TVH-C3 Bearing features a double-row design with chrome steel rings and balls, ensuring strong radial load capacity.
Its dynamic radial load reaches 5962 lbf, making it suitable for demanding applications.

The sealed construction and nylon cage help maintain lubrication and reduce wear.
This design ensures smooth operation even in challenging conditions.

With a maximum speed of 5,600 rpm, it balances performance and durability.
The C3 radial clearance allows for thermal expansion, enhancing reliability.

Application

Industrial Uses of 2307-K-TVH-C3 Bearing
2307-K-TVH-C3 Bearing is commonly used in industrial machinery, especially in applications where misalignment compensation is needed, like conveyor systems and fans. Its double-row design helps handle radial loads efficiently, while the sealed construction keeps contaminants out.

Where Is 2307-K-TVH-C3 Bearing Used?
In automotive applications, 2307-K-TVH-C3 Bearing fits well in gearboxes and drive shafts, thanks to its tapered bore for secure mounting. The nylon cage reduces noise, making it suitable for smoother vehicle operation.

Built for Heavy-Duty Use: 2307-K-TVH-C3 Bearing
For automation equipment, 2307-K-TVH-C3 Bearing offers reliable performance in robotic arms and assembly lines. Its C3 radial clearance ensures flexibility under varying loads and speeds.

Medical vs Industrial: Where 2307-K-TVH-C3 Bearing Excels
In medical devices like imaging equipment, 2307-K-TVH-C3 Bearing provides quiet and precise movement. Meanwhile, in industrial settings, its durability shines in heavy machinery and pumps.

Practical Applications of 2307-K-TVH-C3 Bearing
2307-K-TVH-C3 Bearing works well in household appliances, such as washing machines, where its self-aligning feature compensates for shaft misalignment. The lubricated design ensures long service life with minimal maintenance.
