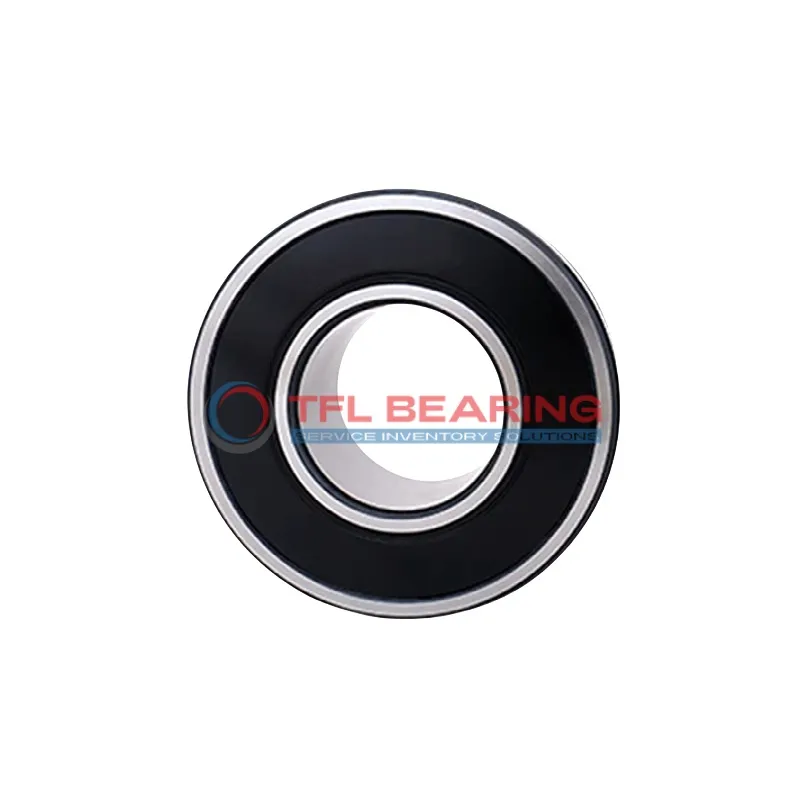

Self Aligning Ball Bearings 2307 E-2RS1KTN9

Self Aligning Ball Bearings 2307 E-2RS1KTN9

The 2307 E-2RS1KTN9 is a self-aligning ball bearing with a 35mm bore and 80mm outer diameter, designed for radial loads. Its compact size (35mm x 80mm x 31mm) makes it suitable for tight spaces, while the chrome steel construction ensures durability.

This double-row bearing handles radial loads up to 5962 lbf and operates smoothly at speeds up to 5600 RPM. The sealed design keeps lubrication in and contaminants out, reducing maintenance needs.

Its self-aligning feature compensates for minor misalignments, making it ideal for applications like conveyor systems or agricultural machinery. The nylon cage provides quiet operation and reduces friction.

Weighing 0.7kg, it’s a robust choice for industrial use. Compliant with RoHS and REACH standards, it’s also interchangeable with SKF bearings for easy replacement. Works well in temperatures from -30°C to 110°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2307 E-2RS1KTN9
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 31 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 43.7 mm
  • Internal Diameter On Outer Ring 69.2 mm
  • Chamfer Dimension 1.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 5962 lbf
  • Static Radial Load 1912 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5600 rpm
  • Weight 0.7 kg
  • Price（$） 59.15
Self Aligning Ball Bearings 2307 E-2RS1KTN9 dimension drawing
Download DWG Download PDF

Features

Why Choose 2307 E-2RS1KTN9 Bearing for Precision Tasks?

2307 E-2RS1KTN9 Bearing features a double-row design, providing excellent radial load capacity up to 5962 lbf.
Its chrome steel rings and balls ensure durability and smooth operation in various applications.

The sealed design of 2307 E-2RS1KTN9 Bearing protects against contaminants, making it suitable for harsh environments.
With a maximum speed of 5,600 rpm, it balances performance and reliability.

2307 E-2RS1KTN9 Bearing’s nylon cage reduces noise and vibration, enhancing operational efficiency.
Its lubricated design ensures minimal maintenance, saving time and costs.

Application

Common Applications of 2307 E-2RS1KTN9 Bearing
2307 E-2RS1KTN9 Bearing is widely used in industrial equipment like conveyor systems and fans, where its self-aligning feature compensates for minor misalignments. The sealed design keeps contaminants out, ensuring longer service life in dusty environments.

In automotive applications, 2307 E-2RS1KTN9 Bearing is often found in suspension systems and gearboxes, providing reliable radial load support. Its nylon cage reduces vibration and noise, enhancing driving comfort.

For automation and robotics, 2307 E-2RS1KTN9 Bearing is a solid choice for robotic arms and 3D printers, thanks to its smooth operation and durability. The metric sizing makes it easy to integrate into various European and Asian machinery designs.

Where Is 2307 E-2RS1KTN9 Bearing Used?
You’ll often spot 2307 E-2RS1KTN9 Bearing in household appliances like washing machines and fans, where its sealed construction prevents grease leakage. The chrome steel rings ensure it handles everyday wear without issues.

In medical devices, 2307 E-2RS1KTN9 Bearing is used in imaging equipment and lab instruments, where precision and reliability are key. The lubricated design ensures quiet operation, crucial for sensitive environments.

Built for Heavy-Duty Use: 2307 E-2RS1KTN9 Bearing
2307 E-2RS1KTN9 Bearing excels in construction machinery, handling heavy radial loads with ease. Its robust chrome steel construction and nylon cage make it a dependable choice for tough conditions.

For agricultural equipment, 2307 E-2RS1KTN9 Bearing is ideal in tractors and harvesters, where dirt and moisture resistance are essential. The sealed design keeps the bearing protected in harsh outdoor environments.
