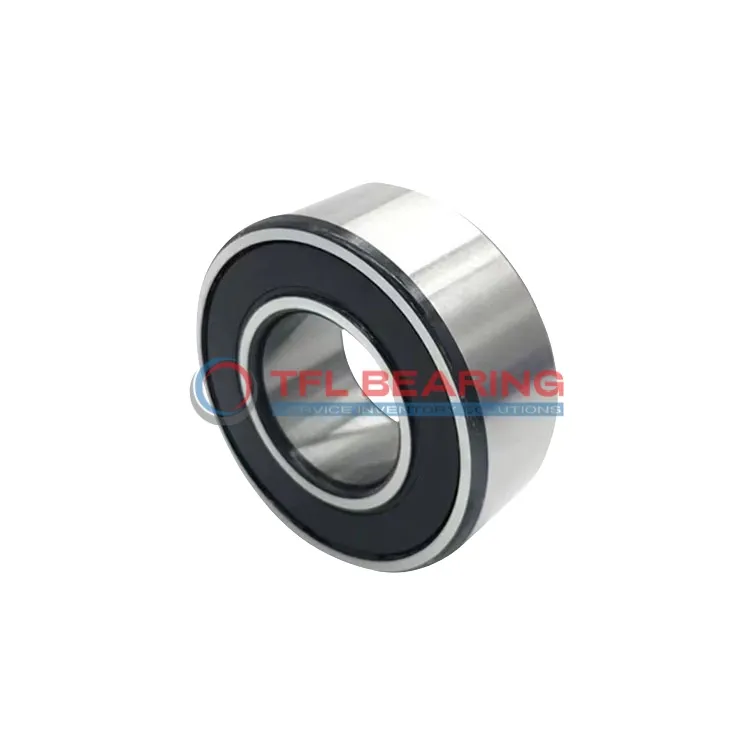

Self Aligning Ball Bearings 2306E-2RS

Self Aligning Ball Bearings 2306E-2RS

The 2306E-2RS is a self-aligning ball bearing with a 30mm bore and 72mm outer diameter, crafted from robust chrome steel. It manages radial loads up to 5062 lbf and operates smoothly at speeds reaching 6700 RPM.

Its double-row design and sealed construction help maintain alignment and protect against contaminants. The nylon cage reduces friction, enhancing durability.

Pre-lubricated for easy use, it performs reliably in temperatures from -30°C to 110°C. Ideal for applications like conveyor systems or agricultural machinery where slight misalignments may occur.

Weighing 0.51kg, it’s a sturdy yet manageable choice. Compliant with RoHS and REACH standards, ensuring safety and environmental friendliness.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2306E-2RS
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 27 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 40.4 mm
  • Internal Diameter On Outer Ring 61.88 mm
  • Chamfer Dimension 1.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 5062 lbf
  • Static Radial Load 1530 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 6700 rpm
  • Weight 0.51 kg
  • Price（$） 92.65
Self Aligning Ball Bearings 2306E-2RS dimension drawing
Download DWG Download PDF

Features

Why Choose 2306E-2RS Bearing for Precision Tasks?

2306E-2RS Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load rating of 5062 lbf makes it suitable for demanding applications.
The sealed construction and nylon cage provide smooth operation with minimal maintenance.
With a maximum speed of 6,700 rpm, it offers reliable performance in various conditions.

Application

Industrial Uses of 2306E-2RS Bearing
2306E-2RS Bearing is commonly used in conveyor systems, where its self-aligning feature helps compensate for minor misalignments. The sealed design keeps contaminants out, extending service life in dusty environments.

Where Is 2306E-2RS Bearing Used?
In agricultural machinery, 2306E-2RS Bearing handles radial loads in equipment like grain augers. Its nylon cage reduces friction, making it suitable for moderate-speed applications.

Built for Heavy-Duty Use: 2306E-2RS Bearing
2306E-2RS Bearing supports rotating shafts in industrial fans, withstanding vibrations and radial loads. The chrome steel construction ensures durability in continuous operation.

Automotive vs Aerospace: Applications of 2306E-2RS Bearing
In automotive wheel hubs, 2306E-2RS Bearing provides reliable performance under varying loads. Its metric sizing makes it compatible with many European vehicle designs.

Perfect Fit for Automation: 2306E-2RS Bearing
2306E-2RS Bearing works well in robotic arms, where its double-row design accommodates multi-directional forces. The lubricated seals maintain smooth movement over time.
