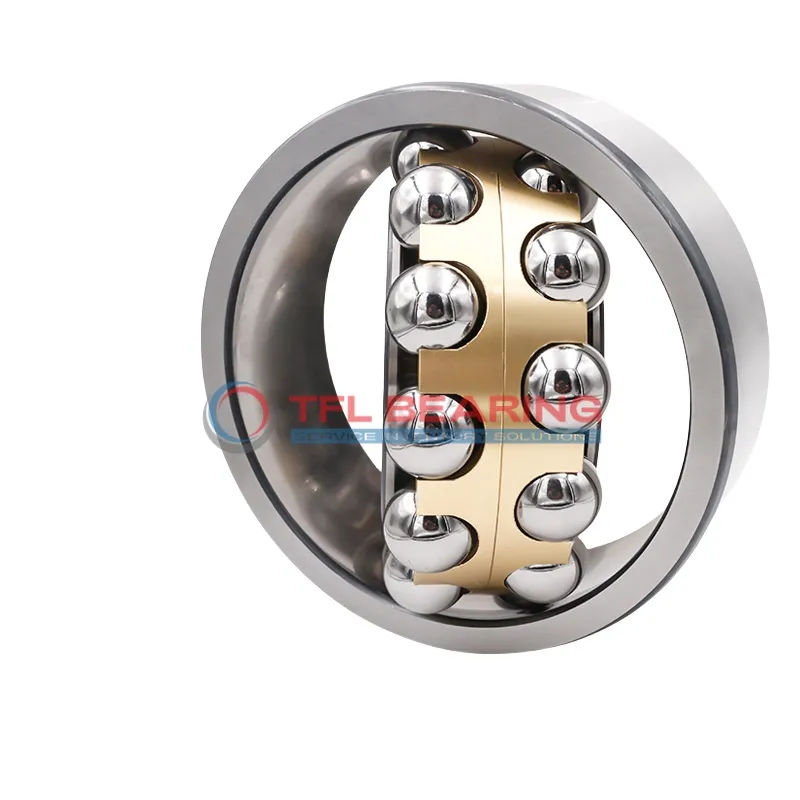

Self Aligning Ball Bearings 2220-KM C/4

Brand: TFL Bearing Interchangeable: SKF 2220-KM C/4 100 mm × 180 mm × 46 mm Metric Open
Part number: 2220-KM C/4
Self Aligning Ball Bearings 2220-KM C/4
In Stock
US$763.14 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia100 mm
Bore Dia Tolerance-0.02mm to 0
Outer Dia180 mm
Outer Dia Tolerance-0.025mm to 0
Width46 mm
Width Tolerance-0.2mm to 0
External Diameter On Inner Ring124 mm
Internal Diameter On Outer Ring156.9 mm
Chamfer Dimension2.1 mm
Performance
Dynamic Radial Load21,938 lbf
Static Radial Load9,112 lbf
Temperature Range-30° to 110 °C
Max Speed4,800 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceCN
Weight5 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2220-KM C/4 is a self-aligning ball bearing with a 100mm tapered bore and 180mm outer diameter, built to handle radial loads up to 21938 lbf. Its double-row design and chrome steel construction ensure durability and smooth operation at speeds up to 4800 RPM.

The brass cage reduces friction, while the open seal allows for easy lubrication. It operates efficiently in temperatures ranging from -30°C to 110°C, making it suitable for varied environments.

This bearing is interchangeable with SKF models, offering a reliable replacement option. Ideal for heavy machinery or industrial equipment where misalignment might occur.

Weighing 5kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Features

Why Choose 2220-KM C/4 Bearing for Precision Tasks?

2220-KM C/4 Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load rating of 21938 lbf makes it suitable for demanding industrial applications.
The brass cage maintains ball alignment, reducing friction and enhancing durability.
With a maximum speed of 4,800 rpm, it offers reliable performance in precision tasks.

Application

Industrial Uses of 2220-KM C/4 Bearing
The 2220-KM C/4 Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its self-aligning feature compensates for minor misalignments. Its double-row design ensures reliable performance under radial loads, making it suitable for continuous operation.

What Makes 2220-KM C/4 Bearing a Preferred Choice?
With its brass cage and chrome steel construction, 2220-KM C/4 Bearing offers durability in demanding environments such as mining equipment. The tapered bore provides a secure fit, reducing slippage and wear over time.

Perfect Fit for Automation: 2220-KM C/4 Bearing
In robotic arms and automated production lines, 2220-KM C/4 Bearing’s high dynamic load capacity ensures smooth movement. Its open design allows for easy lubrication, extending service life in high-speed applications.

Automotive vs Aerospace: Applications of 2220-KM C/4 Bearing
In automotive gearboxes, 2220-KM C/4 Bearing handles radial loads efficiently, while in aerospace, its precision supports auxiliary systems. The metric sizing ensures compatibility across various international standards.

Where to Use 2220-KM C/4 Bearing
For medical imaging devices, 2220-KM C/4 Bearing’s consistent performance is vital. Its temperature range and lubrication compatibility make it ideal for equipment requiring long-term reliability.
