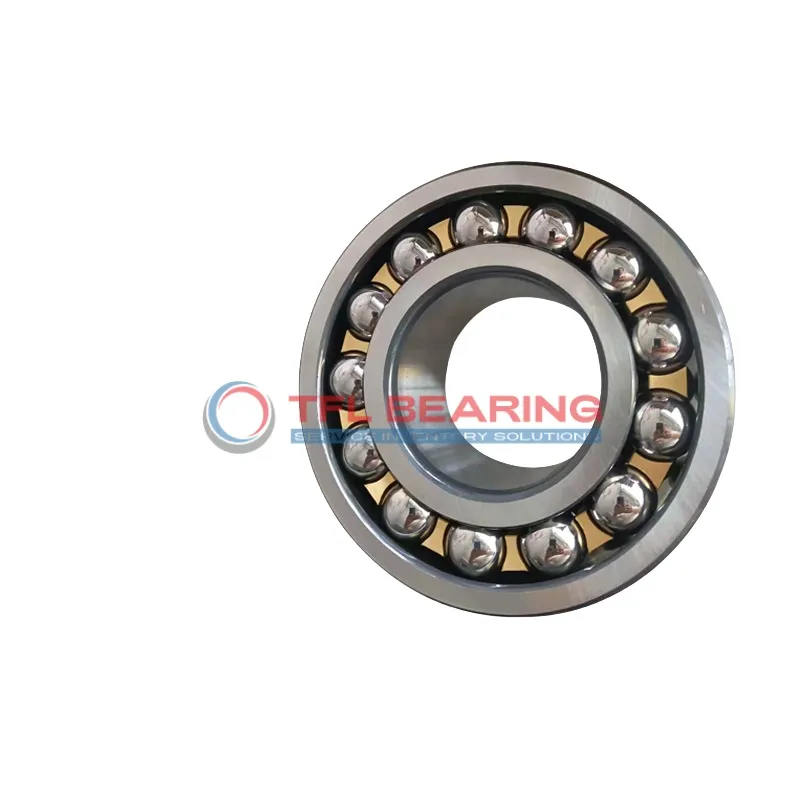

Self Aligning Ball Bearings 2219 M C/3

Brand: TFL Bearing Interchangeable: SKF 2219 M C/3 95 mm × 170 mm × 43 mm Metric Open
Part number: 2219 M C/3
Self Aligning Ball Bearings 2219 M C/3
In Stock
US$624.69 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia95 mm
Bore Dia Tolerance-0.02mm to 0
Outer Dia170 mm
Outer Dia Tolerance-0.025mm to 0
Width43 mm
Width Tolerance-0.2mm to 0
External Diameter On Inner Ring119.15 mm
Internal Diameter On Outer Ring148.7 mm
Chamfer Dimension2.1 mm
Performance
Dynamic Radial Load18,720 lbf
Static Radial Load7,762 lbf
Temperature Range-30° to 110 °C
Max Speed5,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeCylindrical
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceCN
Weight4.1 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2219 M C/3 is a self-aligning ball bearing with a 95mm bore and 170mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 18720 lbf and operates smoothly at speeds up to 5000 RPM.

Its double-row design and brass cage provide excellent durability and alignment flexibility, making it suitable for misaligned shafts. The open seal allows for easy lubrication and maintenance.

This bearing works well in temperatures ranging from -30°C to 110°C, ideal for industrial machinery or heavy equipment. It’s interchangeable with SKF bearings, offering a reliable replacement option.

Weighing 4.1kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Features

How Does 2219 M C/3 Bearing Reduce Friction?

2219 M C/3 Bearing features a double-row design with chrome steel rings and balls, ensuring smooth radial load distribution.
The brass cage maintains proper ball alignment, reducing friction and enhancing operational efficiency.
With a dynamic radial load capacity of 18720 lbf, it handles demanding applications with ease.
Its lubrication-ready design further minimises wear, extending service life.

Built for Reliability: 2219 M C/3 Bearing

2219 M C/3 Bearing is crafted from durable chrome steel, offering excellent resistance to wear and tear.
The cylindrical bore design ensures a secure fit, enhancing stability during operation.
It operates efficiently within a temperature range of -30° to 110°C, adapting to various environments.
With a maximum speed of 5,000 rpm, it delivers consistent performance under radial loads.

Why Choose 2219 M C/3 Bearing for Precision Tasks?

2219 M C/3 Bearing’s precise radial clearance (CN) ensures accurate performance in high-precision applications.
The double-row construction provides balanced load distribution, reducing vibration and noise.
Its brass cage and chrome steel components contribute to long-lasting reliability.
Weighing just 4.1 kg, it combines strength with manageable handling.

Engineered for Precision: 2219 M C/3 Bearing

2219 M C/3 Bearing’s chamfer dimension of 2.1 mm allows for easy installation and alignment.
The open seal type facilitates lubrication access, ensuring smooth operation over time.
Its static radial load capacity of 7762 lbf makes it suitable for steady, heavy-duty use.
The bearing’s compliance with RoHS and REACH standards highlights its environmental safety.

Application

Industrial Uses of 2219 M C/3 Bearing
2219 M C/3 Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its self-aligning feature helps compensate for shaft misalignment. The double-row design provides added stability, making it suitable for high-load applications.

In automotive applications, 2219 M C/3 Bearing can be found in transmission systems and wheel hubs, offering reliable performance under radial loads. Its brass cage ensures smooth operation even at moderate speeds.

For automation equipment, 2219 M C/3 Bearing is a practical choice for robotic arms and assembly lines, thanks to its ability to handle slight misalignments. The chrome steel construction adds durability in continuous operation scenarios.

Where Is 2219 M C/3 Bearing Used?
You’ll often spot 2219 M C/3 Bearing in industrial gearboxes, where its self-aligning capability reduces wear from shaft deflection. The lubricated design also helps maintain performance over long periods.

In household appliances like washing machines, 2219 M C/3 Bearing provides quiet and efficient operation. Its brass cage contributes to reduced friction, extending the bearing’s service life.
