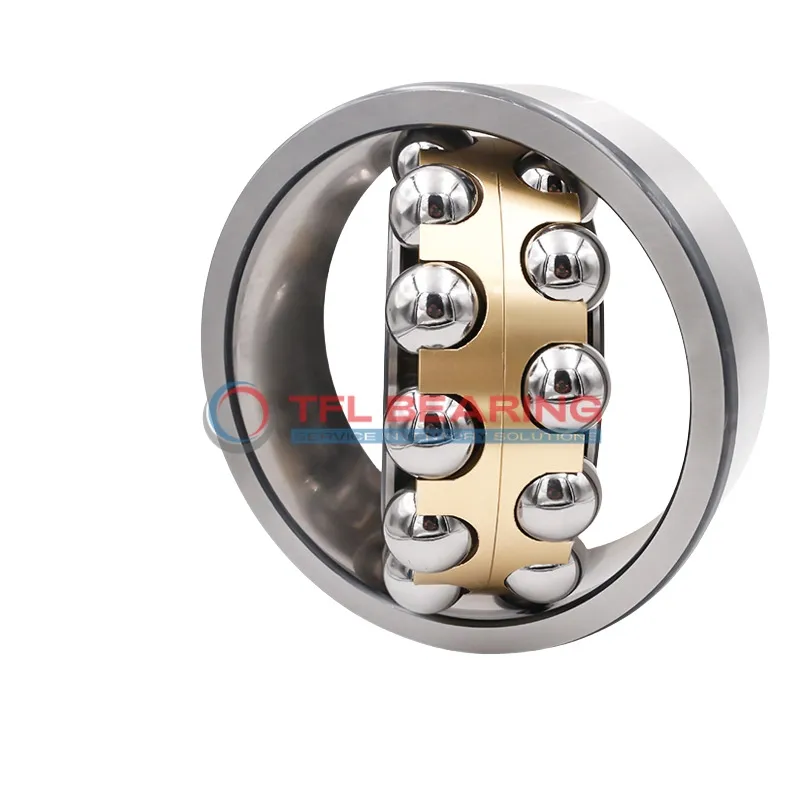

Self Aligning Ball Bearings 2219-K-M-C3

Brand: TFL Bearing Interchangeable: SKF 2219-K-M-C3 95 mm × 170 mm × 43 mm Metric Open
Part number: 2219-K-M-C3
Self Aligning Ball Bearings 2219-K-M-C3
In Stock
US$196.97 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia95 mm
Bore Dia Tolerance-0.02mm to 0
Outer Dia170 mm
Outer Dia Tolerance-0.025mm to 0
Width43 mm
Width Tolerance-0.2mm to 0
External Diameter On Inner Ring119.15 mm
Internal Diameter On Outer Ring148.7 mm
Chamfer Dimension2.1 mm
Performance
Dynamic Radial Load18,720 lbf
Static Radial Load7,762 lbf
Temperature Range-30° to 110 °C
Max Speed5,000 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceC3
Weight3.9 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2219-K-M-C3 is a self-aligning ball bearing with a 95mm tapered bore and 170mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 18720 lbf and operates smoothly at speeds up to 5000 RPM.

Its double-row design and brass cage provide durability, while the open seal allows for easy lubrication. The bearing works reliably in temperatures from -30°C to 110°C.

With a C3 radial clearance, it accommodates slight misalignments, making it suitable for heavy machinery or conveyor systems. The tapered bore ensures a secure fit on shafts.

Weighing 3.9kg, it’s robust yet manageable for industrial use. Compliant with RoHS and REACH standards, it’s a dependable choice for replacements, interchangeable with SKF bearings.

Features

Why Choose 2219-K-M-C3 Bearing for Precision Tasks?

2219-K-M-C3 Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity up to 18720 lbf.
Its brass cage maintains ball alignment, reducing friction and enhancing durability.
The tapered bore design allows for precise mounting, making it suitable for applications requiring accuracy.
With a maximum speed of 5,000 rpm, it offers reliable performance in various industrial settings.

Application

Industrial Uses of 2219-K-M-C3 Bearing
The 2219-K-M-C3 Bearing is commonly used in heavy machinery like conveyors and mixers, where its self-aligning feature compensates for minor misalignments. Its brass cage and chrome steel construction ensure durability in demanding industrial environments.

What Makes 2219-K-M-C3 Bearing a Preferred Choice?
In automotive applications, 2219-K-M-C3 Bearing handles radial loads in gearboxes and wheel hubs effectively. The tapered bore design provides a secure fit, reducing slippage during high-speed operations.

Built for Heavy-Duty Use: 2219-K-M-C3 Bearing
For automation systems, 2219-K-M-C3 Bearing supports robotic arms and assembly lines with smooth rotation. Its C3 radial clearance allows for thermal expansion, making it reliable in varying temperatures.

Medical vs Industrial: Where 2219-K-M-C3 Bearing Excels
While 2219-K-M-C3 Bearing is robust enough for industrial presses, its precision also suits medical imaging devices. The lubricated design ensures quiet operation, crucial for sensitive environments.

Perfect Fit for Automation: 2219-K-M-C3 Bearing
In 3D printers and CNC machines, 2219-K-M-C3 Bearing offers stable performance due to its double-row ball design. The metric sizing makes it easy to integrate into European and Asian equipment.
