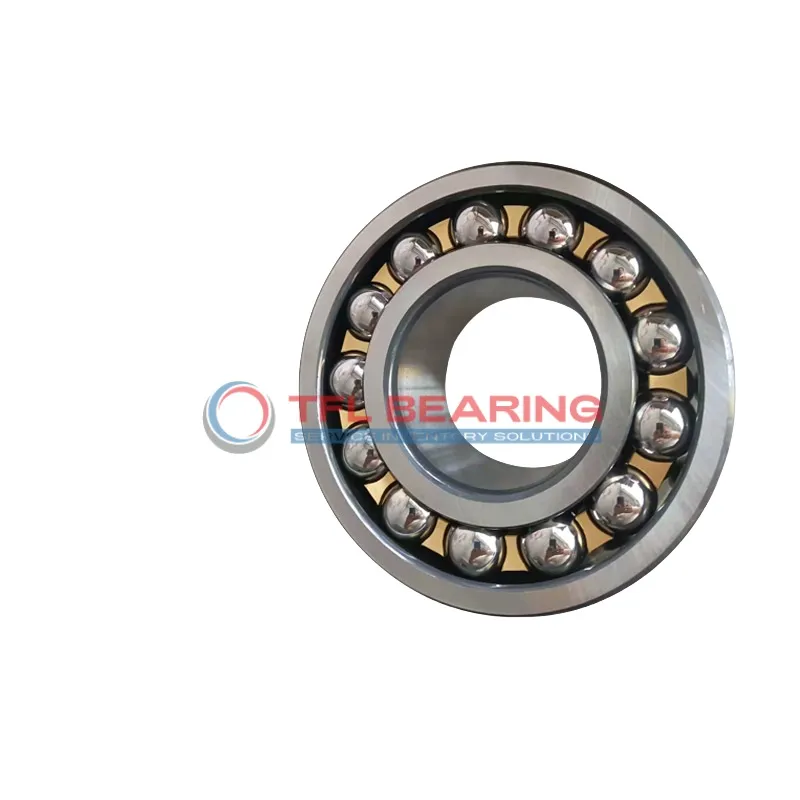

Self Aligning Ball Bearings 2218 KM/C3

Brand: TFL Bearing Interchangeable: SKF 2218 KM/C3 90 mm × 160 mm × 40 mm Metric Open
Part number: 2218 KM/C3
Self Aligning Ball Bearings 2218 KM/C3
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia90 mm
Bore Dia Tolerance-0.02mm to 0
Outer Dia160 mm
Outer Dia Tolerance-0.025mm to 0
Width40 mm
Width Tolerance-0.2mm to 0
External Diameter On Inner Ring112.6 mm
Internal Diameter On Outer Ring139.5 mm
Chamfer Dimension2 mm
Performance
Dynamic Radial Load15,795 lbf
Static Radial Load6,412 lbf
Temperature Range-30° to 110 °C
Max Speed5,300 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceC3
Weight3.4 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2218 KM/C3 is a self-aligning ball bearing with a 90mm tapered bore and 160mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 15795 lbf and operates smoothly at speeds up to 5300 RPM.

Its double-row design and brass cage provide reliable performance, while the open seal allows for easy lubrication. The bearing works in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for machinery with misalignment issues, such as conveyor systems or agricultural equipment.

Weighing 3.4kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Features

How Is 2218 KM/C3 Bearing Engineered for Reliability?

2218 KM/C3 Bearing features a double-row design with chrome steel rings and balls, ensuring strong radial load capacity.
Its dynamic radial load reaches 15795 lbf, making it suitable for heavy-duty applications.
The brass cage maintains ball alignment, reducing friction and enhancing durability.
With a maximum speed of 5,300 rpm, it offers reliable performance in various conditions.

Application

Industrial Uses of 2218 KM/C3 Bearing
2218 KM/C3 Bearing is commonly used in heavy machinery, such as conveyor systems and industrial fans, where its self-aligning feature compensates for minor misalignments. The double-row design ensures reliable performance under radial loads, making it suitable for demanding environments.

In automotive applications, 2218 KM/C3 Bearing can be found in gearboxes and drivetrains, where its tapered bore provides a secure fit. The brass cage enhances durability, ensuring smooth operation even under high-speed conditions.

For automation equipment, 2218 KM/C3 Bearing supports robotic arms and assembly lines, thanks to its ability to handle varying loads. The C3 radial clearance allows for thermal expansion, making it ideal for precision tasks.

Where Is 2218 KM/C3 Bearing Used?
2218 KM/C3 Bearing is often seen in wind turbines, where its self-aligning capability handles shaft deflections effectively. The chrome steel construction ensures long service life, even in harsh weather conditions.

In printing machinery, 2218 KM/C3 Bearing provides stable support for rollers, reducing vibration and improving print quality. The open seal design simplifies lubrication, maintaining optimal performance over time.

Built for Heavy-Duty Use: 2218 KM/C3 Bearing
2218 KM/C3 Bearing excels in mining equipment, where its robust design withstands heavy loads and abrasive conditions. The brass cage resists wear, extending the bearing’s lifespan in tough applications.

For agricultural machinery, 2218 KM/C3 Bearing handles the uneven loads typical in harvesters and tractors. Its self-aligning feature ensures smooth operation, even on rough terrain.

Automotive vs Aerospace: Applications of 2218 KM/C3 Bearing
In automotive systems, 2218 KM/C3 Bearing is used in transmissions, offering reliable performance under high torque. The tapered bore ensures a precise fit, reducing maintenance needs.

For aerospace applications, 2218 KM/C3 Bearing supports auxiliary systems, where its lightweight design and durability are crucial. The C3 clearance accommodates thermal changes during flight.
