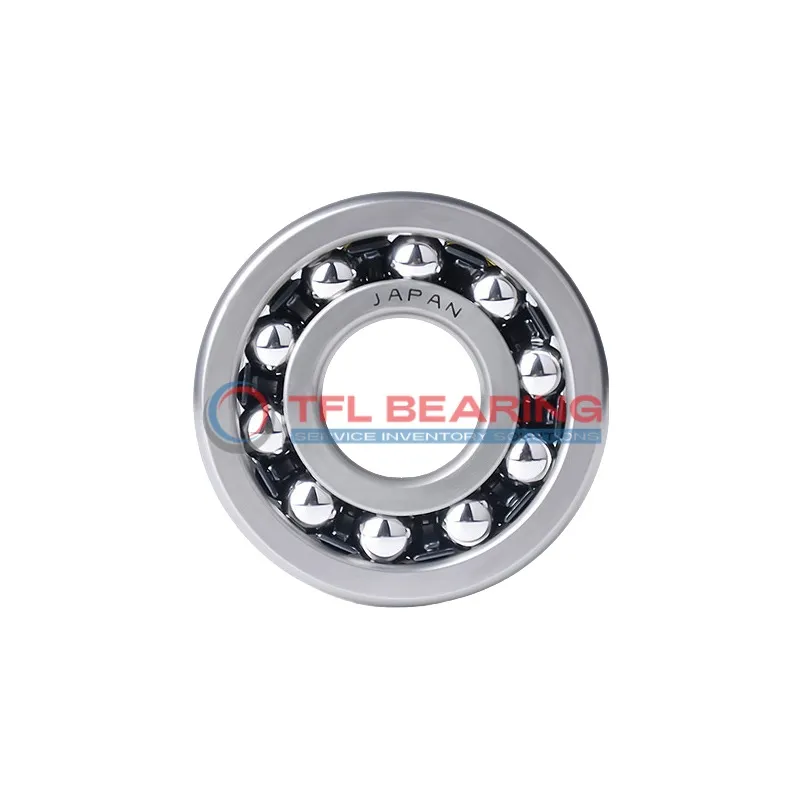

Self Aligning Ball Bearings 2217-K C/3

Self Aligning Ball Bearings 2217-K C/3

The 2217-K C/3 is a self-aligning ball bearing with an 85mm tapered bore and 150mm outer diameter, built from sturdy chrome steel. It manages radial loads up to 13162 lbf and runs smoothly at speeds up to 5600 RPM.

Its double-row design helps compensate for misalignment, while the open seal allows easy lubrication. The stainless steel cage adds durability, making it suitable for heavy-duty use.

This bearing operates well in temperatures from -30°C to 110°C and is interchangeable with SKF models. Ideal for machinery like conveyor systems or agricultural equipment where alignment flexibility is needed.

Weighing 2.5kg, it’s a robust choice for industrial applications. Compliant with RoHS and REACH standards for safe and reliable performance.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2217-K C/3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 36 mm
  • Width Tolerance -0.2mm to 0
  • External Diameter On Inner Ring 106 mm
  • Internal Diameter On Outer Ring 130.7 mm
  • Chamfer Dimension 2 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 13162 lbf
  • Static Radial Load 5310 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5600 rpm
  • Weight 2.5 kg
  • Price（$） 401.57
Self Aligning Ball Bearings 2217-K C/3 dimension drawing
Download DWG Download PDF

Features

How Does 2217-K C/3 Bearing Ensure Smooth Radial Load Handling?

2217-K C/3 Bearing features a double-row design with chrome steel rings and balls, optimised for radial load distribution.

Its dynamic radial load capacity of 13162 lbf ensures reliable performance in various industrial applications.

The stainless steel cage maintains ball alignment, reducing friction and extending operational life.

With a maximum speed of 5,600 rpm, it offers a balance of durability and efficiency for demanding environments.

Application

Industrial Uses of 2217-K C/3 Bearing
The 2217-K C/3 Bearing is commonly used in heavy machinery, such as conveyor systems and industrial fans, where its self-aligning feature compensates for minor misalignments. Its double-row design ensures stable performance under radial loads, making it suitable for demanding environments.

In automotive applications, 2217-K C/3 Bearing fits well in gearboxes and drivetrains, providing smooth operation even under varying load conditions. The taper bore design allows for secure mounting, enhancing reliability in high-vibration settings.

For automation equipment, 2217-K C/3 Bearing’s open construction facilitates easy lubrication, extending service life in robotic arms and assembly lines. The chrome steel rings and stainless steel cage offer durability in continuous operation.

Where Is 2217-K C/3 Bearing Used?
You’ll find 2217-K C/3 Bearing in agricultural machinery, like tractors and harvesters, where its ability to handle misalignment is a big advantage. The robust construction also makes it a reliable choice for dusty or humid conditions.

In construction equipment, 2217-K C/3 Bearing supports radial loads in cranes and excavators, ensuring consistent performance. The metric sizing ensures compatibility with a wide range of machinery, simplifying maintenance and replacements.
