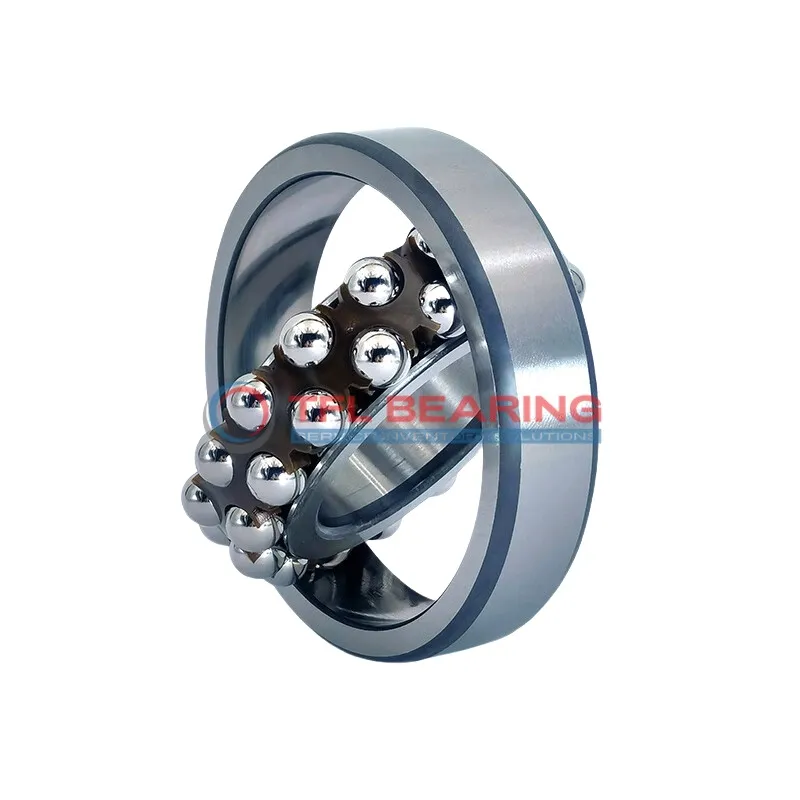

Self Aligning Ball Bearings 2216-TVH

Self Aligning Ball Bearings 2216-TVH

The 2216-TVH is a self-aligning ball bearing with an 80mm bore and 140mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 14625 lbf and operates smoothly at speeds reaching 6000 RPM.

Its double-row design and open seal allow for easy lubrication and maintenance, while the nylon cage reduces friction for quieter performance. The bearing functions reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for machinery requiring alignment flexibility, such as conveyor systems or agricultural equipment.

Weighing 1.9kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe and dependable option for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2216-TVH
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 80 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 140 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 33 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 99 mm
  • Internal Diameter On Outer Ring 125.2 mm
  • Chamfer Dimension 2 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 14625 lbf
  • Static Radial Load 5738 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 6000 rpm
  • Weight 1.9 kg
  • Price（$） 215.48
Self Aligning Ball Bearings 2216-TVH dimension drawing
Download DWG Download PDF

Features

Performance Features of 2216-TVH Bearing

2216-TVH Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 14625 lbf, making it suitable for heavy-duty applications.

The double-row design ensures smooth operation and better load distribution.
Nylon cage material reduces friction and noise, enhancing performance in various conditions.

With a maximum speed of 6,000 rpm, it balances durability and efficiency.
The open seal type allows for easy lubrication, maintaining optimal performance over time.

2216-TVH Bearing operates reliably in temperatures from -30° to 110°C.
Its precision engineering ensures long service life with minimal maintenance required.

Application

Industrial Uses of 2216-TVH Bearing
2216-TVH Bearing is commonly used in conveyor systems, where its self-aligning feature compensates for minor misalignments. The double-row design provides excellent radial load capacity, making it suitable for heavy industrial environments.

Where Is 2216-TVH Bearing Used?
You’ll often find 2216-TVH Bearing in agricultural machinery, such as harvesters and tractors, where it handles uneven loads with ease. Its nylon cage reduces friction, ensuring smoother operation in dusty conditions.

Built for Heavy-Duty Use: 2216-TVH Bearing
2216-TVH Bearing excels in mining equipment, where its chrome steel construction withstands harsh conditions. The open seal design allows for easy relubrication, extending its service life.

Automotive vs Aerospace: Applications of 2216-TVH Bearing
In automotive applications, 2216-TVH Bearing supports gearboxes and drivetrains, offering reliable performance. For aerospace, its precision and durability make it a trusted choice in auxiliary systems.

Perfect Fit for Automation: 2216-TVH Bearing
2216-TVH Bearing is ideal for robotic arms, where its self-aligning capability ensures precise movement. The lubricated design reduces maintenance needs, keeping automation lines running smoothly.
