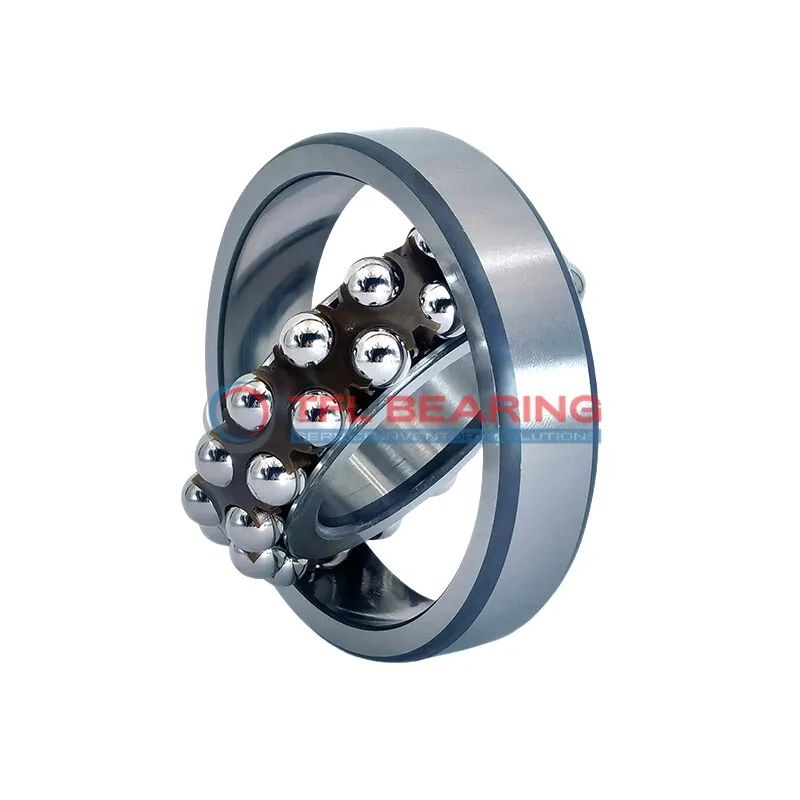

Self Aligning Ball Bearings 2216-K C/5

Self Aligning Ball Bearings 2216-K C/5

The 2216-K C/5 is a self-aligning ball bearing with an 80mm tapered bore and 140mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 14625 lbf and operates smoothly at speeds up to 6000 RPM.

Its double-row design and nylon cage help reduce friction, while the open seal allows for easy lubrication. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for machinery where misalignment or radial loads are common, such as conveyor systems or agricultural equipment.

Weighing 1.9kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2216-K C/5
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 80 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 140 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 33 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 99 mm
  • Internal Diameter On Outer Ring 125.2 mm
  • Chamfer Dimension 2 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Taper 1:12
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 14625 lbf
  • Static Radial Load 5738 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 6000 rpm
  • Weight 1.9 kg
  • Price（$） 236.33
Self Aligning Ball Bearings 2216-K C/5 dimension drawing
Download DWG Download PDF

Features

How Is 2216-K C/5 Bearing Engineered for Reliability?

2216-K C/5 Bearing features a double-row design with chrome steel rings and balls, offering strong radial load capacity.
Its dynamic radial load reaches 14625 lbf, making it suitable for demanding applications.
The nylon cage ensures smooth operation and reduces friction, enhancing longevity.
With a maximum speed of 6,000 rpm, it balances performance and durability in various conditions.

Application

Industrial Uses of 2216-K C/5 Bearing
2216-K C/5 Bearing is commonly used in heavy machinery, such as conveyor systems and industrial fans, where its self-aligning feature compensates for minor misalignments. The double-row design ensures reliable performance under radial loads, making it suitable for demanding environments.

What Makes 2216-K C/5 Bearing a Preferred Choice?
In automotive applications, 2216-K C/5 Bearing is often found in gearboxes and drivetrains, where its tapered bore provides a secure fit. The chrome steel construction offers durability, while the nylon cage reduces friction for smoother operation.

Perfect Fit for Automation: 2216-K C/5 Bearing
For robotic arms and automated production lines, 2216-K C/5 Bearing provides precise movement with minimal maintenance. Its open design allows for easy lubrication, ensuring long service life in high-speed applications.

Medical vs Industrial: Where 2216-K C/5 Bearing Excels
In medical imaging devices, 2216-K C/5 Bearing’s consistent performance and low noise are crucial for accurate diagnostics. Meanwhile, in industrial settings, its robust design handles heavy loads without compromising efficiency.
