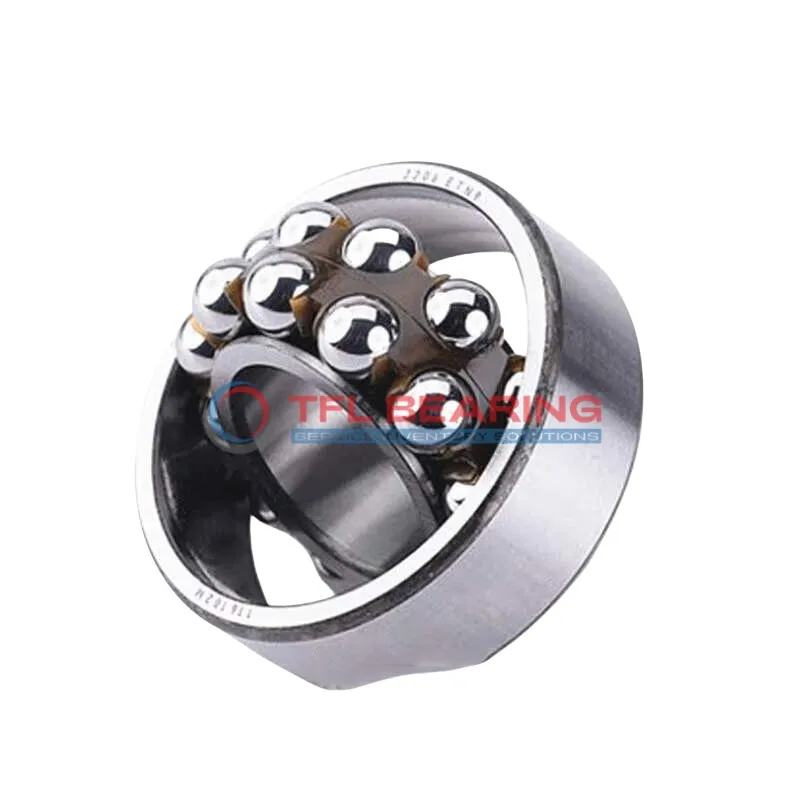

Self Aligning Ball Bearings 2213ETN

Self Aligning Ball Bearings 2213ETN

The 2213ETN is a self-aligning ball bearing with a 65mm bore and 120mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 7898 lbf and operates smoothly at speeds up to 3600 RPM.

Its double-row design and sealed construction help it handle misalignment while keeping dirt out. The nylon cage reduces friction, making it quieter and more efficient.

Pre-lubricated for easy use, it works in temperatures from -30°C to 110°C. Ideal for machinery with shaft deflection, like conveyor systems or agricultural equipment.

Weighing 1.35kg, it’s robust yet manageable. Compliant with RoHS and REACH standards, it’s a reliable choice for replacements, especially as it’s interchangeable with SKF models.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2213ETN
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 120 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 31 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 79.3 mm
  • Internal Diameter On Outer Ring 105.8 mm
  • Chamfer Dimension 1.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 7898 lbf
  • Static Radial Load 3150 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 3600 rpm
  • Weight 1.35 kg
Self Aligning Ball Bearings 2213ETN dimension drawing
Download DWG Download PDF

Features

Why Choose 2213ETN Bearing for Precision Tasks?

2213ETN Bearing features a double-row ball design, ensuring smooth radial load distribution for precise operations.
Its chrome steel rings and balls enhance durability, while the nylon cage reduces friction and noise.

With a dynamic radial load capacity of 7898 lbf, 2213ETN Bearing handles demanding applications reliably.
The sealed construction keeps lubrication intact, extending maintenance intervals.

2213ETN Bearing operates efficiently within a temperature range of -30° to 110°C, suitable for varied environments.
Its cylindrical bore design simplifies installation, saving time and effort.

Application

Industrial Uses of 2213ETN Bearing
2213ETN Bearing is commonly used in industrial machinery like conveyor systems and mixers, where its self-aligning feature helps compensate for minor misalignments. The sealed design keeps contaminants out, ensuring longer service life in dusty environments.

What Makes 2213ETN Bearing a Preferred Choice?
In automotive applications, 2213ETN Bearing is found in gearboxes and wheel hubs, where its double-row construction handles radial loads efficiently. The nylon cage reduces friction, making it suitable for high-speed operations.

Perfect Fit for Automation: 2213ETN Bearing
For robotic arms and automated assembly lines, 2213ETN Bearing offers smooth movement thanks to its chrome steel balls and precise tolerances. Its lubricated design ensures consistent performance with minimal maintenance.

Medical vs Industrial: Where 2213ETN Bearing Excels
While 2213ETN Bearing performs well in industrial pumps, it’s also reliable in medical devices like centrifuges, where quiet operation is essential. The temperature range of -30° to 110°C makes it versatile for various settings.
