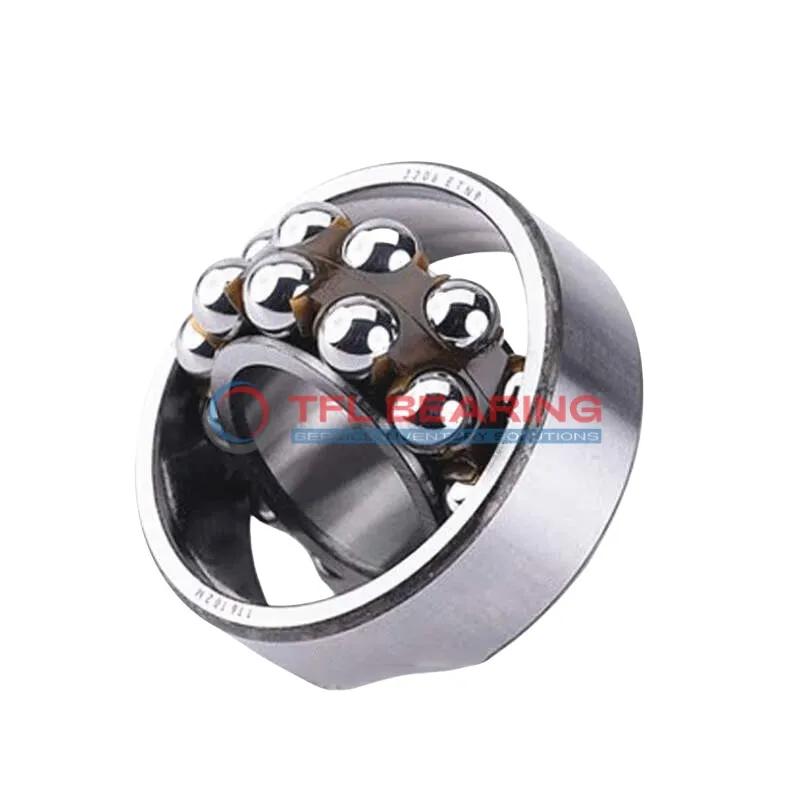

Self Aligning Ball Bearings 2213C3

Self Aligning Ball Bearings 2213C3

The 2213C3 is a self-aligning ball bearing with a 65mm bore and 120mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 7898 lbf and runs smoothly at speeds up to 3600 RPM.

Its double-row design and sealed construction help it stay aligned and protected from dust, while the nylon cage reduces noise. The bearing operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a reliable alternative for replacements. Suitable for applications like conveyor systems or agricultural machinery where misalignment might occur.

Weighing 1.35kg, it’s robust yet easy to handle. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2213C3
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 120 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 31 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 79.3 mm
  • Internal Diameter On Outer Ring 105.8 mm
  • Chamfer Dimension 1.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 7898 lbf
  • Static Radial Load 3150 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance C3
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 3600 rpm
  • Weight 1.35 kg
  • Price（$） 93.58
Self Aligning Ball Bearings 2213C3 dimension drawing
Download DWG Download PDF

Features

Why Choose 2213C3 Bearing for Precision Tasks?

2213C3 Bearing features a double-row design with chrome steel rings and balls, ensuring precise radial load handling.
Its dynamic radial load capacity of 7898 lbf makes it suitable for demanding industrial applications.

The sealed construction and nylon cage reduce friction, enhancing smooth operation and longevity.
With a maximum speed of 3,600 rpm, it balances performance and durability in various conditions.

2213C3 Bearing operates efficiently within a temperature range of -30° to 110°C, adapting to diverse environments.
Its C3 radial clearance ensures optimal performance under varying load conditions.

Application

Industrial Uses of 2213C3 Bearing
2213C3 Bearing is commonly used in heavy machinery like conveyors and mixers, where its self-aligning feature compensates for shaft misalignment. The sealed design keeps contaminants out, extending service life in dusty environments.

Where Is 2213C3 Bearing Used?
In automotive applications, 2213C3 Bearing fits well in wheel hubs and transmissions, handling radial loads smoothly. Its nylon cage reduces friction, making it quieter for passenger vehicles.

Built for Heavy-Duty Use: 2213C3 Bearing
This bearing excels in industrial fans and pumps, thanks to its double-row construction for higher load capacity. The C3 clearance ensures reliable performance under thermal expansion.

Automotive vs Aerospace: Applications of 2213C3 Bearing
While 2213C3 Bearing suits car suspensions, its precision also benefits aerospace actuators. The chrome steel rings withstand high stress in both fields.

Perfect Fit for Automation: 2213C3 Bearing
In robotic arms, 2213C3 Bearing offers smooth rotation with minimal maintenance. The lubricated design ensures consistent operation in automated assembly lines.
