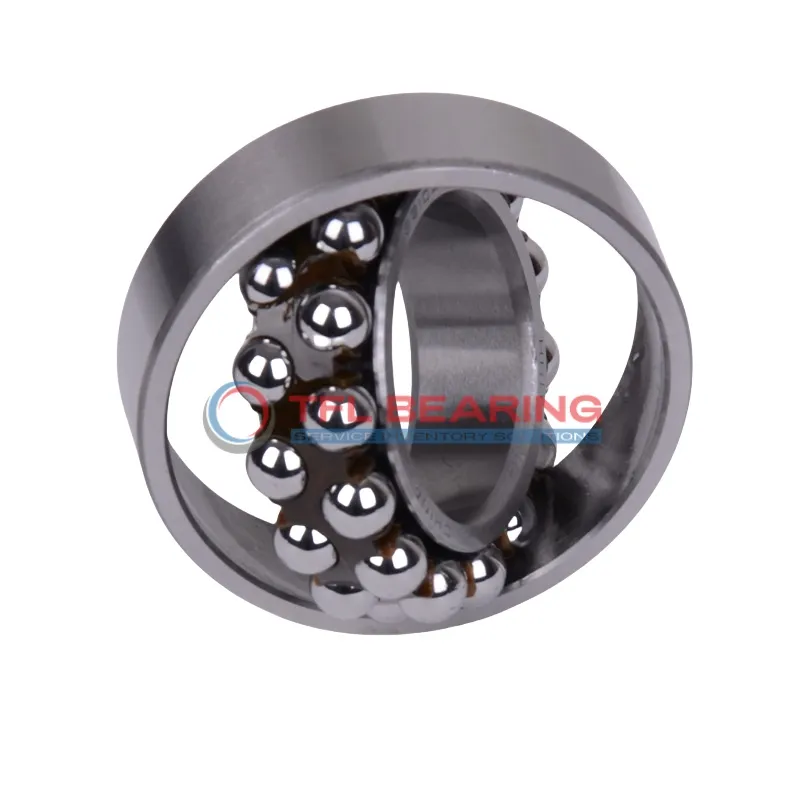

Self Aligning Ball Bearings 2212 ETN9/W64

Self Aligning Ball Bearings 2212 ETN9/W64

The 2212 ETN9/W64 is a self-aligning ball bearing with a 60mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 10980 lbf and operates smoothly at speeds up to 8000 RPM.

Its double-row design and nylon cage help it handle misalignment while reducing friction. The open seal allows for easy lubrication, and it works in temperatures from -30°C to 110°C.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. It’s well-suited for applications like conveyor systems or agricultural machinery where alignment adjustments are needed.

Weighing 1.1kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2212 ETN9/W64
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 28 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 74.45 mm
  • Internal Diameter On Outer Ring 96.9 mm
  • Chamfer Dimension 1.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 10980 lbf
  • Static Radial Load 3825 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 8000 rpm
  • Weight 1.1 kg
Self Aligning Ball Bearings 2212 ETN9/W64 dimension drawing
Download DWG Download PDF

Features

How Does 2212 ETN9/W64 Bearing Reduce Friction?

2212 ETN9/W64 Bearing features a double-row ball design, which helps distribute radial loads evenly and reduces friction.
The chrome steel rings and balls ensure smooth operation, even under high dynamic radial loads of up to 10980 lbf.
Its nylon cage minimises contact friction, contributing to quieter performance and longer life.
With a maximum speed of 8,000 rpm, it offers reliable efficiency in various applications.

Application

Common Applications of 2212 ETN9/W64 Bearing
In industrial settings, 2212 ETN9/W64 Bearing is commonly used in conveyor systems and fans, where its self-aligning feature compensates for minor misalignments. The double-row design ensures stable performance under radial loads.

Where Is 2212 ETN9/W64 Bearing Used?
You’ll find 2212 ETN9/W64 Bearing in automotive applications like electric motors and pumps, thanks to its reliable radial load capacity. The nylon cage reduces friction, making it suitable for high-speed operations.

Ideal for Precision: 2212 ETN9/W64 Bearing
For medical devices such as diagnostic equipment, 2212 ETN9/W64 Bearing offers smooth and quiet operation. Its chrome steel construction ensures durability in critical environments.

Automotive vs Aerospace: Applications of 2212 ETN9/W64 Bearing
In automotive systems, 2212 ETN9/W64 Bearing handles radial loads in gearboxes, while in aerospace, it supports auxiliary equipment. The metric sizing ensures compatibility across industries.

Practical Applications of 2212 ETN9/W64 Bearing
In robotics and automation, 2212 ETN9/W64 Bearing is used in joints and pivots for its self-aligning capability. The lubricated design minimises maintenance needs.
