Self Aligning Ball Bearings 2211 ETN9/W64

Self Aligning Ball Bearings 2211 ETN9/W64

The 2211 ETN9/W64 is a self-aligning ball bearing with a 55mm bore and 100mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 8775 lbf and operates smoothly at speeds up to 8500 RPM.

Its double-row design and open construction allow for easy alignment adjustments, while the nylon cage reduces friction for quieter performance. The bearing is pre-lubricated and works in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Suitable for machinery where misalignment or radial loads are common, such as conveyor systems or agricultural equipment.

Weighing 0.81kg, it balances durability with manageable size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2211 ETN9/W64
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 55 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 25 mm
  • Width Tolerance -0.15mm to 0
  • External Diameter On Inner Ring 67.71 mm
  • Internal Diameter On Outer Ring 87.8 mm
  • Chamfer Dimension 1.5 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 8775 lbf
  • Static Radial Load 3015 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 8500 rpm
  • Weight 0.81 kg

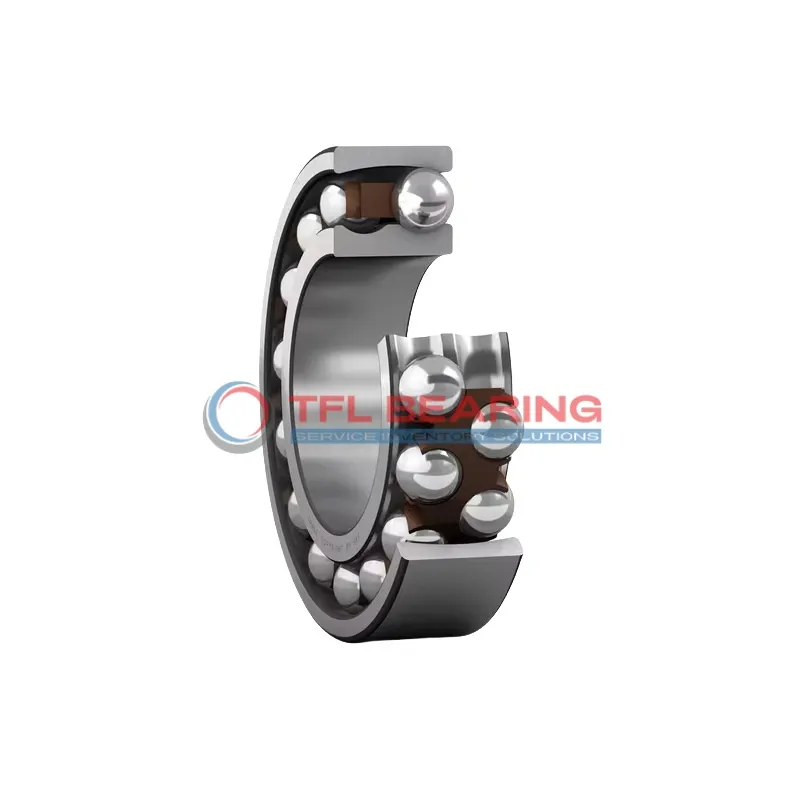

Self Aligning Ball Bearings 2211 ETN9/W64 dimension drawing
Download DWG Download PDF

Features

Why Choose 2211 ETN9/W64 Bearing for Precision Tasks?

2211 ETN9/W64 Bearing features a double-row design with chrome steel rings and balls, ensuring precise radial load handling.
Its dynamic radial load capacity of 8775 lbf makes it suitable for high-performance applications.
The nylon cage reduces friction and noise, enhancing smooth operation.
With a maximum speed of 8,500 rpm, it offers reliable performance in various conditions.

Application

Key Fields for 2211 ETN9/W64 Bearing
2211 ETN9/W64 Bearing is commonly used in industrial machinery, such as conveyor systems and pumps, where its self-aligning feature compensates for minor misalignments. The double-row design ensures reliable performance under radial loads in demanding environments.

In automotive applications, 2211 ETN9/W64 Bearing can be found in gearboxes and drivetrains, providing smooth operation even under varying loads. Its metric sizing makes it a versatile choice for both European and Asian vehicle models.

For automation equipment, 2211 ETN9/W64 Bearing supports robotic arms and assembly lines, where precision and durability are essential. The nylon cage reduces friction, enhancing efficiency in high-speed operations.

In household appliances like washing machines, 2211 ETN9/W64 Bearing ensures quiet and efficient performance. The chrome steel construction offers long-lasting reliability for everyday use.

Medical devices such as diagnostic equipment benefit from 2211 ETN9/W64 Bearing’s consistent performance. Its lubricated design ensures smooth operation, critical for accurate readings in sensitive applications.
