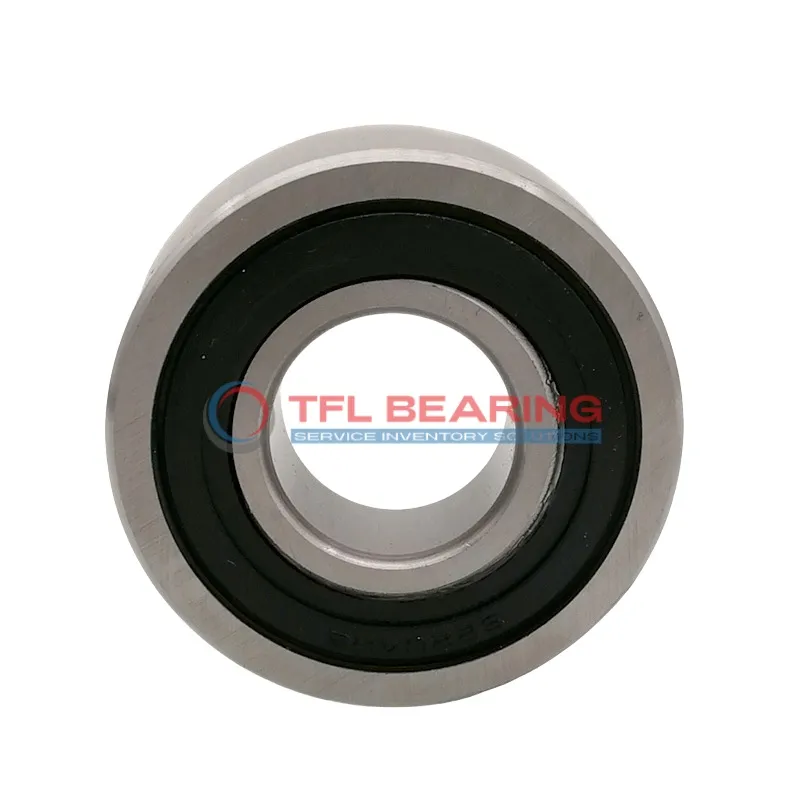

Self Aligning Ball Bearings 2210-2RS-TVH

Self Aligning Ball Bearings 2210-2RS-TVH

The 2210-2RS-TVH is a self-aligning ball bearing with a 50mm bore and 90mm outer diameter, compact at just 23mm wide. Made from chrome steel, it handles radial loads up to 5152 lbf and runs smoothly at 4800 RPM.

Its double-row design and sealed construction keep dirt out and lubrication in, reducing maintenance needs. The nylon cage ensures quiet operation and long service life.

This bearing works in temperatures from -30°C to 110°C and is interchangeable with SKF models for easy replacement. Ideal for applications like conveyor systems or agricultural machinery where misalignment can occur.

Weighing 0.57kg, it’s a sturdy yet manageable choice for industrial use. Compliant with RoHS and REACH standards for safety and environmental care.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2210-2RS-TVH
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 23 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 57.7 mm
  • Internal Diameter On Outer Ring 79.4 mm
  • Chamfer Dimension 1.1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 5152 lbf
  • Static Radial Load 1834 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 4800 rpm
  • Weight 0.57 kg
  • Price（$） 58.12
Self Aligning Ball Bearings 2210-2RS-TVH dimension drawing
Download DWG Download PDF

Features

Why Choose 2210-2RS-TVH Bearing for Precision Tasks?

2210-2RS-TVH Bearing features a double-row design with chrome steel rings and balls, ensuring reliable radial load handling.
Its dynamic radial load capacity of 5152 lbf makes it suitable for demanding applications.
The sealed construction and nylon cage help maintain smooth operation while reducing contamination risks.
With a maximum speed of 4,800 rpm, it offers a balance of performance and durability.

Application

Industrial Uses of 2210-2RS-TVH Bearing
2210-2RS-TVH Bearing is commonly used in industrial machinery like conveyor systems and mixers, where its self-aligning feature compensates for minor misalignments. The sealed design keeps contaminants out, ensuring long service life even in dusty environments.

What Makes 2210-2RS-TVH Bearing a Preferred Choice?
In automotive applications, 2210-2RS-TVH Bearing fits well in wheel hubs and transmissions, thanks to its double-row construction handling radial loads efficiently. The nylon cage reduces friction, making it quieter for passenger vehicles.

Perfect Fit for Automation: 2210-2RS-TVH Bearing
For robotic arms and automated assembly lines, 2210-2RS-TVH Bearing offers smooth movement with its lubricated design. The chrome steel balls provide consistent performance under repetitive motions.

Medical vs Industrial: Where 2210-2RS-TVH Bearing Excels
In medical devices like MRI scanners, 2210-2RS-TVH Bearing’s precision ensures quiet operation, while in industrial pumps, its durability handles continuous use. The temperature range suits both sterile and harsh environments.

Where Is 2210-2RS-TVH Bearing Used?
You’ll find 2210-2RS-TVH Bearing in household appliances like washing machines, where its sealed construction resists water and detergent. The metric sizing makes it easy to replace in European-made models.
